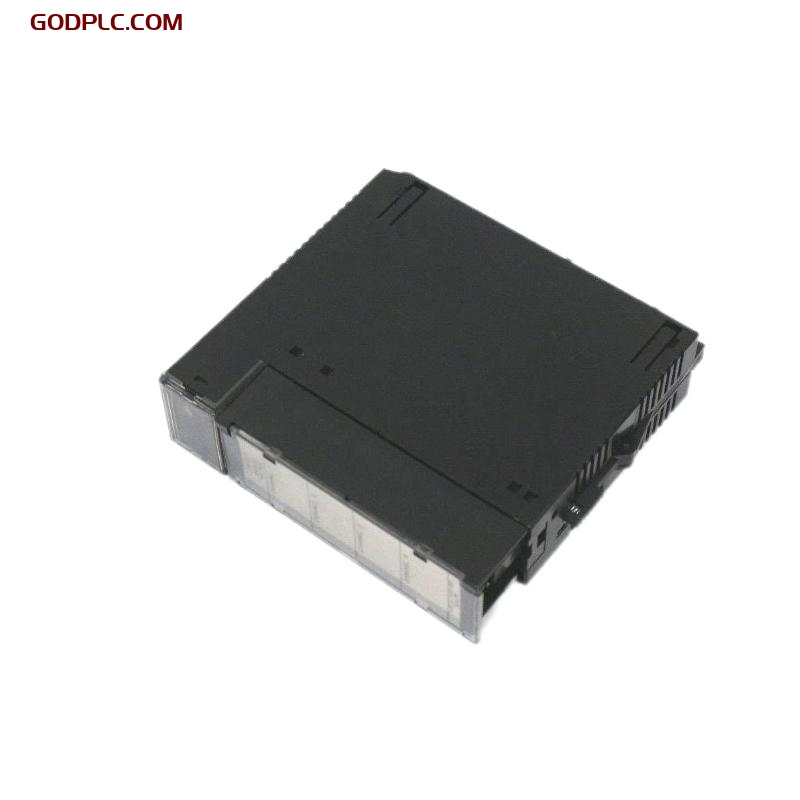

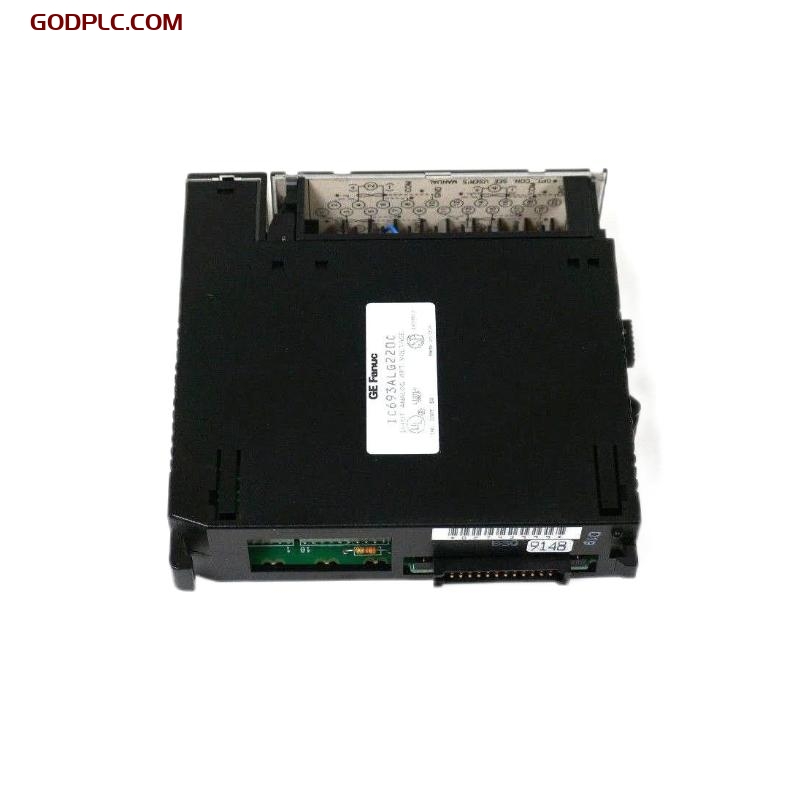

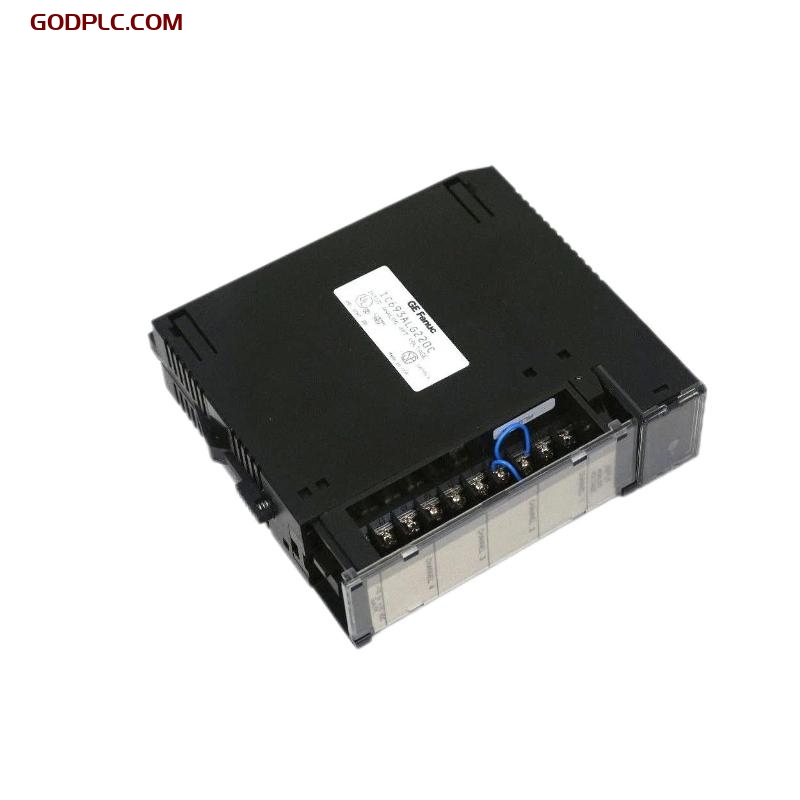

GE Fanuc IC693ALG220 Analog Input Modules
Product Overview
The GE Fanuc IC693ALG220 is a 4-channel analog input module designed for the Series 90-30 PLC system. It allows the programmable logic controller to receive and process analog voltage or current signals from field devices such as sensors and transmitters. With 12-bit resolution and multiple input ranges, the module provides accurate and flexible signal acquisition for industrial automation and process control applications.
Key Features
-
4-Channel Analog Input – Supports up to four single-ended analog input channels
-
12-Bit Resolution – Provides precise measurement of analog signals for critical control processes
-
Selectable Input Ranges – Accepts both voltage (0–10 VDC) and current (4–20 mA) inputs
-
Channel Isolation – Offers electrical isolation between the analog inputs and the PLC backplane
-
LED Indicators – Onboard diagnostics for module status and input activity
-
Compatible with Series 90-30 – Seamlessly integrates into GE Fanuc PLC systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 40 x 100 mm |
| Weight | 0.25 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 4 single-ended analog inputs |
| Input Ranges | 0–10 VDC, 4–20 mA (software configurable) |
| Resolution | 12 bits |
| Input Impedance | 10 kΩ (voltage), 250 Ω (current) |
| Accuracy | ±0.5% of full scale |
| Update Rate | 10 ms per channel |
| Power Requirements | 60 mA @ 5 VDC (from PLC backplane) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when mounted in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible PLCs | GE Fanuc Series 90-30 |
| Module Type | Baseplate-mounted, standard I/O slot |
| Configuration Tool | VersaPro, Proficy Machine Edition (ME) |
Industry Applications
-
Process Control – Used to read analog values from pressure, flow, and temperature transmitters
-
Water & Wastewater – Monitors continuous-level and flow sensors in treatment systems
-
HVAC Systems – Captures analog signals from thermostats and VFDs
-
Food & Beverage – Collects temperature and weight sensor data for production line control
-
Power & Utilities – Gathers analog telemetry from distributed power systems and substations
The GE Fanuc IC693ALG220 Analog Input Module is an essential solution for precise and reliable analog data acquisition in the Series 90-30 control platform. Its flexible configuration and high accuracy make it ideal for demanding industrial environments.
GE Fanuc IC693ALG220 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
