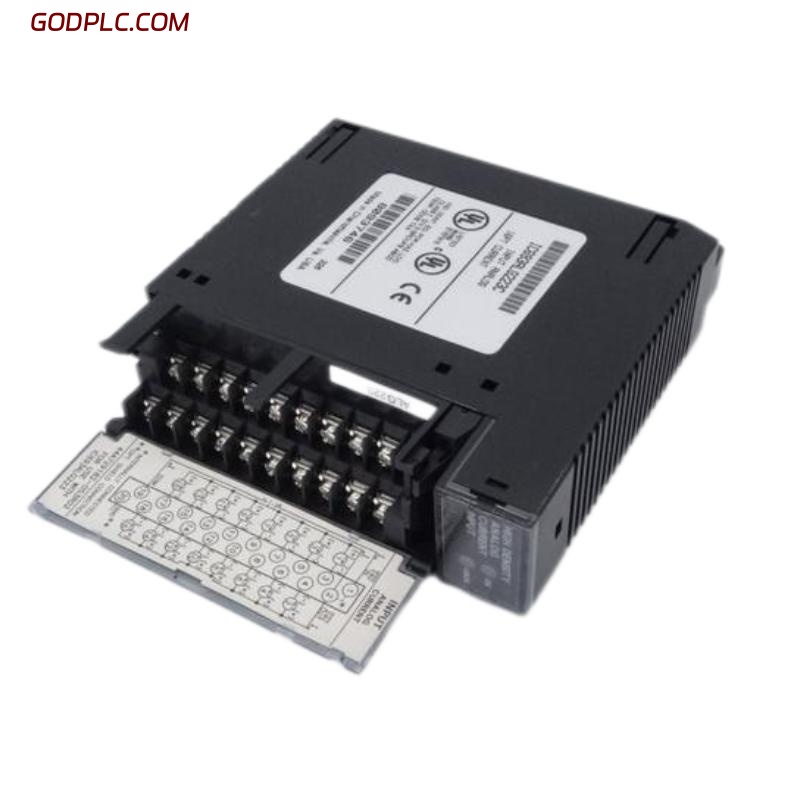

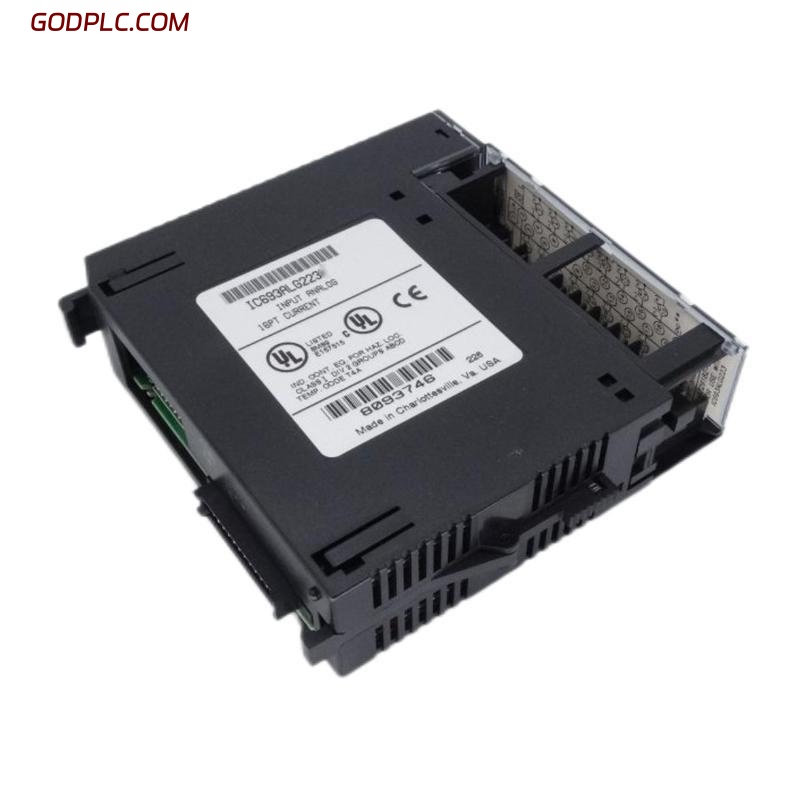

GE Fanuc IC693ALG223 Analog Input Module
Product Overview
The GE Fanuc IC693ALG223 is an 8-channel analog input module designed for the GE Series 90-30 PLC platform, enabling high-density analog signal monitoring in industrial automation systems. It supports current and voltage input signals and converts them into digital data for processing by the PLC CPU. Designed for applications requiring numerous sensor inputs, the module delivers reliable and accurate performance in demanding environments such as manufacturing, utilities, and process industries.
Key Features
-
8 Analog Input Channels – Supports high-density analog signal acquisition for efficient system scaling
-
Current Signal Input – Accepts standard 4–20 mA signals, commonly used in industrial instrumentation
-
12-bit Resolution – Provides accurate digital representation of analog signals
-
Multiplexed Input Design – Sequential scanning reduces module footprint and wiring complexity
-
Diagnostic Feedback – Includes fault detection and system health reporting for improved maintenance
-
Channel Isolation – Opto-isolated inputs for improved signal integrity and protection
-
Compact and Stackable – Integrates easily within Series 90-30 PLC racks without excessive space requirements
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 51 x 127 x 127 mm |
| Weight | 0.458 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 8 |
| Input Range | 4–20 mA |
| Resolution | 12 bits |
| Input Impedance | 250 Ω |
| Accuracy | ±0.5% of full scale |
| Isolation | 1500 V RMS (field to logic) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when mounted) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | GE Fanuc Series 90-30 PLC |
| Compatible CPUs | All Series 90-30 CPU models |
| Module Type | Analog Input |
Industry Applications
-
Industrial Automation – Captures analog feedback from a variety of sensors and transducers
-
Utilities and Energy – Monitors analog signals from meters and transformers for grid management
-
Water and Wastewater – Collects multiple flow, pressure, and level readings from treatment systems
-
Manufacturing Lines – Enables dense sensor integration for machine condition and process monitoring
-
Oil and Gas – Acquires analog data from field instruments in refineries and remote facilities
The GE Fanuc IC693ALG223 Analog Input Module is a versatile and efficient solution for high-channel-count analog signal acquisition. Its robust design, high resolution, and Series 90-30 compatibility make it a preferred choice for engineers seeking reliable data acquisition in complex control environments.
