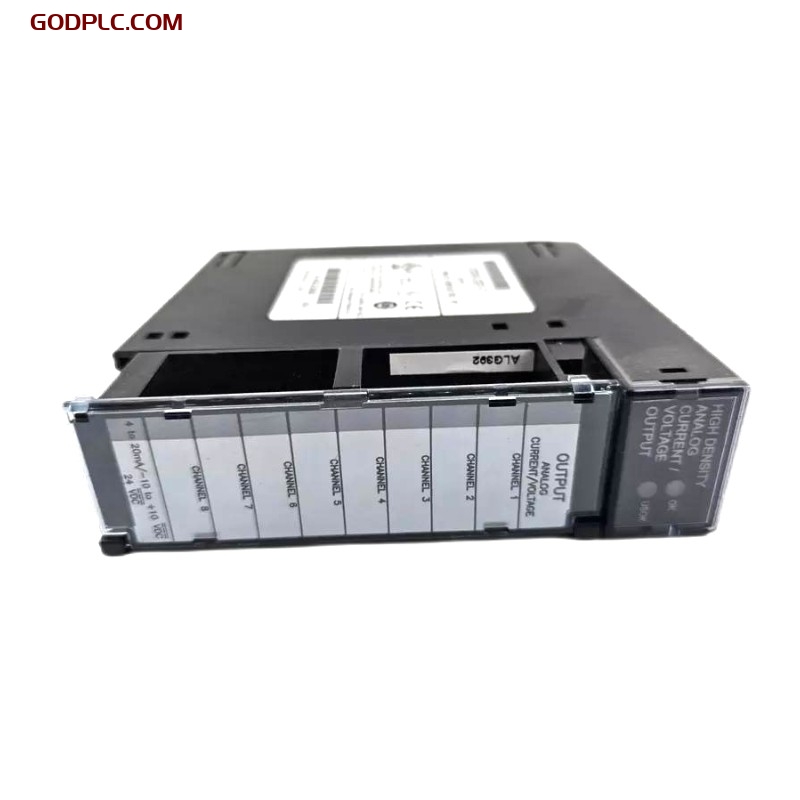

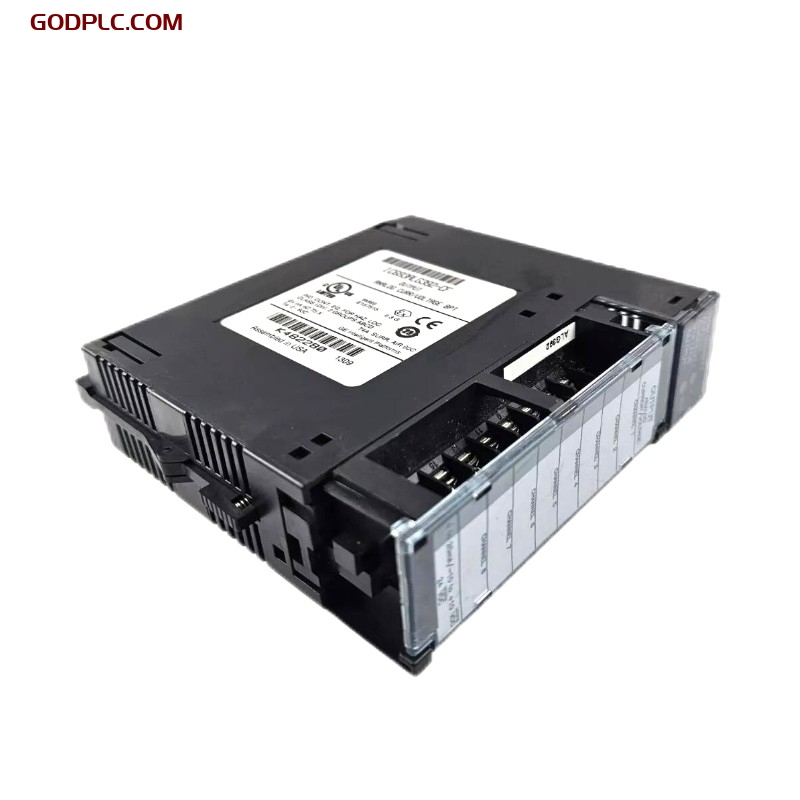

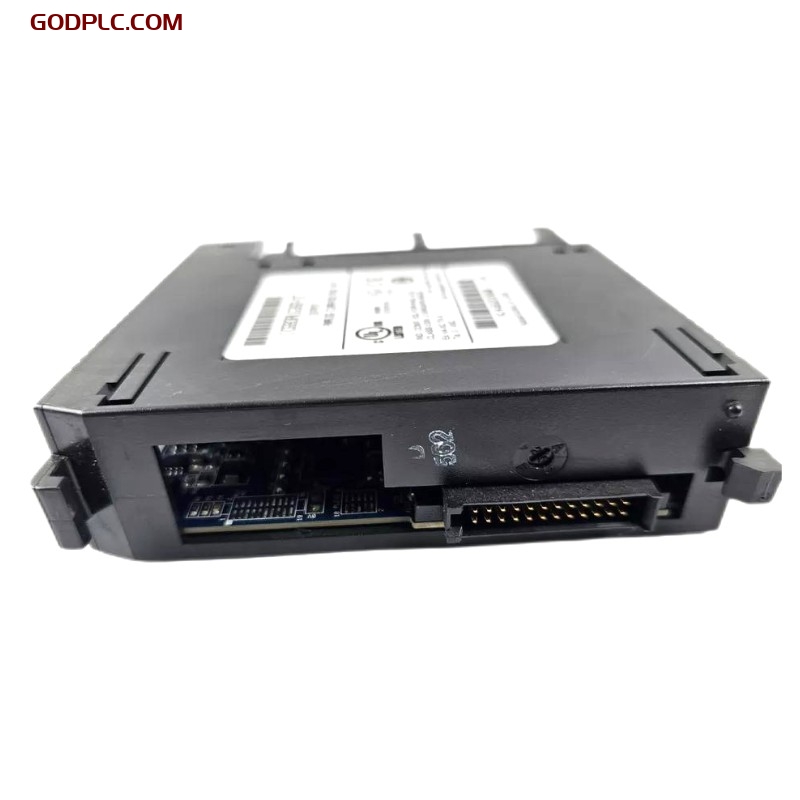

GE Fanuc IC693ALG392 Analog Output Module

Product Overview
The GE Fanuc IC693ALG392 Analog Output Module is a high-resolution 2-channel analog output module designed for the GE Series 90-30 PLC platform. It converts digital control signals from the CPU into analog voltage or current outputs for controlling field devices such as actuators, valves, and variable speed drives. With robust performance, precise output control, and flexible signal range options, the IC693ALG392 is well-suited for applications requiring accurate analog signal generation in industries such as water treatment, process automation, and manufacturing.

Key Features

• Dual Analog Output Channels – Provides two independent analog outputs for precise control of field devices

• Voltage and Current Output – Supports both 4–20 mA current and ±10 V voltage outputs, allowing flexibility for a range of applications

• High Resolution and Accuracy – 12-bit digital-to-analog conversion ensures fine signal control and smooth analog output response

• Flexible Configuration – Each channel can be independently configured for current or voltage mode via user programming

• Diagnostics and LED Indicators – On-board status LEDs and diagnostic feedback assist in monitoring module health and output conditions

• Galvanic Isolation – Isolation between outputs and system logic enhances signal integrity and system safety

• Compact Design – Easily fits into Series 90-30 PLC racks without consuming excessive panel space

• Wide Application Compatibility – Compatible with a broad range of analog control devices across various industries

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Process Automation – Delivers smooth analog control for valves, actuators, and dampers in chemical, oil & gas, and water treatment systems

• Manufacturing – Controls variable speed drives and analog-controlled machinery in automated production lines

• HVAC Systems – Provides proportional analog control for heating, ventilation, and cooling equipment

• Water/Wastewater Management – Enables precise dosing, flow, and level control in treatment plants

• Energy and Utilities – Supports analog regulation of generators, transformers, and grid control equipment

The GE Fanuc IC693ALG392 Analog Output Module is a robust and flexible solution for delivering analog signals from the PLC to field devices. Its dual-mode output, high resolution, and reliable performance make it a preferred choice for analog control in industrial automation environments. Designed for seamless integration with the Series 90-30 platform, it ensures accurate and consistent output in a wide range of applications demanding analog precision.
