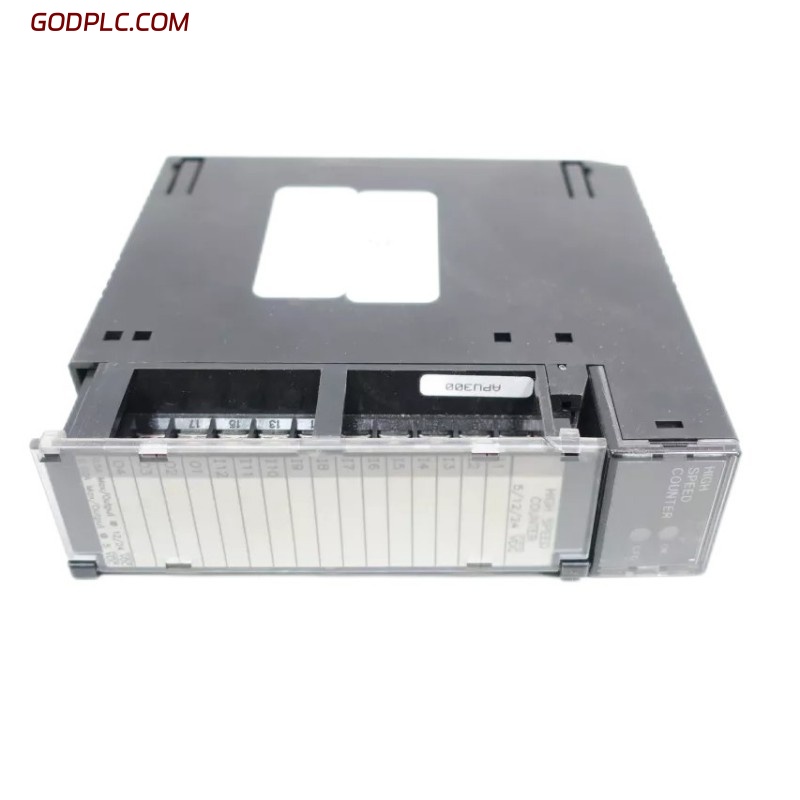

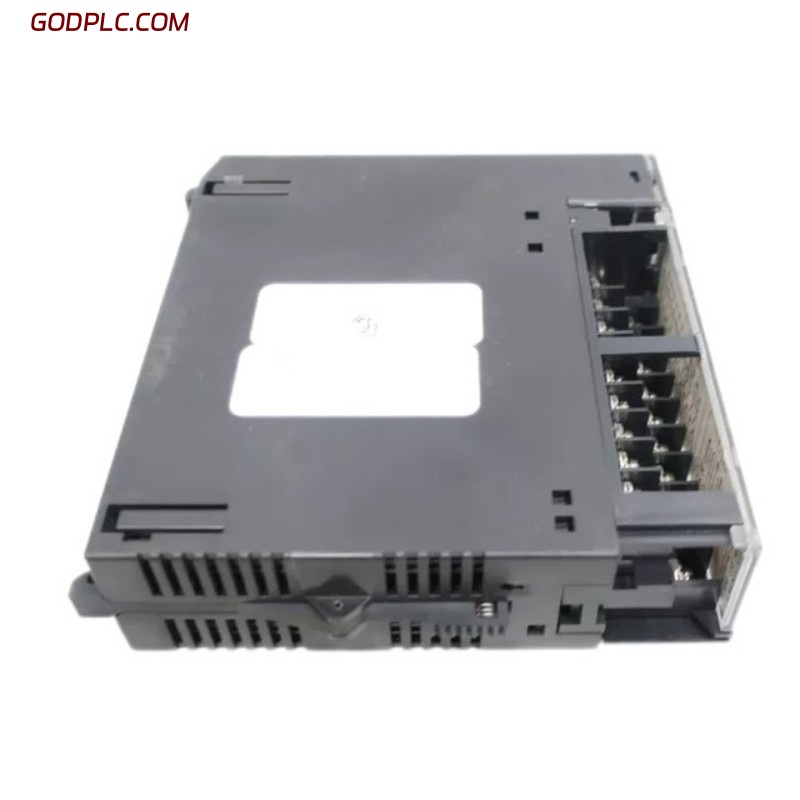

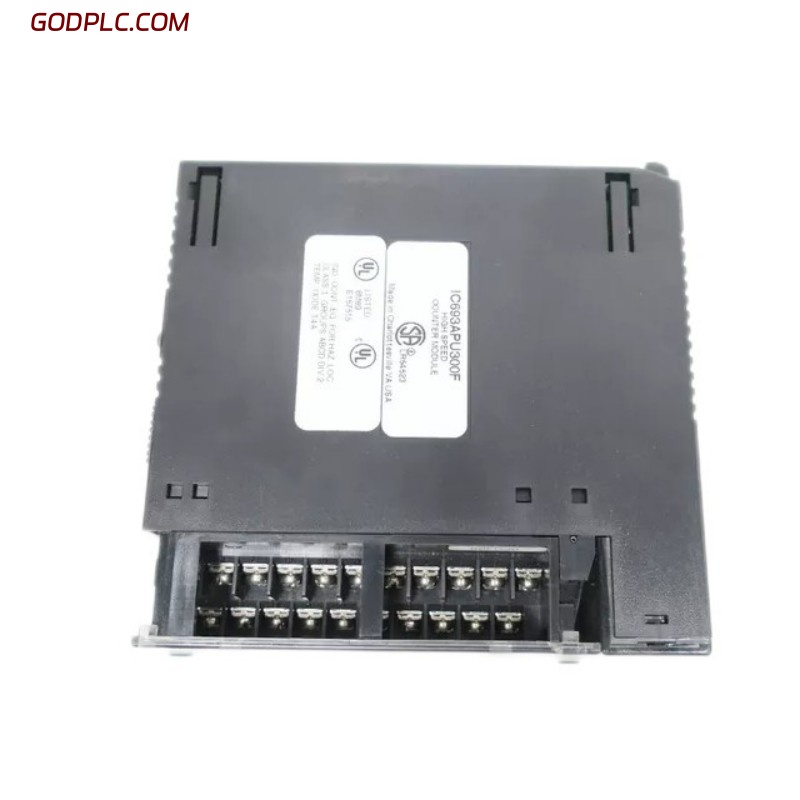

GE Fanuc IC693APU300 High-speed Counter Module
Product Overview
The GE Fanuc IC693APU300 is a high-speed counter module designed for the GE Series 90-30 PLC platform, enabling precise counting of high-frequency input signals from encoders, flow meters, and other pulse-generating devices. It enhances system capability by offloading counting tasks from the CPU, supporting applications that require rapid and accurate pulse measurement. The IC693APU300 is ideal for automation systems in manufacturing, motion control, and process monitoring where high-speed counting is critical.
Key Features
-
High-Speed Counting – Supports counting frequencies up to 1 MHz for fast signal acquisition
-
Multiple Counting Modes – Includes pulse, direction, quadrature, and pulse accumulation counting
-
4 Independent Counters – Allows simultaneous monitoring of multiple input signals
-
Wide Input Voltage Range – Compatible with TTL and differential inputs for flexibility
-
Onboard Storage – Maintains count values during power loss with battery backup option
-
LED Indicators – Provides real-time module status and input activity feedback
-
Compact Module Size – Fits standard Series 90-30 I/O racks for easy system integration
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 51 x 127 x 127 mm |
| Weight | 0.23 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Counters | 4 |
| Maximum Counting Frequency | Up to 1 MHz |
| Input Types | TTL compatible, differential inputs |
| Counting Modes | Pulse, direction, quadrature, accumulation |
| Power Supply | Supplied via backplane |
| Isolation | 1500 V RMS (field to logic) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when mounted) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | GE Fanuc Series 90-30 PLC |
| Compatible CPUs | All Series 90-30 CPU models |
| Module Type | High-Speed Counter |
Industry Applications
-
Motion Control – Accurate counting of pulses from rotary and linear encoders in robotics and CNC machines
-
Flow Measurement – High-speed pulse counting from turbine and positive displacement flow meters
-
Packaging and Assembly – Monitoring production line events and machine cycle counts
-
Process Automation – Real-time counting for batching, mixing, and material handling systems
-
Utilities and Energy – Pulse input counting for energy meters and monitoring devices
The GE Fanuc IC693APU300 High-speed Counter Module provides reliable, high-frequency pulse counting capability essential for advanced automation tasks. Its versatile input options and multiple counting modes make it a critical component in applications demanding precision and speed within the Series 90-30 PLC framework.
GE Fanuc IC693APU300 High-speed Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
