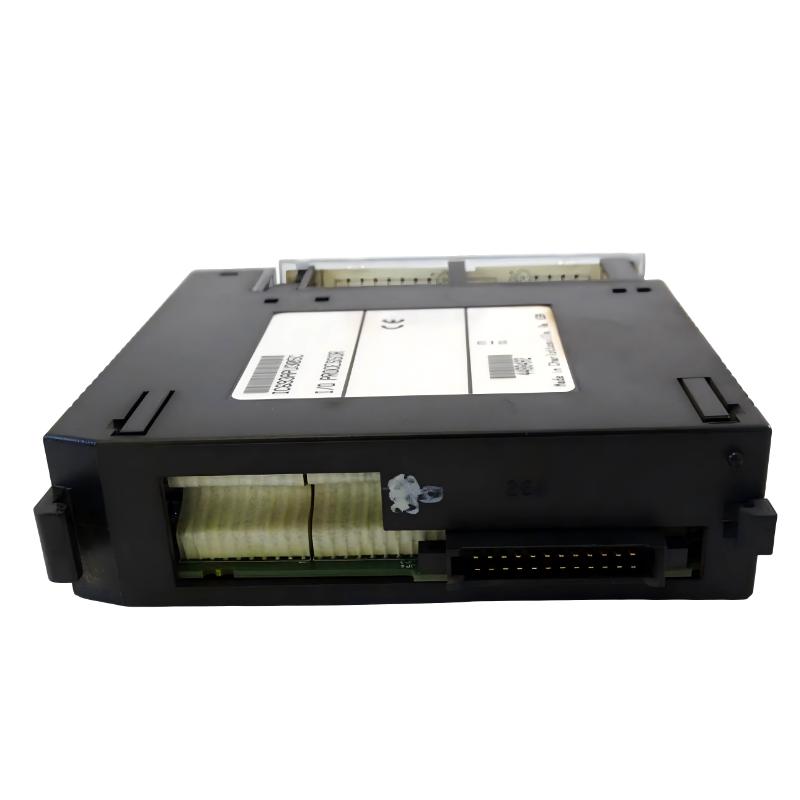

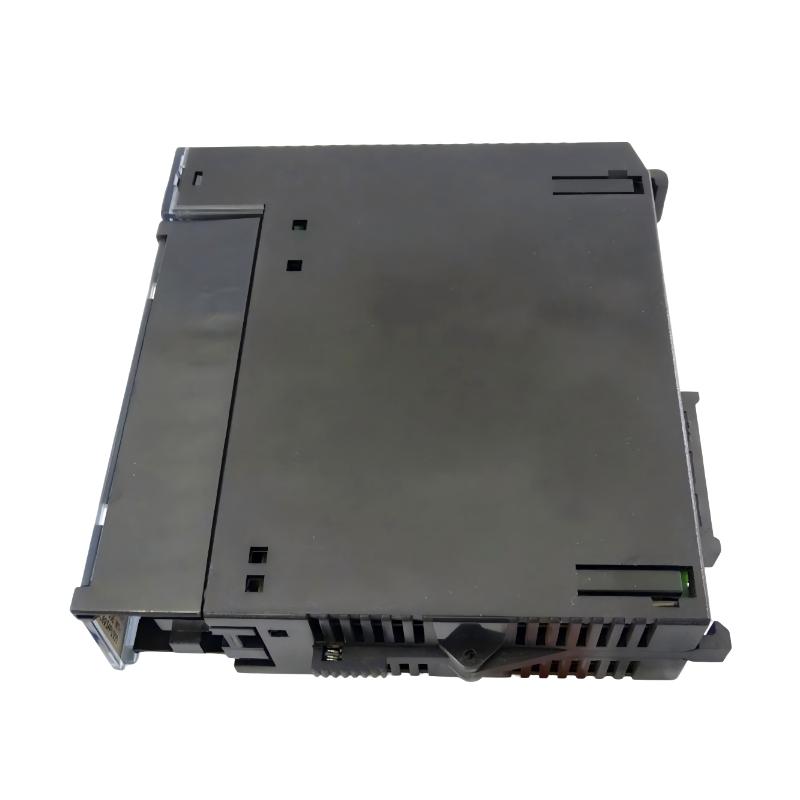

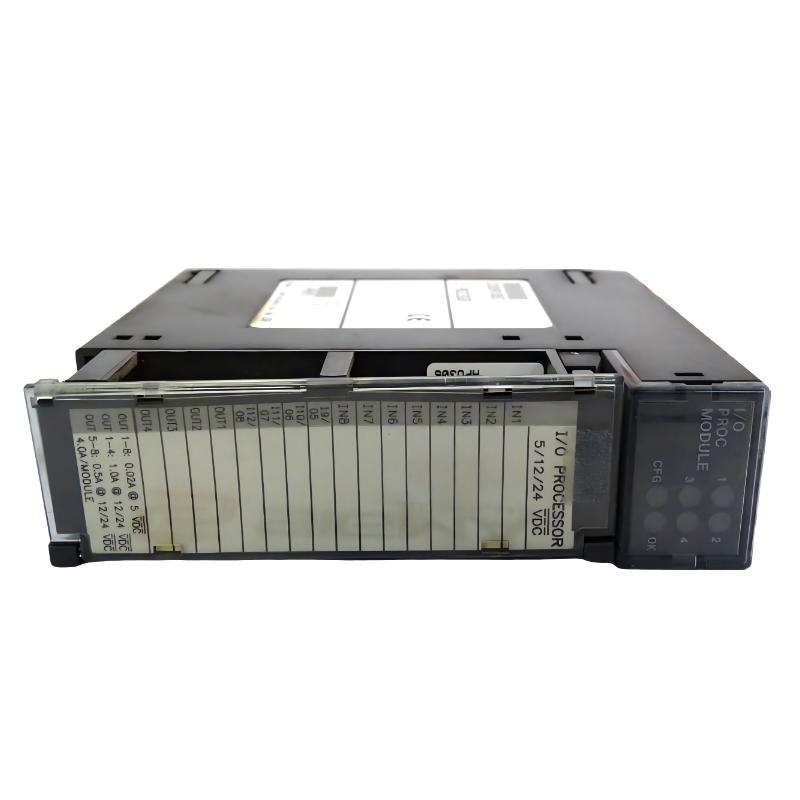

GE Fanuc IC693APU305 High-Speed I/O Processor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693APU305 |
| Manufacturer | GE Fanuc Automation |
| Product Family | Series 90-30 PLC |
| Product Type | High-Speed I/O Processor Module |
| Function | Dedicated Processor for High-Speed Input/Output Control and Signal Processing |
| Digital Inputs | 12 Positive Logic Inputs |
| Input Voltage Range | 5 VDC (TTL) or 10–30 VDC (Non-TTL) |
| Digital Outputs | 8 Positive Logic Outputs |
| Output Rating | 4 Outputs @ 1 A, 4 Configurable Outputs @ 0.5 A |
| Output Protection | Replaceable Fuse |
| I/O Update Speed | 500 μs |
| Total Counts Register | 32-bit |
| Timer Registers | 2 Timer Registers |
| Strobe Registers | 4 Strobe Data Registers |
| Range Comparators | 32 Software Configurable Comparators |
| CPU Data Exchange | 32 %I, 32 %Q, 15 %AI Words, 6 %AQ Words |
| Configuration Software | Logicmaster 90-30, VersaPro, Hand-Held Programmer |
| Indicators | 6 Green LED Status Indicators |
| Power Supply | 5 VDC from PLC Backplane |
| Mounting Method | Series 90-30 Rack Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | Approx. 127 × 64 × 102 mm |
| Weight | Approximately 0.37 kg |
| Typical Applications | High-Speed Counting, Motion Control, Position Capture, Pulse Measurement, Packaging Equipment |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IC693APU305?
A1: The IC693APU305 is a high-speed I/O processor module for GE Fanuc Series 90-30 PLC systems, designed to process inputs and control outputs independently of the main CPU.
Q2: How many inputs and outputs does it provide?
A2: The module includes 12 positive-logic digital inputs and 8 positive-logic digital outputs. Four outputs are rated at 1 A and four configurable outputs are rated at 0.5 A.
Q3: What input voltage levels are supported?
A3: It supports either 5 VDC TTL signals or 10–30 VDC industrial signals, selectable through configuration.
Q4: What makes this module different from a standard I/O module?
A4: The IC693APU305 contains a dedicated processor that can perform high-speed signal processing, counting, timing, and output control without waiting for the PLC CPU scan cycle.
Q5: What high-speed functions are available?
A5: The module supports pulse counting, frequency measurement, position capture, timer functions, strobe registers, and 32-bit total count accumulation.
Q6: How is the module configured?
A6: Configuration is performed using Logicmaster 90-30, VersaPro, or a Series 90-30 hand-held programmer. No jumpers or DIP switches are required.
Q7: What are the dimensions and weight?
A7: The module measures approximately 127 × 64 × 102 mm and weighs approximately 0.37 kg.
Q8: Is the IC693APU305 still available?
A8: The IC693APU305 is a legacy Series 90-30 product and is considered obsolete, although refurbished and surplus units remain available through aftermarket suppliers.
GE Fanuc IC693APU305 High-Speed I/O Processor Module is in stock. Please contact us for a quick quote and competitive pricing.
