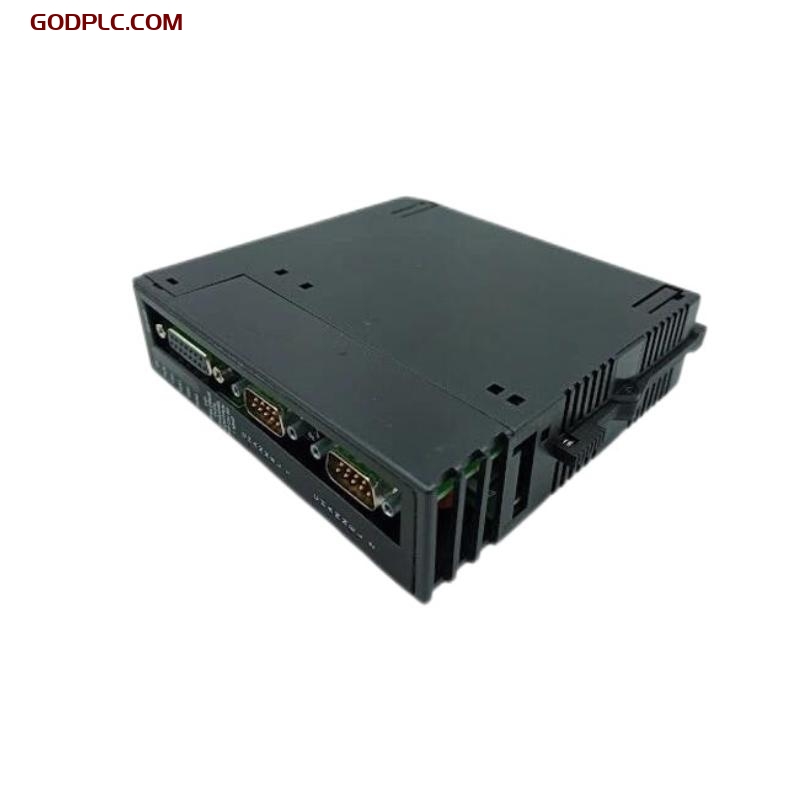

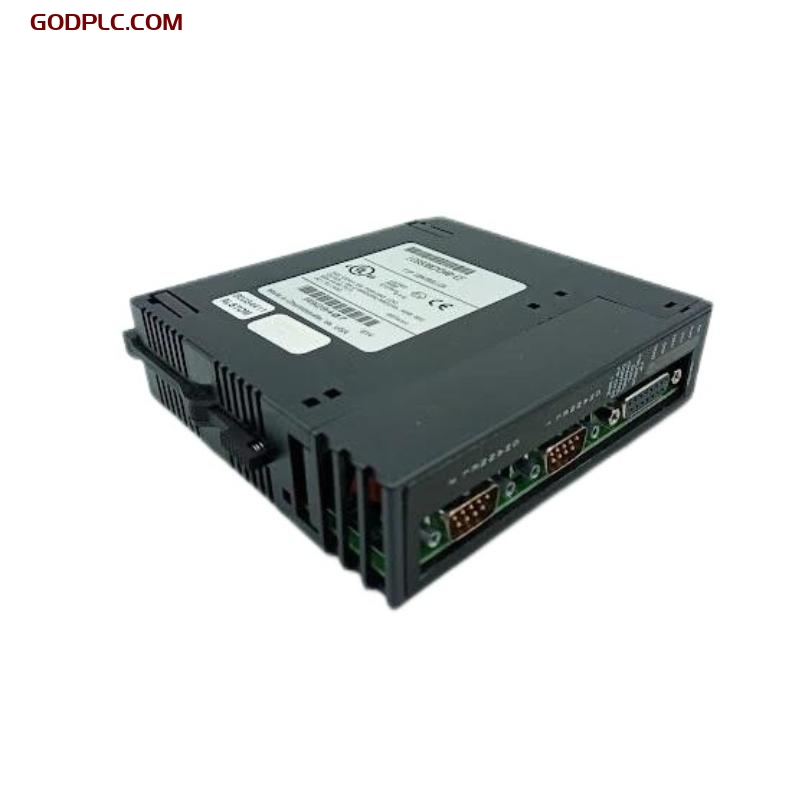

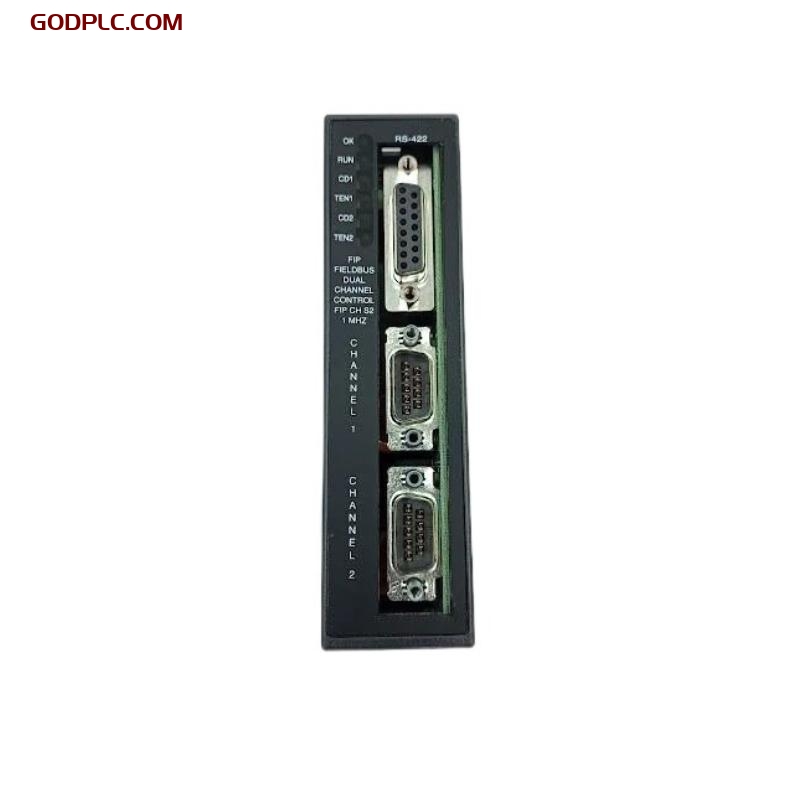

GE Fanuc IC693BEM340 Bus Controller
Product Overview
The GE Fanuc IC693BEM340 Bus Controller is an essential component for GE Fanuc PLC systems, providing the interface between the PLC processor and remote I/O modules on the system’s backplane. This bus controller is designed for robust communication within industrial automation systems, enabling seamless data exchange between the central processing unit (CPU) and remote I/O devices. It is specifically designed for systems requiring high-performance control, offering flexibility, reliability, and scalability in both large and small control systems. The IC693BEM340 is an ideal solution for industries such as manufacturing, automotive, energy, and food processing.
Key Features
-
Seamless Data Exchange – Provides a reliable and efficient communication pathway between the PLC processor and remote I/O modules, ensuring continuous and synchronized operation across the system
-
High-Speed Communication – Supports high-speed data transfer, reducing communication delays and ensuring real-time data processing between system components
-
Flexible Configuration – Compatible with various GE Fanuc I/O modules, providing flexibility in system design and allowing easy expansion of control systems
-
Built-in Diagnostics – Features built-in diagnostic capabilities to monitor system health, identify faults, and simplify troubleshooting and maintenance processes
-
Compact and Efficient Design – Designed to fit into standard GE Fanuc PLC racks, providing a space-saving solution without compromising on performance
-
Error Checking and Fault Tolerance – Provides error checking and fault tolerance features to ensure data integrity and system reliability
-
Remote I/O Support – Allows for the use of remote I/O, minimizing wiring complexity and enabling the integration of I/O modules over long distances
-
Easy Installation and Setup – Offers simple configuration and setup for quick integration into existing GE Fanuc PLC systems
-
High Availability – Designed for use in critical applications, ensuring high availability and continuous system operation in industrial environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 × 127 × 60 mm |
| Weight | 0.386 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 5 VDC (nominal) |
| Power Consumption | Approx. 2 W |
| Current Draw | 0.4 A (max) |
| Communication Ports | 1 RS-232, 1 RS-485 (for network communication) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when installed in an enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | GE Fanuc PLC Systems |
| Compatibility | Compatible with GE Fanuc Series 90-30 I/O modules, CPUs, and expansion modules |
Industry Applications
-
Manufacturing – Ideal for controlling and automating manufacturing processes, including machine control, material handling, and production line operations
-
Automotive – Used in automotive assembly lines and robotics, enabling precise control of production processes and integration with other automation systems
-
Energy – Supports power generation systems, controlling equipment such as turbines, generators, and electrical distribution systems for efficient energy management
-
Food & Beverage – Ensures consistent and reliable control in food processing plants, optimizing production, packaging, and material handling systems
-
Water Treatment – Helps automate control systems for water treatment and distribution, managing equipment such as pumps, valves, and filtration systems
The GE Fanuc IC693BEM340 Bus Controller is a vital part of GE Fanuc PLC systems, providing seamless communication between the CPU and remote I/O modules. With its high-speed data transfer, error checking, and flexible configuration, it ensures reliable performance in various industrial environments. It is particularly beneficial in manufacturing, automotive, energy, and food processing industries, enabling system scalability, reducing wiring complexity, and enhancing overall system efficiency.
