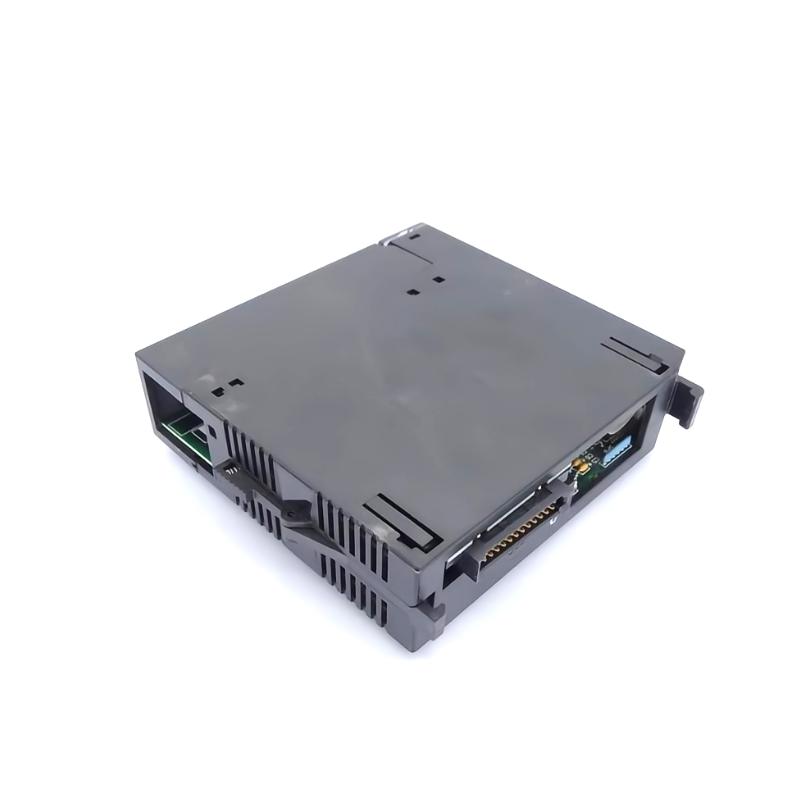

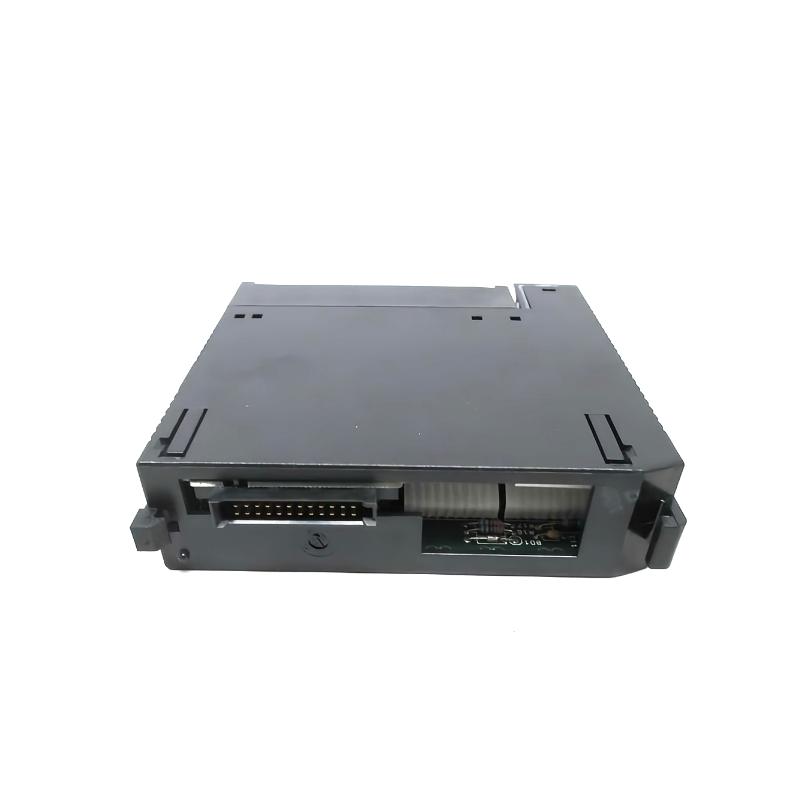

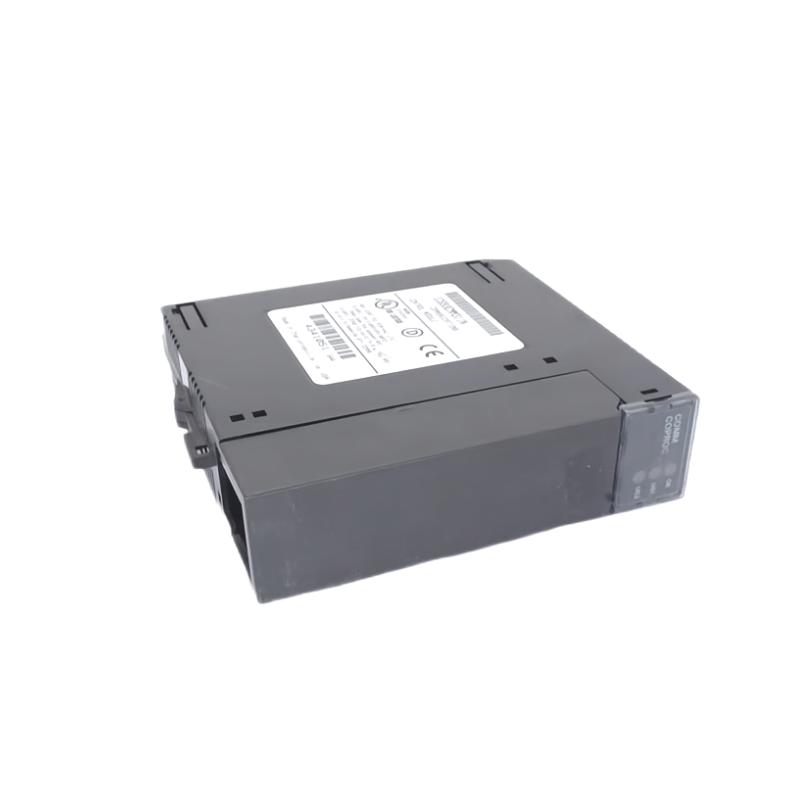

GE Fanuc IC693CNN311 High-Speed Counter / Encoder Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693CNN311 |
| Manufacturer | GE Fanuc Automation |
| Product Family | Series 90-30 PLC |
| Product Type | High-Speed Counter / Encoder Input Module |
| Function | Provides high-speed counting and encoder input capabilities for Series 90-30 PLCs |
| Number of Channels | 4 high-speed counter channels |
| Input Type | Differential or single-ended TTL/HTL encoder signals |
| Maximum Counting Frequency | Up to 100 kHz per channel |
| Counting Modes | Up/down, quadrature, pulse train, event counting |
| Resolution | 16-bit per counter (configurable) |
| Isolation | Optically isolated inputs |
| Connector Type | Screw terminal block for field wiring |
| Power Supply | Powered by PLC backplane (5 VDC, 24 VDC for field signals) |
| Mounting Location | Series 90-30 PLC rack |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | Standard Series 90-30 module size: 125 × 35 × 140 mm |
| Weight | Approximately 0.35 kg |
| Typical Applications | High-speed counting, pulse train monitoring, encoder input, machine motion control, industrial automation |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IC693CNN311?
A1: The IC693CNN311 is a high-speed counter and encoder input module for GE Fanuc Series 90-30 PLCs, designed to process high-frequency pulses and encoder signals.
Q2: How many high-speed channels does it have?
A2: It has 4 high-speed counter channels.
Q3: What types of signals can it accept?
A3: It can accept differential or single-ended TTL or HTL signals from encoders, sensors, or pulse-generating devices.
Q4: What is the maximum counting frequency?
A4: Each channel can handle up to 100 kHz.
Q5: What counting modes are supported?
A5: The module supports up/down counting, quadrature decoding, pulse train counting, and event counting.
Q6: Is the input isolated?
A6: Yes, all inputs are optically isolated for protection against electrical noise and interference.
Q7: Where is the module installed?
A7: It is installed in a Series 90-30 PLC rack, occupying a standard module slot.
Q8: Is the IC693CNN311 still available?
A8: It is a discontinued module, but refurbished or surplus units can still be sourced from industrial automation suppliers.
GE Fanuc IC693CNN311 High-Speed Counter / Encoder Input Module is in stock. Please contact us for a quick quote and competitive pricing.
