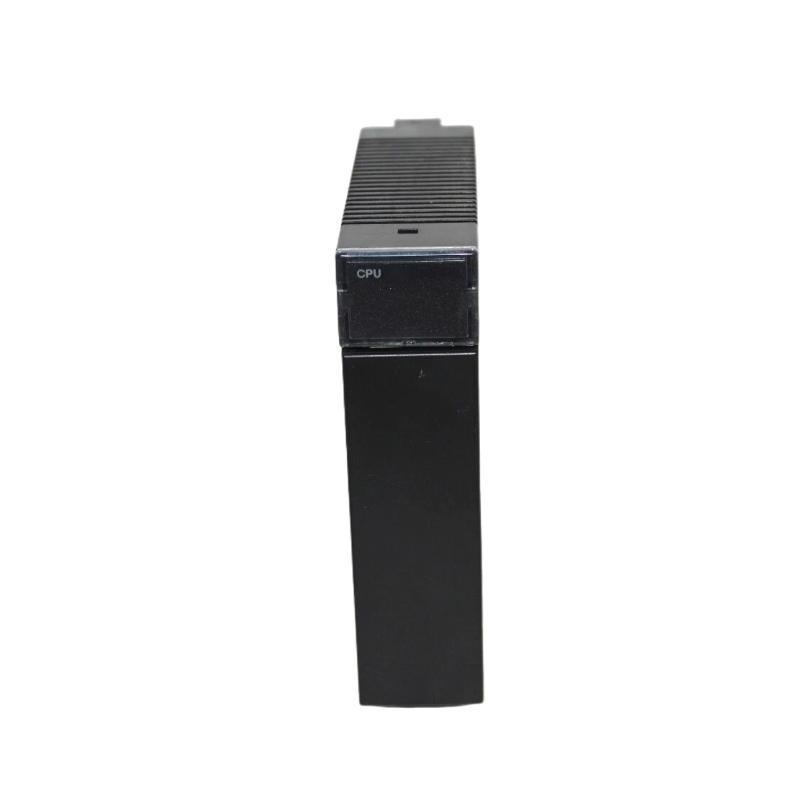

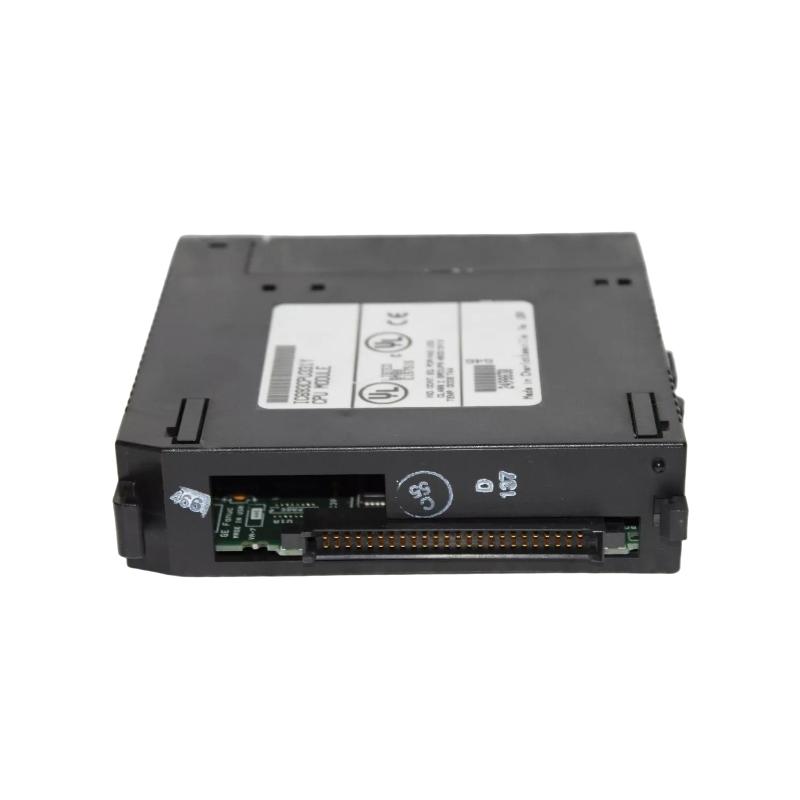

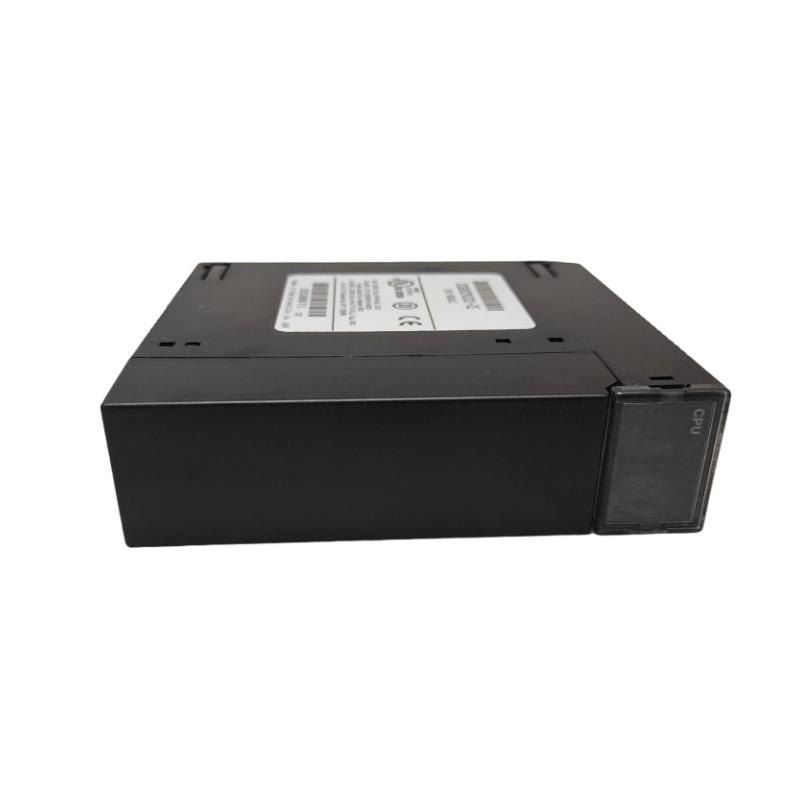

GE Fanuc IC693CPU634 Modular CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693CPU634 |
| Manufacturer | GE Fanuc Automation |
| Product Family | Series 90-30 PLC |
| Product Type | Modular CPU Module |
| Processor | Intel 80386EX |
| Processor Speed | 25 MHz |
| System Architecture | 32-Bit |
| User Program Memory | 240 KB Configurable |
| Register Memory | Up to 240 KB Configurable |
| Floating Point Math | Supported |
| Maximum Discrete I/O | 4,096 Points |
| Maximum Analog I/O | 2,048 Inputs / 512 Outputs |
| Built-in Serial Ports | 3 (1 RS-232, 2 RS-485) |
| Communication Protocols | SNP, SNP-X, Serial ASCII, RTU Slave |
| Expansion Support | Local and Remote Expansion Racks Supported |
| Programming Software | Logicmaster 90, VersaPro, Proficy Machine Edition |
| LED Indicators | OK, RUN, BATT, SERIAL ACTIVITY |
| Backplane Current Consumption | Approx. 890 mA @ 5 VDC |
| Installation Slot | CPU Slot 1 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | Approx. 127 × 35 × 140 mm |
| Weight | Approximately 0.45 kg |
| Typical Applications | Manufacturing Automation, Process Control, Material Handling, Packaging Machinery |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IC693CPU634?
A1: The IC693CPU634 is a high-performance modular CPU for the GE Fanuc Series 90-30 PLC platform, designed for medium to large industrial automation systems.
Q2: What processor does the IC693CPU634 use?
A2: It is based on the Intel 80386EX microprocessor operating at 25 MHz, providing significantly higher performance than earlier 80188-based CPUs.
Q3: How much memory is available?
A3: The CPU provides up to 240 KB of configurable memory for user programs and data storage.
Q4: Does the IC693CPU634 support floating-point calculations?
A4: Yes. Floating-point math is supported, making the controller suitable for advanced process control, calculations, and data processing applications.
Q5: What communication ports are included?
A5: The module includes three serial communication ports: one RS-232 port and two RS-485 ports for programming, HMI integration, and industrial communications.
Q6: Does the CPU support expansion racks?
A6: Yes. As a modular Series 90-30 CPU, it supports both local and remote expansion racks, allowing the system to be scaled for larger applications.
Q7: Which software can program the IC693CPU634?
A7: The CPU can be programmed using GE Fanuc Logicmaster 90, VersaPro, or Proficy Machine Edition software.
Q8: Is the IC693CPU634 still available?
A8: The IC693CPU634 is a discontinued Series 90-30 CPU module. Refurbished, repaired, and surplus units remain available through industrial automation suppliers.
GE Fanuc IC693CPU634 Modular CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
