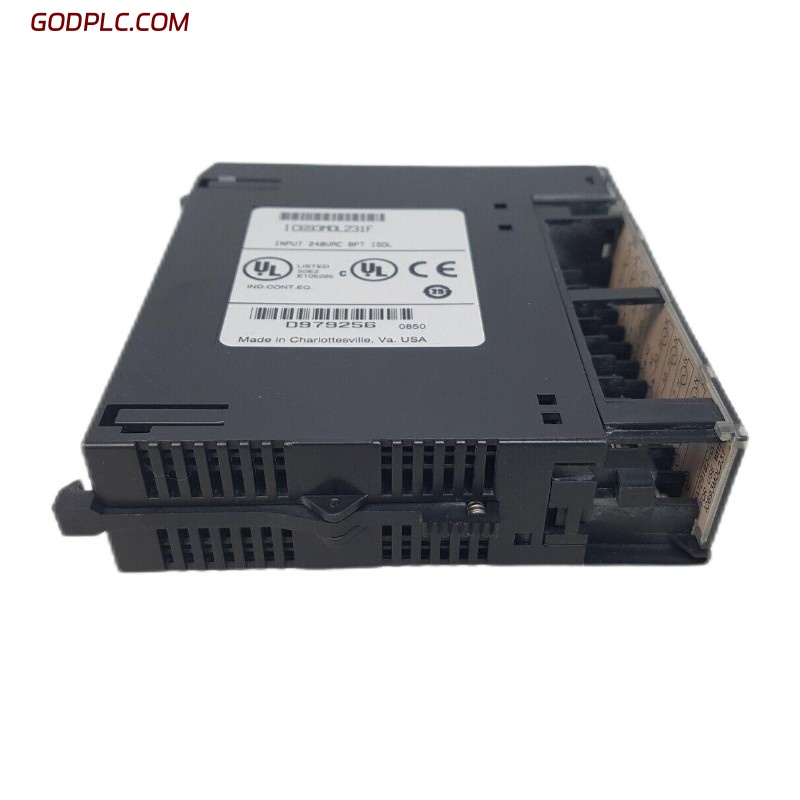

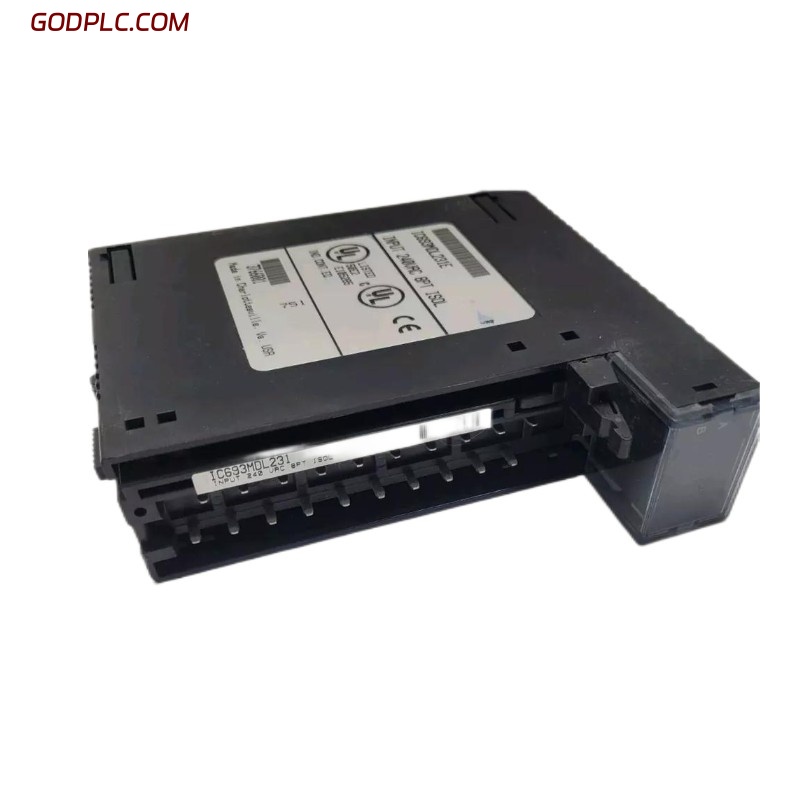

GE Fanuc IC693MDL231 Isolated Input Module

Product Overview
The GE Fanuc IC693MDL231 Isolated Input Module is designed to provide reliable digital input signal isolation for industrial control systems. Part of the GE Fanuc 90-30 PLC system, this module ensures that digital inputs are electrically isolated from the main controller, protecting the system from potential electrical faults. It is ideal for use in industrial environments where signal interference or electrical noise is a concern, and it can be integrated seamlessly into existing control and automation setups for safe, accurate data collection and processing.

Key Features

• Electrical Isolation – Provides complete electrical isolation between the input signals and the control system, preventing voltage spikes and ground loops from affecting the PLC.

• Digital Input Capabilities – Handles standard digital input signals, suitable for sensing open/closed switches, relays, and other binary signals.

• Wide Input Range – Accepts input signals from a variety of industrial devices, providing compatibility with many types of digital field devices.

• LED Indicators – Built-in LEDs for each input channel for clear indication of input status and ease of diagnostics.

• Compact Design – A space-saving design that fits seamlessly into GE Fanuc 90-30 PLC systems.

• Rugged and Reliable – Designed to perform in harsh industrial environments, ensuring long-term operation with minimal maintenance.

• High-Speed Response – Capable of processing digital input signals in real-time, making it suitable for high-speed control applications.

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Manufacturing Automation – Used for monitoring and controlling devices such as switches, relays, and limit sensors on production lines.

• Process Control – Ideal for monitoring binary signals in chemical, pharmaceutical, and other process control environments.

• Oil & Gas – Digital input signal isolation is critical in harsh environments like oil rigs, where electrical interference can be a concern.

• Power Generation – Used in systems for monitoring equipment status and enabling safe operation of electrical systems in power plants.

• Water and Wastewater – Monitors devices like flow meters, pressure sensors, and alarms in water treatment and pumping stations.

The GE Fanuc IC693MDL231 Isolated Input Module ensures high-quality signal isolation in industrial automation applications, protecting PLC systems from electrical interference and ensuring reliable operation across a wide range of industries.
