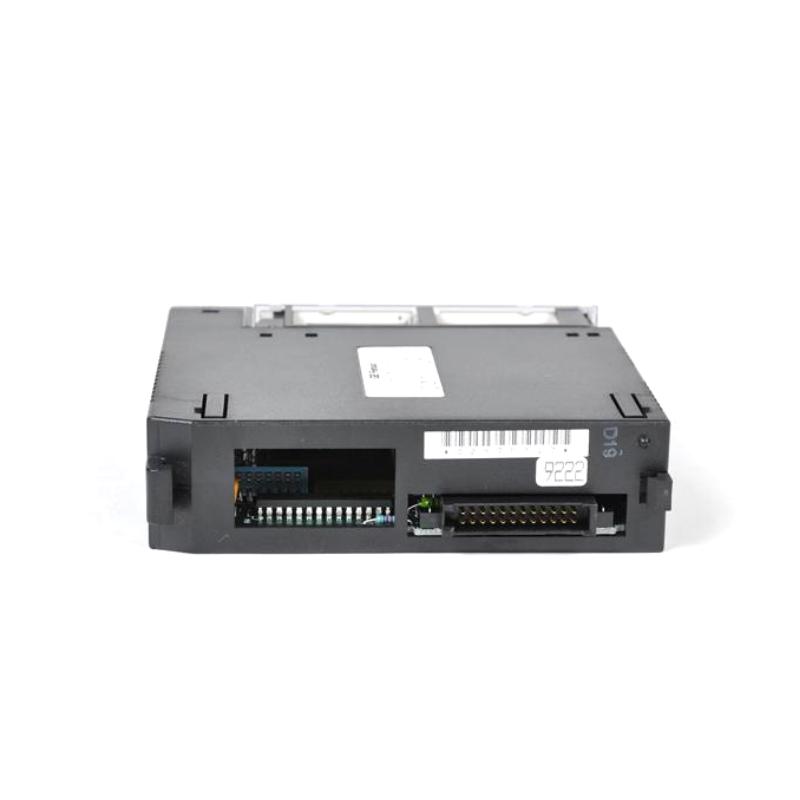

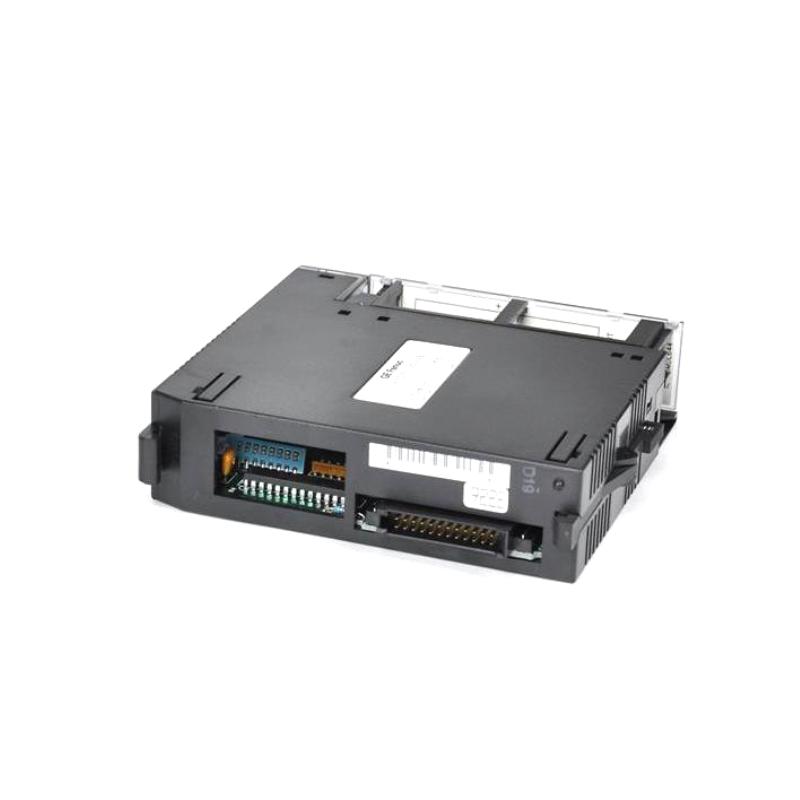

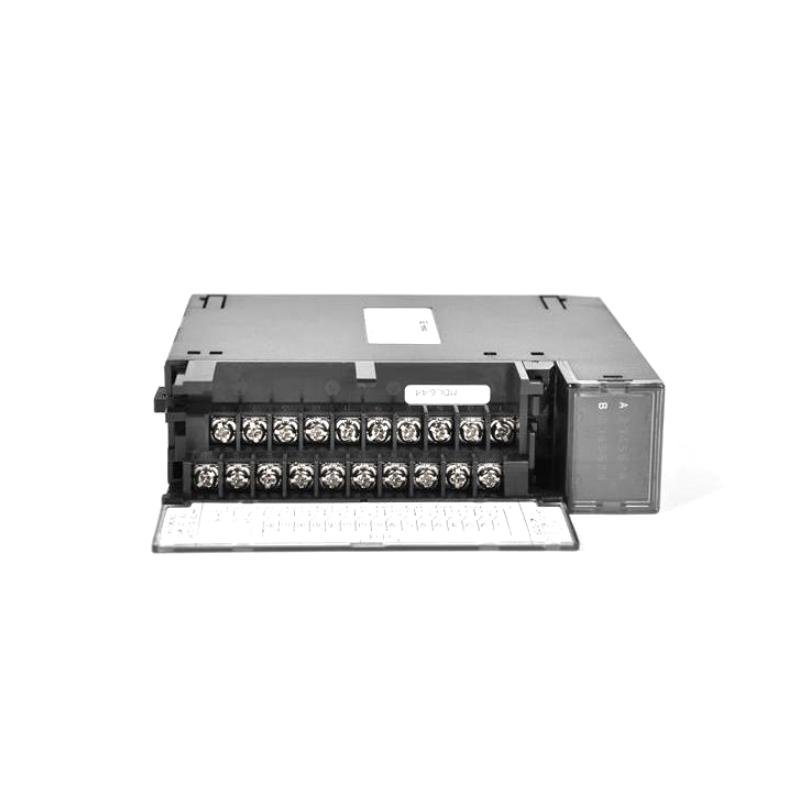

GE Fanuc IC693MDL644 Discrete Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693MDL644 |
| Manufacturer | GE Fanuc Automation |
| Product Family | Series 90-30 PLC |
| Product Type | Discrete Input Module |
| Module Type | DC Negative Logic Input |
| Number of Inputs | 16 |
| Input Voltage (Nominal) | 24 VDC |
| Input Voltage Range | 0 to 30 VDC |
| Logic Type | Negative Logic |
| Input Groups | 1 Group with Common Terminal |
| Input Current | 7.0 mA Typical at 24 VDC |
| ON-State Voltage | 0 to 4 VDC |
| OFF-State Voltage | 11.5 to 30 VDC |
| Isolation Rating | 1500 VAC RMS Between Field Side and Logic Side |
| Response Time | 1 ms ON, 1 ms OFF Typical |
| Status Indicators | 16 Individual LED Indicators |
| Baseplate Compatibility | Series 90-30 PLC Backplanes |
| Installation Slot | Any I/O Slot |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | 127 × 35 × 130 mm |
| Weight | 0.34 kg |
| Typical Applications | High-Speed Sensor Monitoring, Proximity Switches, Photoelectric Sensors, Industrial Automation |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IC693MDL644?
A1: The IC693MDL644 is a 16-point 24 VDC negative logic discrete input module designed for the GE Fanuc Series 90-30 PLC platform.
Q2: How many inputs does the module provide?
A2: The module provides 16 discrete DC input channels with a single common connection group.
Q3: What is meant by negative logic input?
A3: Negative logic means an input turns ON when the input voltage is low (0–4 VDC) relative to the common terminal.
Q4: What devices can be connected to this module?
A4: The module can interface with pushbuttons, limit switches, proximity sensors, photoelectric sensors, and other 24 VDC field devices.
Q5: Does the IC693MDL644 support high-speed input detection?
A5: Yes. With a typical response time of 1 ms ON and 1 ms OFF, it is suitable for applications requiring fast signal detection.
Q6: How are input conditions monitored?
A6: Each input point has an individual LED indicator that displays the status of the corresponding field signal.
Q7: What isolation protection is provided?
A7: The module provides 1500 VAC RMS optical isolation between the field wiring and PLC logic circuitry.
Q8: Is the IC693MDL644 still available?
A8: The IC693MDL644 is a discontinued Series 90-30 module. Refurbished, surplus, and replacement units may still be available from industrial automation suppliers.
GE Fanuc IC693MDL644 Discrete Input Module is in stock. Please contact us for a quick quote and competitive pricing.
