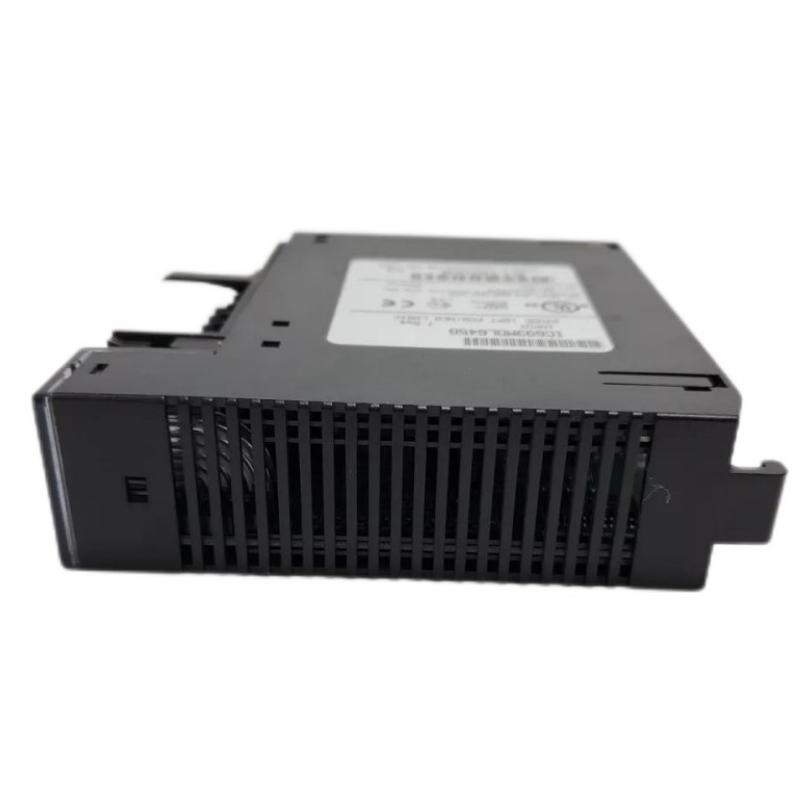

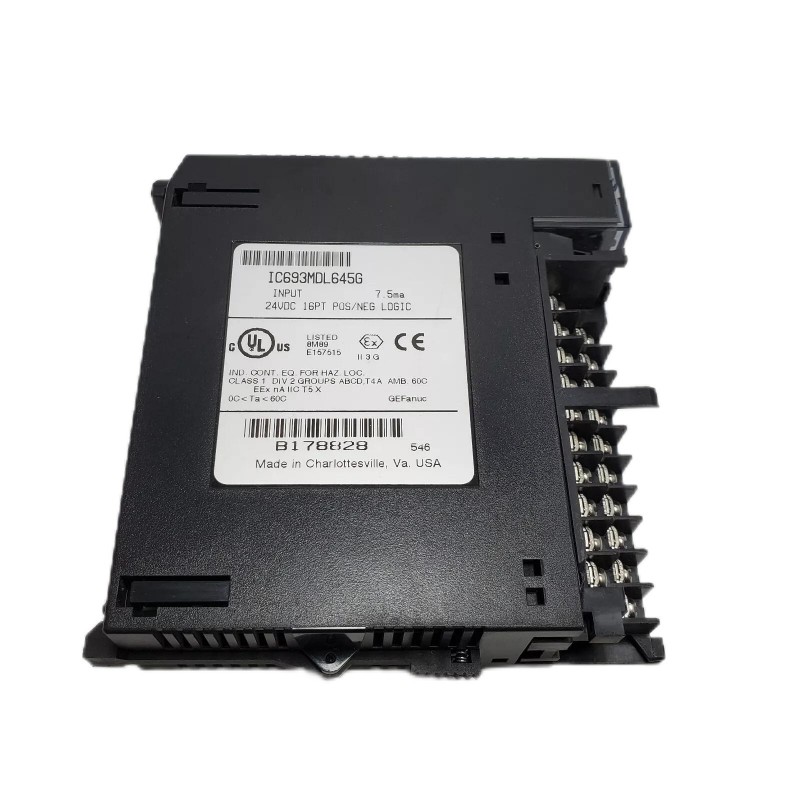

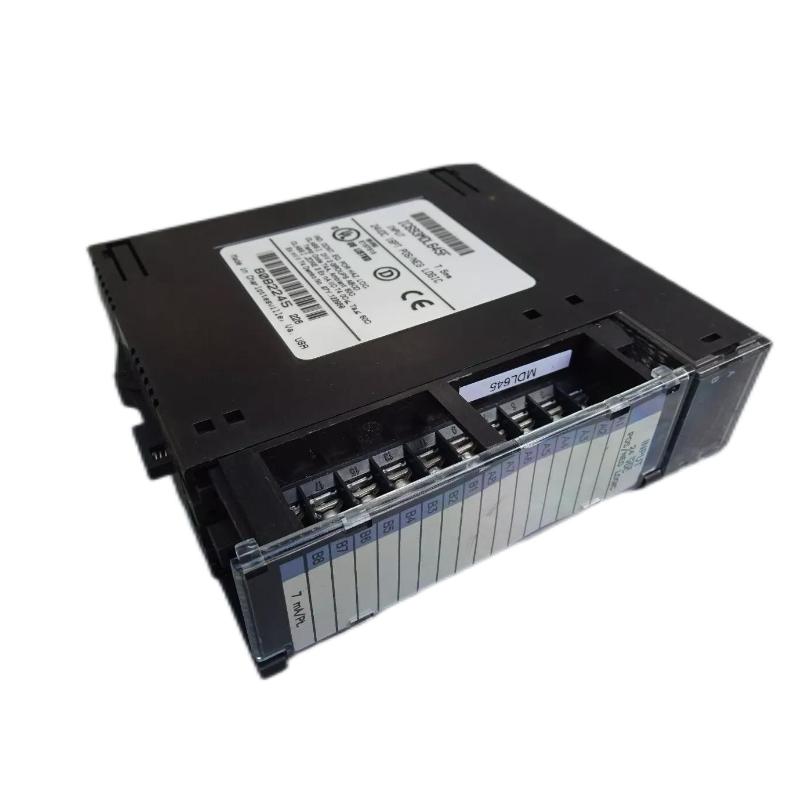

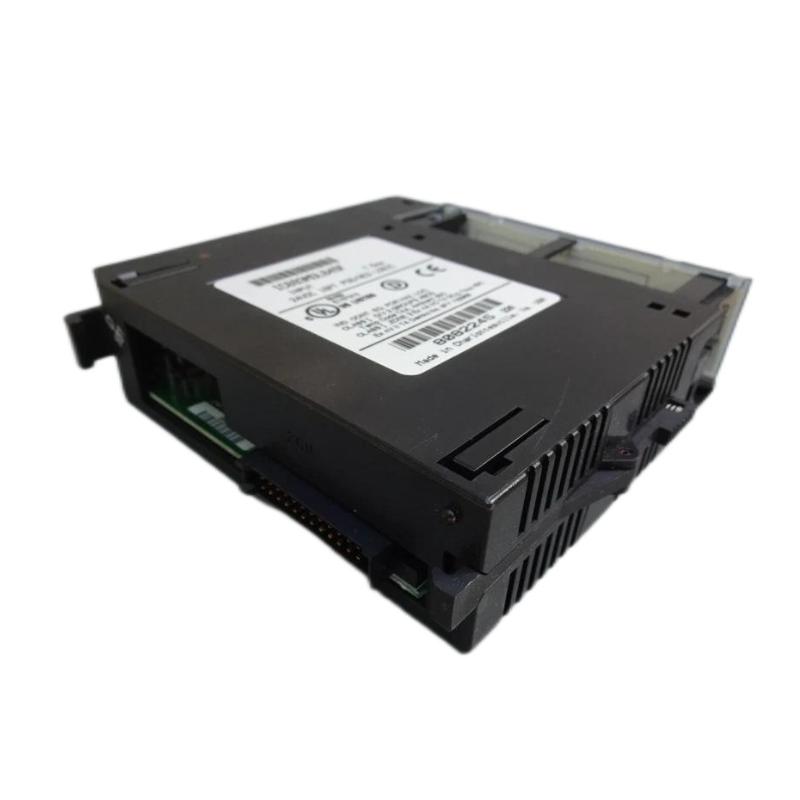

GE Fanuc IC693MDL645D DC Discrete Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693MDL645D |
| Product Series | GE Fanuc Series 90-30 |
| Product Type | DC Discrete Input Module |
| Module Function | Provides digital input interface between PLC system and external DC field devices |
| Input Points | 16 points |
| Input Configuration | 1 group of 16 inputs with a single common terminal |
| Input Logic Type | Positive Logic and Negative Logic compatible |
| Rated Input Voltage | 24 VDC |
| Input Voltage Range | 0 to +30 VDC |
| ON-State Voltage | 11.5 to 30 VDC |
| OFF-State Voltage | 0 to +5 VDC |
| ON-State Current | 3.2 mA minimum |
| OFF-State Current | 1.1 mA maximum |
| Input Current | Approximately 7 mA at rated voltage |
| Input Devices Supported | Pushbuttons, limit switches, proximity sensors, electronic switches, and other DC signal devices |
| Input Response Time | 7 ms typical ON response; 7 ms typical OFF response |
| Isolation Type | Field side to logic side isolation |
| Isolation Rating | 1500 VAC between field side and logic side |
| Internal Power Consumption | 80 mA from 5 VDC backplane supply; 125 mA from isolated 24 VDC supply |
| Terminal Connection | 20-screw removable terminal block |
| Status Indicators | 16 individual LED indicators for input status |
| Mounting Method | Series 90-30 PLC rack installation |
| Compatible Baseplate | Series 90-30 5-slot and 10-slot baseplates |
| Module Slot Requirement | Single PLC I/O slot |
| Compatibility | GE Fanuc Series 90-30 PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 112 × 45 × 57 mm (4.41 × 1.77 × 2.24 in) |
| Weight | Approximately 0.31 kg (0.69 lb) |
| Typical Applications | Sensor monitoring, switch input processing, machine control, automation sequencing, and industrial signal acquisition |
FAQ
Q1: What is the main function of the IC693MDL645D?
A: The IC693MDL645D is a 16-point 24 VDC digital input module designed for GE Fanuc Series 90-30 PLC systems. It receives signals from external field devices and transfers input status information to the PLC CPU.
Q2: How many input channels does the IC693MDL645D provide?
A: The module provides 16 DC input points arranged in a single group with one common power connection.
Q3: What type of input devices can be connected to the IC693MDL645D?
A: The module supports various DC input devices, including pushbuttons, limit switches, proximity sensors, electronic switches, and auxiliary contacts.
Q4: Can the IC693MDL645D support both positive and negative logic inputs?
A: Yes. The module supports both positive logic and negative logic configurations, providing flexibility for different field wiring designs.
Q5: What is the operating voltage range of the IC693MDL645D?
A: The module is designed for 24 VDC operation and accepts input signals from 0 to +30 VDC.
Q6: How does the IC693MDL645D indicate input status?
A: Each input channel has an individual LED indicator that displays the ON/OFF state of the connected field signal.
Q7: Does the IC693MDL645D provide electrical isolation?
A: Yes. The module provides isolation between the field wiring side and the PLC logic side, helping protect the control system from external electrical interference.
Q8: What should be checked when replacing an IC693MDL645D module?
A: Verify Series 90-30 rack compatibility, input voltage levels, terminal wiring, field device specifications, PLC addressing, and system configuration parameters before replacement.
GE Fanuc IC693MDL645D DC Discrete Input Module is in stock. Please contact us for a quick quote and competitive pricing.
