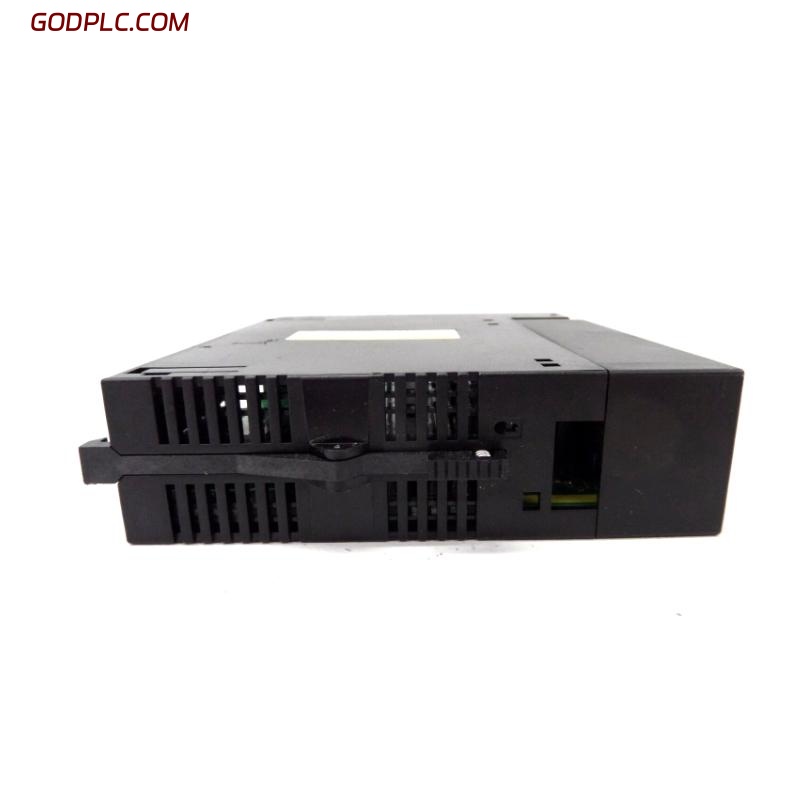

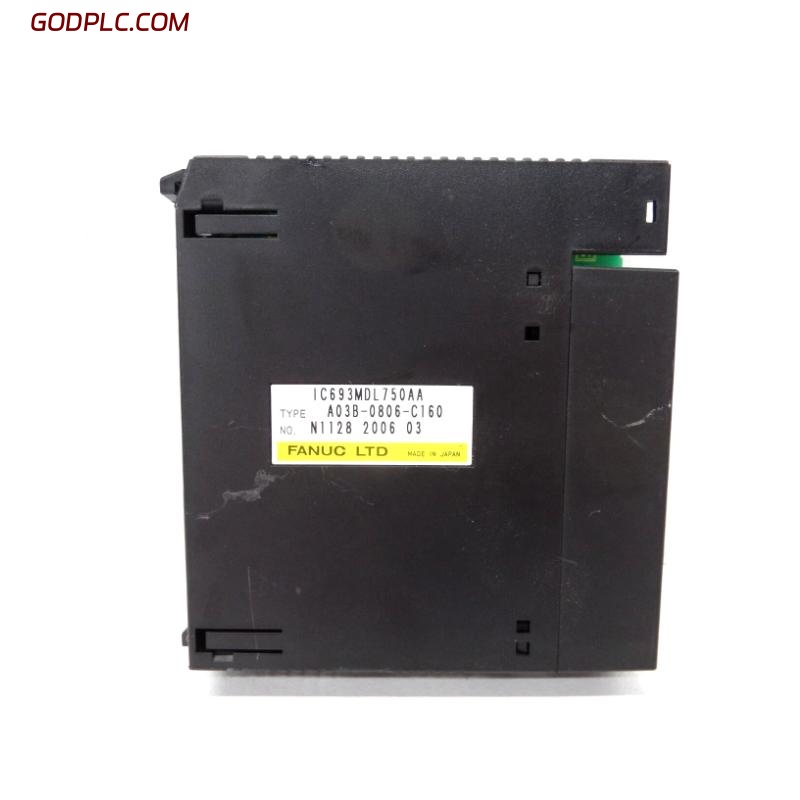

GE Fanuc IC693MDL750 Positive/Negative Logic Output Module
Product Overview
The GE Fanuc IC693MDL750 is a 32-point digital output module for the Series 90-30 PLC system, capable of sourcing or sinking current through configurable positive or negative logic. It provides 32 discrete outputs in four isolated groups of eight, supporting 5 VDC to 30 VDC operation. The module is ideal for controlling a variety of field devices such as solenoids, relays, lamps, and contactors in industrial automation systems where flexibility and high-density output are required.
Key Features
-
32 Discrete Outputs – High-density module for space-efficient control
-
Positive/Negative Logic Support – Can be configured to source (positive) or sink (negative) current
-
Four Isolated Groups – Enhanced noise immunity and fault isolation
-
LED Indicators – Per-point status LEDs for diagnostics and monitoring
-
Modular Design – Plug-in module for GE Series 90-30 I/O bases
-
Reliable DC Switching – Suitable for resistive and inductive loads
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 118 x 33 x 89 mm |
| Weight | 0.281 kg |
Mechanical & Physical Characteristics
| Item | Specification |
|---|---|
| Mounting Type | Installed in Series 90-30 base I/O rack |
| Output Connector | 50-pin female header |
| Housing Material | Industrial-grade thermoplastic |
| Status Indicators | 32 individual LED indicators |
Electrical Characteristics
| Item | Specification |
|---|---|
| Output Voltage Range | 5 VDC to 30 VDC |
| Output Current per Point | Max. 0.5 A |
| Maximum Module Current | 4 A per common |
| Output Type | Configurable Sourcing (PNP) or Sinking (NPN) |
| Isolation | 1500 V RMS (field to logic) |
| Group Isolation | 4 groups, isolated from each other and logic |
Environmental Ratings
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Vibration/Shock | IEC 60068 compliant |
| Cooling | Natural convection |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Series | GE Fanuc Series 90-30 |
| Supported CPUs | All 90-30 CPUs with sufficient I/O capacity |
| Configuration Tool | Proficy Machine Edition or Logicmaster 90 |
Industry Applications
-
Factory Automation – Efficient control of digital actuators, signal lamps, and solenoids
-
Material Handling – Reliable output control in conveyor and sorting systems
-
Water & Wastewater – Supports pump, valve, and alarm actuation in SCADA systems
-
Packaging Systems – High-density I/O ideal for compact machinery control panels
-
Building Automation – Output control for HVAC relays, lighting, and security devices
The GE Fanuc IC693MDL750 Positive/Negative Logic Output Module combines flexibility, high output density, and rugged design—making it a reliable choice for industrial environments demanding efficient and configurable digital control.
GE Fanuc IC693MDL750 Positive/Negative Logic Output Module is in stock. Please contact us for a quick quote and competitive pricing.
