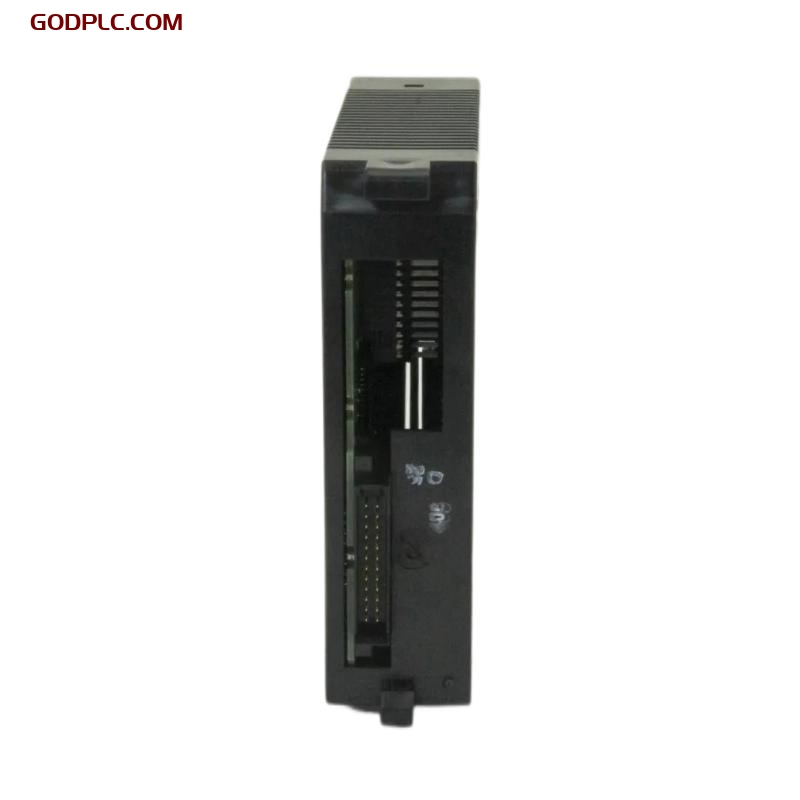

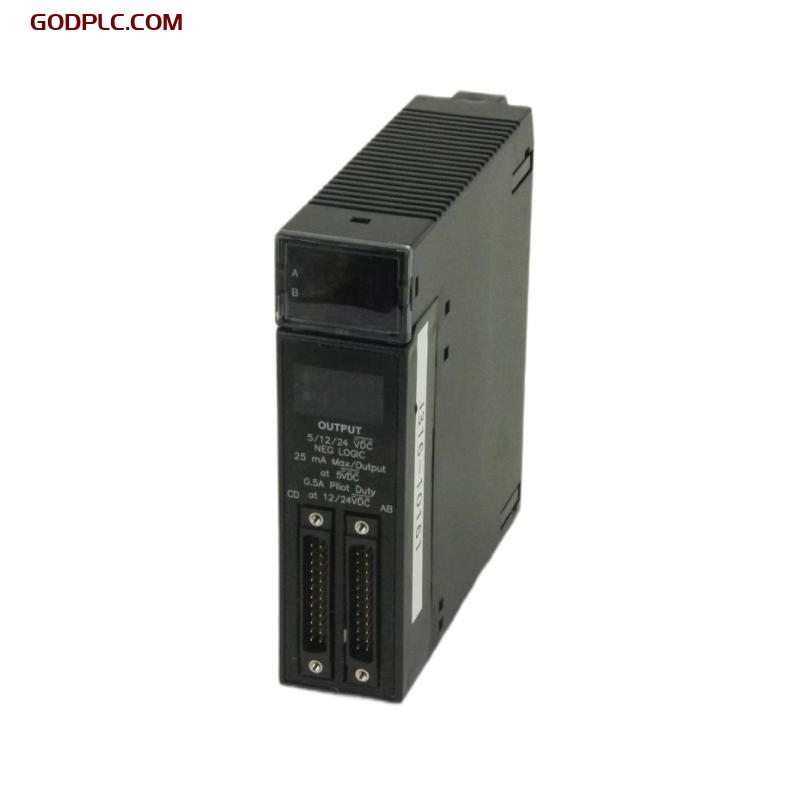

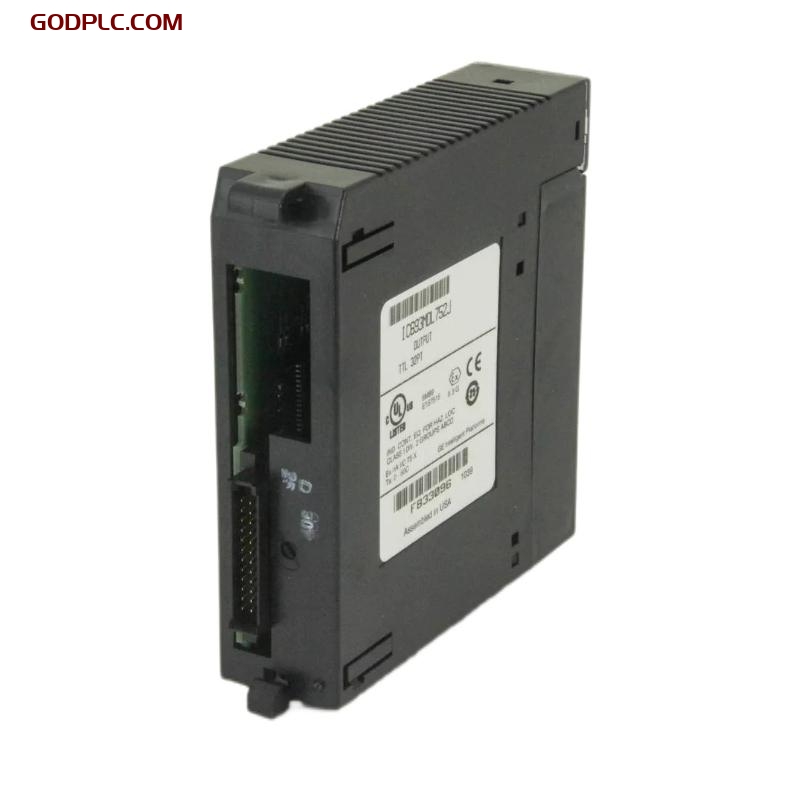

GE Fanuc IC693MDL752J Positive/Negative Logic Output Module
1. Product Overview
The GE Fanuc IC693MDL752J Positive/Negative Logic Output Module is an advanced I/O module designed to offer flexible and reliable output control in industrial automation systems. It supports both positive and negative logic configurations, enabling it to drive a variety of load types, including relays, actuators, and other field devices. The module is typically used with GE Fanuc’s PACSystems™ or Series 90-30 systems and is ideal for applications that require precise control of output signals.
Built with durability in mind, the IC693MDL752J module is capable of handling demanding industrial environments and can be easily integrated into existing control systems. Its design ensures high current capacity and compatibility with a wide range of voltages, providing efficient and scalable solutions for a variety of automation needs.
2. Key Features
-
Dual Logic Support: Supports both positive and negative logic output for flexible configuration.
-
High Current Capacity: Can drive industrial outputs with high current requirements, making it suitable for diverse applications.
-
Clear LED Indicators: Status LEDs provide real-time feedback on the operation and health of the module.
-
Wide Voltage Range: Supports various input and output voltages, ensuring compatibility with different devices.
-
Easy Integration: Compatible with GE Fanuc PACSystems™ and Series 90-30 platforms for seamless system integration.
-
Modular and Maintainable: Designed for easy installation, maintenance, and replacement without system downtime.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 150 × 100 × 70 mm |
| Weight | 0.4kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | IC693MDL752J |
| Manufacturer | GE Fanuc |
| Product Type | Positive/Negative Logic Output Module |
| Mounting | Rack mountable (fits 90-30 system) |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Voltage | 5V, 12V, or 24V DC |
| Output Current | Max. 0.5 A per channel |
| Number of Outputs | 16 channels |
| Logic Type | Positive or Negative |
| Status Indicators | LEDs for power, output, and faults |
| Power Consumption | 2.5 W Max |
| Operating Voltage | 24 V DC ±10% (from backplane) |
3.4 System Features
-
Dual Logic Configuration: Allows for flexible output control, adaptable to different industrial needs.
-
LED Diagnostic Indicators: Provides visual feedback for easy monitoring and troubleshooting.
-
High Output Capacity: Capable of driving large loads with high current ratings, suitable for industrial equipment.
-
Seamless Integration: Fully compatible with GE Fanuc PACSystems™ and Series 90-30 controllers.
4. Industry Applications
The GE Fanuc IC693MDL752J Positive/Negative Logic Output Module is widely used in the following industries:
-
Manufacturing Automation: Controls machinery, relays, and motors in automated production systems.
-
Process Control: Drives field devices such as pumps, valves, and sensors in chemical, pharmaceutical, and petrochemical processes.
-
Material Handling: Manages conveyors, robotic arms, and sorting systems in warehouses and distribution centers.
-
Energy and Utilities: Ensures reliable output control in power plants, substations, and grid management systems.
-
Packaging and Assembly: Used in packaging lines for controlling actuators, seals, and automated packaging equipment.
This module’s versatile logic configuration, robust design, and compatibility with GE Fanuc control systems make it an essential component for automation and control tasks in various industrial applications.
GE Fanuc IC693MDL752J Positive/Negative Logic Output Module is in stock. Please contact us for a quick quote and competitive pricing.
