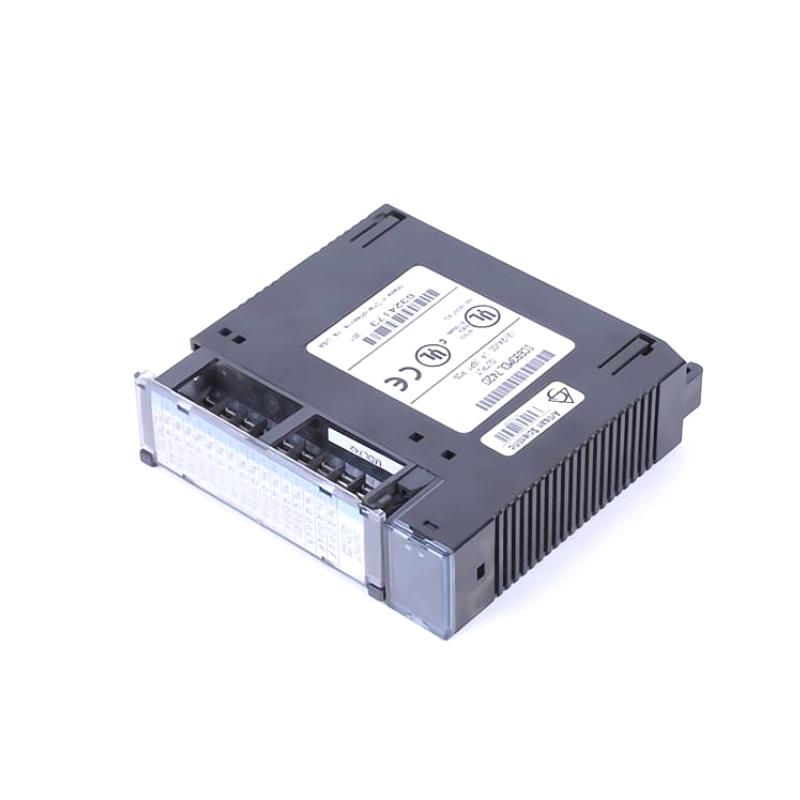

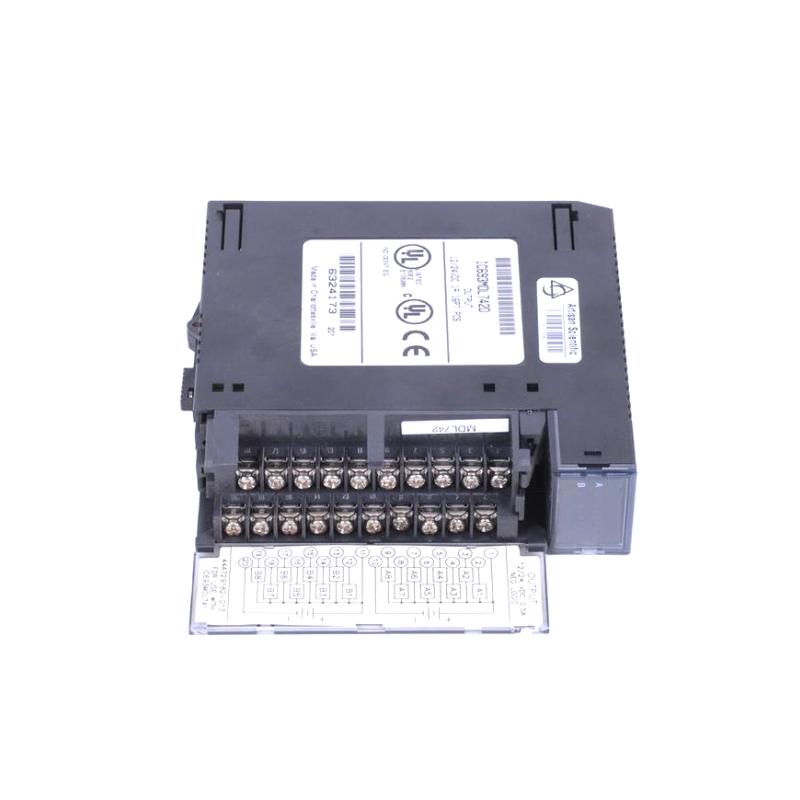

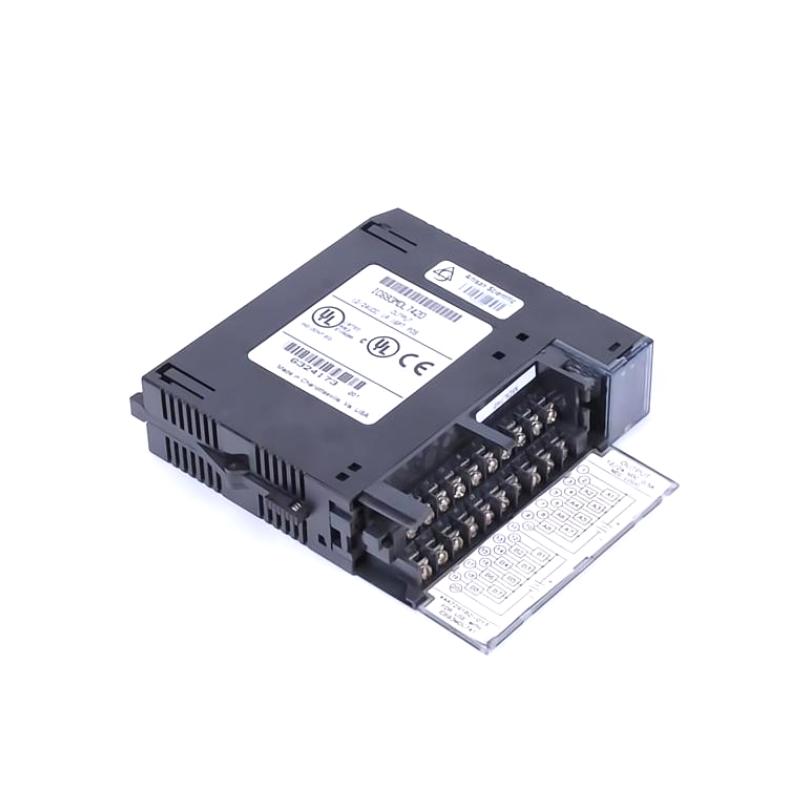

GE Fanuc IC693MDL760 Solenoid Valve Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693MDL760 |
| Manufacturer | GE Fanuc Automation |
| Product Family | Series 90-30 PLC |
| Product Type | Solenoid Valve Output Module |
| Module Type | Pneumatic and DC Output Module |
| Pneumatic Outputs | 11 |
| DC Outputs | 5 Sourcing Outputs |
| Output Voltage | 24 VDC Nominal |
| Output Voltage Range | 18 to 30 VDC |
| Load Current per DC Output | 0.5 A @ 30 VDC |
| Total DC Output Current | 2.0 A Maximum |
| Supply Pressure | 100 PSI Maximum |
| Solenoid Power Supply | 21.6 to 26.4 VDC |
| Solenoid Inrush Current | 33 mA per Valve @ 24 VDC |
| Solenoid Holding Current | 13 mA per Valve @ 24 VDC |
| Pneumatic Valve Type | Internal 3-Way Solenoid-Actuated Valve |
| Output Type | Positive Logic Transistor Outputs |
| ON Response Time | 12 ms Maximum (Pneumatic) |
| OFF Response Time | 12 ms Maximum (Pneumatic) |
| LED Indicators | Individual Output LEDs and Power LED |
| Backplane Current Consumption | 75 mA @ 5 VDC |
| Baseplate Compatibility | Series 90-30 PLC Backplanes |
| Installation Slot | Any I/O Slot |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | 127 × 35 × 140 mm |
| Weight | 0.20 kg |
| Typical Applications | Pneumatic Actuator Control, Valve Manifolds, Packaging Equipment, Material Handling Systems |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IC693MDL760?
A1: The IC693MDL760 is a Series 90-30 output module combining 11 pneumatic outputs with 5 discrete 24 VDC sourcing outputs for controlling pneumatic devices and field equipment.
Q2: How many outputs are available on the module?
A2: The module provides 16 outputs in total: 11 pneumatic outputs and 5 DC sourcing outputs.
Q3: What is the maximum pneumatic supply pressure?
A3: The pneumatic section supports a maximum supply pressure of 100 PSI.
Q4: What type of pneumatic valves are used?
A4: Each pneumatic output includes an internal 3-way solenoid-actuated valve that directs or vents air pressure based on output status.
Q5: What are the electrical characteristics of the DC outputs?
A5: The five sourcing outputs operate at 24 VDC nominal, support up to 0.5 A per point, and have a combined maximum load current of 2.0 A.
Q6: How are output statuses monitored?
A6: The module includes individual LED indicators for each output point as well as a power indicator LED.
Q7: What applications is the IC693MDL760 designed for?
A7: It is commonly used in pneumatic automation systems, valve control assemblies, packaging machinery, pick-and-place equipment, and material handling systems.
Q8: Is the IC693MDL760 still available?
A8: The IC693MDL760 is a discontinued Series 90-30 module. Refurbished, surplus, and replacement units may still be sourced from industrial automation suppliers.
GE Fanuc IC693MDL760 Solenoid Valve Output Module is in stock. Please contact us for a quick quote and competitive pricing.
