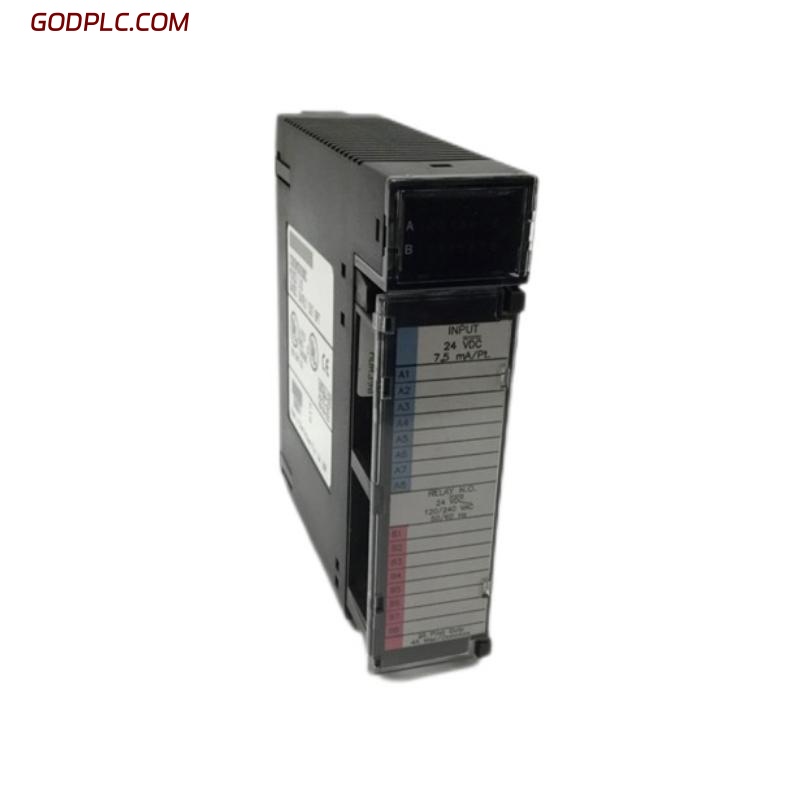

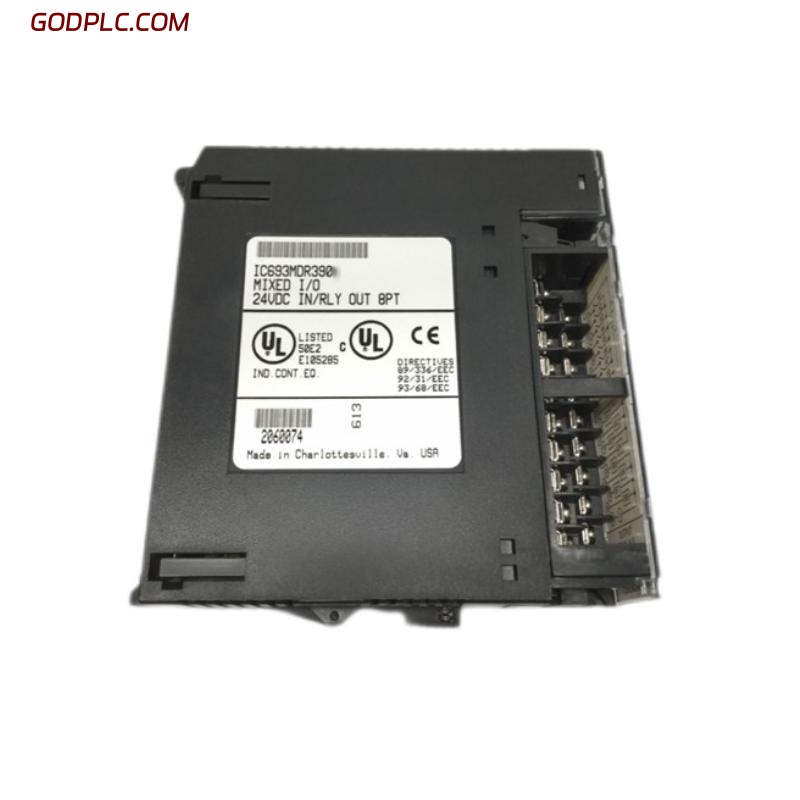

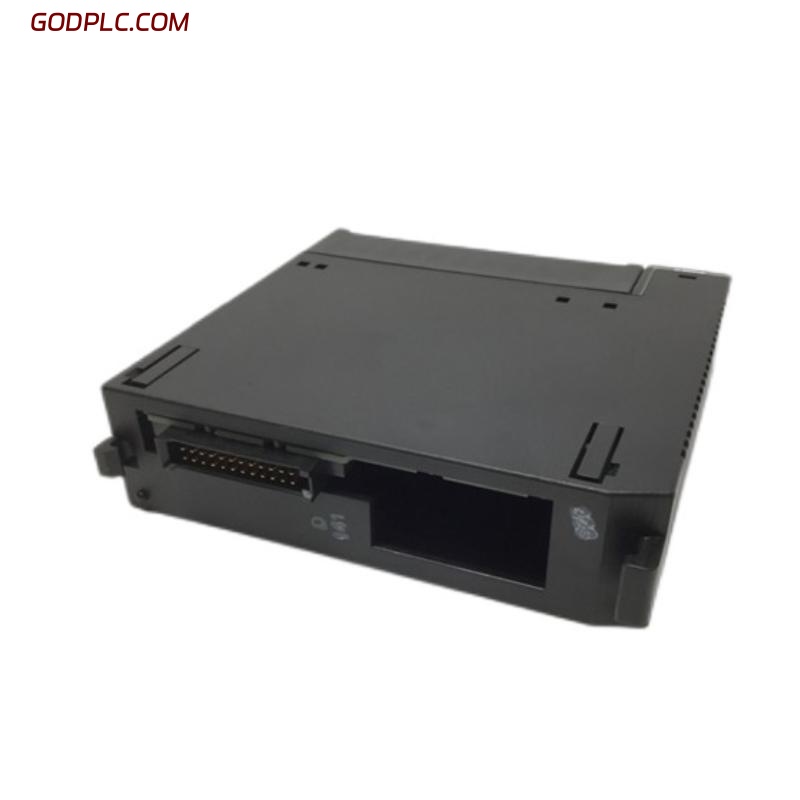

GE Fanuc IC693MDR390 Relay I/O Module
Product Overview
The GE Fanuc IC693MDR390 Relay I/O Module is a high-performance combination module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This module includes 8 discrete 24V DC inputs and 8 relay outputs in a single-slot configuration, streamlining control panel design and reducing I/O module count. Engineered for flexibility and reliability, the IC693MDR390 is ideal for various industrial automation applications requiring secure digital input monitoring and relay-based output control.
Key Features
-
8 DC Inputs and 8 Relay Outputs – Combines input and output functions in one module to optimize space and cost.
-
High Isolation – 1500 V RMS isolation between field and logic; 500 V RMS between relay groups.
-
Wide Voltage Compatibility – Handles 24V DC input signals and relay outputs up to 250V AC or 30V DC.
-
Status Indicators – On-board LEDs provide real-time status of each input and output channel.
-
Hot-Swappable – Enables module replacement without system shutdown, minimizing operational interruptions.
-
Reliable Switching – Supports resistive and inductive loads with high inrush current tolerance.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 122 × 82 × 60 mm |
| Weight | 1.36 kg |
3.2 Electrical Characteristics
Inputs:
| Item | Specification |
|---|---|
| Rated Voltage | 24V DC |
| Voltage Range | –30 to +32V DC |
| Input Current | 7.5 mA at 24V DC |
| On-State Voltage | 15 to 32V DC |
| Off-State Voltage | 0 to 5V DC |
| On-State Current | ≥ 4 mA |
| Off-State Current | ≤ 1.5 mA |
| Response Time | 7 ms (typical) |
Outputs:
| Item | Specification |
|---|---|
| Output Type | SPST Relay (Normally Open) |
| Voltage Range | 5–30V DC, 5–250V AC (50/60 Hz) |
| Max Load per Output | 2 A |
| Max Load per Common | 4 A |
| Max Inrush Current | 5 A |
| Response Time | 15 ms (typical) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | –40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | GE Fanuc Series 90-30 PLC |
| Module Type | Single-slot I/O Module |
| Installation | Usable in any I/O slot of the Series 90-30 baseplate |
Industry Applications
-
Manufacturing Automation – Controls machinery and sensors in assembly lines and production cells.
-
Power and Energy – Used in generator and switchgear monitoring systems.
-
Water and Wastewater – Supports remote telemetry and pump control applications.
-
Building Automation – Controls relays for HVAC, lighting, and access systems.
-
Transportation – Integrates into signal control and automated transport systems.
The GE Fanuc IC693MDR390 Relay I/O Module is a reliable and compact solution for mixed-signal automation requirements. Its combination of 24V DC inputs and high-voltage relay outputs in a single module makes it a flexible and efficient choice for industrial PLC-based systems.
GE Fanuc IC693MDR390 Relay I/O Modules is in stock. Please contact us for a quick quote and competitive pricing.
