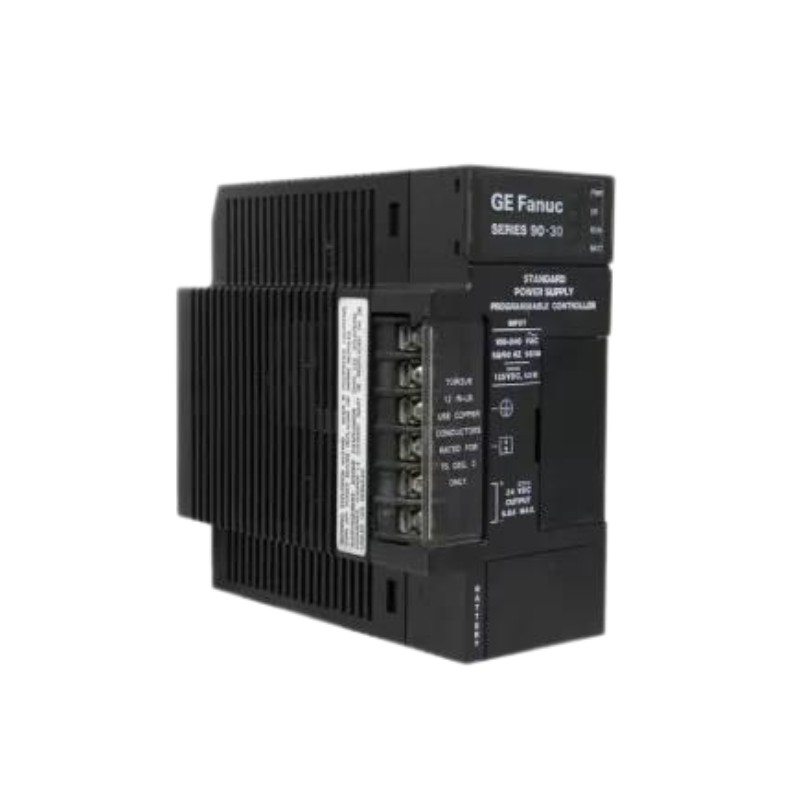

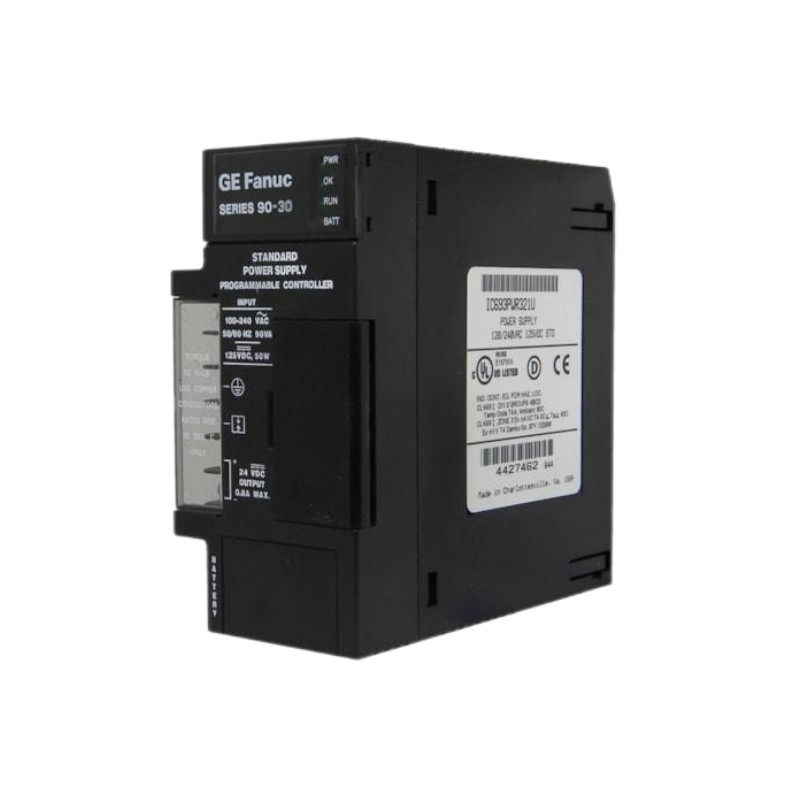

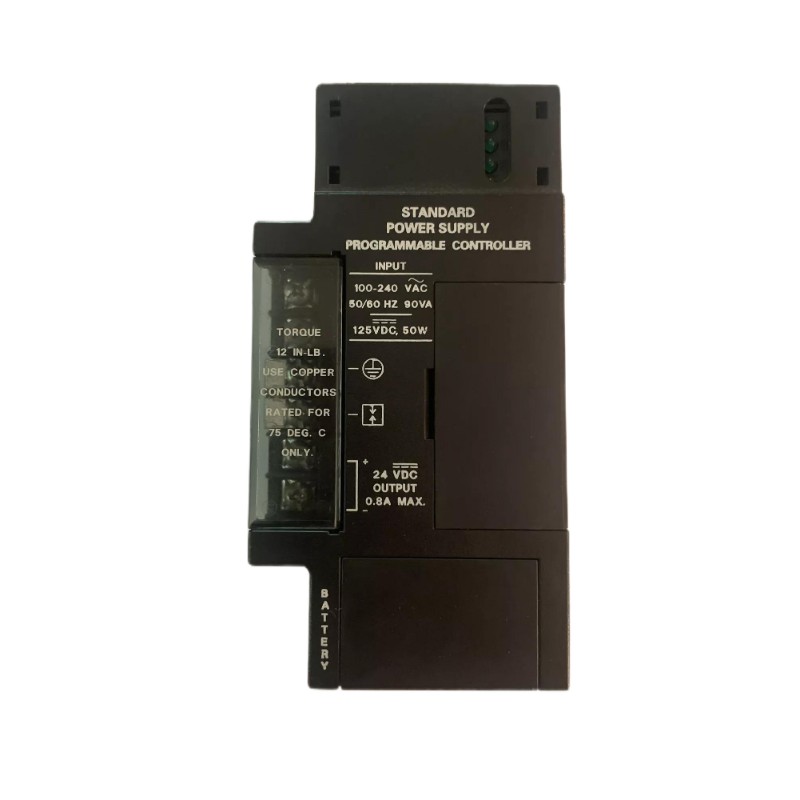

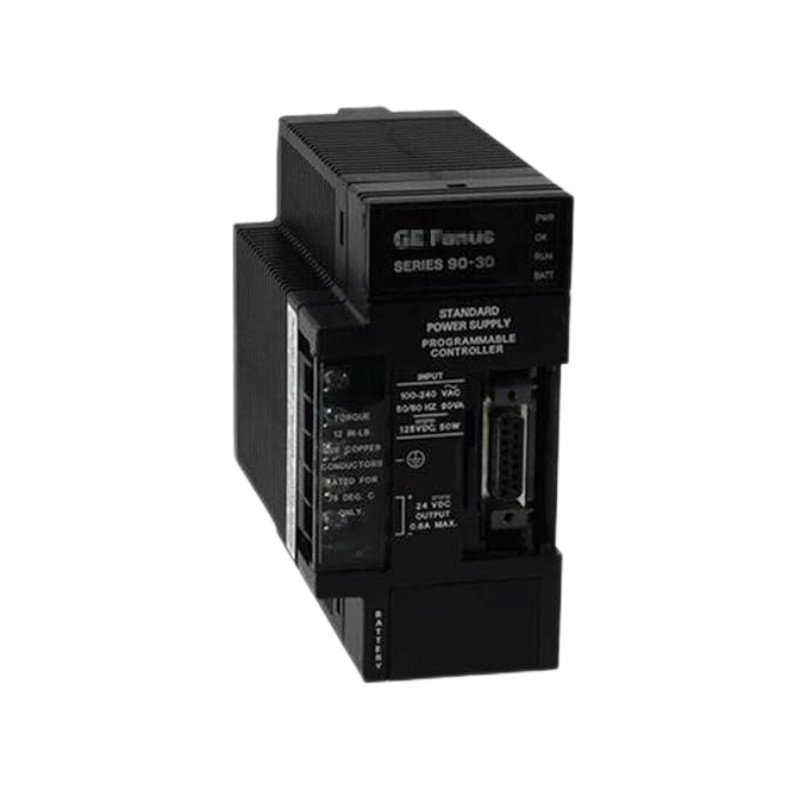

GE Fanuc IC693PWR321T Standard Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693PWR321T |
| Product Type | Standard Power Supply Module |
| Series Compatibility | GE Fanuc Series 90-30 PLC System |
| Module Function | Provides power conversion and distribution for PLC CPUs, I/O modules, and system components |
| Input Voltage Rating | 120/240 VAC or 125 VDC |
| AC Input Voltage Range | 85 to 264 VAC |
| DC Input Voltage Range | 100 to 300 VDC |
| Input Frequency | 50/60 Hz |
| Rated Output Power | 30 W maximum |
| Output Voltage | +5 VDC, +24 VDC Relay Output, Isolated +24 VDC |
| +5 VDC Output Capacity | 15 W maximum |
| +24 VDC Relay Output Capacity | 15 W maximum |
| Isolated +24 VDC Output Capacity | 20 W maximum |
| Inrush Current | 4 A peak, 250 ms maximum |
| Overvoltage Protection | Provides output voltage protection for system safety |
| Overcurrent Protection | Includes current limiting protection for overload conditions |
| Hold-up Time | 20 ms minimum |
| Installation Position | Leftmost slot of GE Fanuc Series 90-30 PLC baseplate |
| Status Indicators | LED indicators for power status and diagnostics |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 130 mm × 50 mm × 135 mm |
| Weight | Approx. 0.51 kg |
| Application Areas | Industrial automation, PLC control systems, machine equipment, and process control |
| Reliability Features | Provides stable power output with protective functions for long-term industrial operation |
FAQ
Q1: What is the IC693PWR321T designed for?
- The IC693PWR321T is a standard power supply module designed for GE Fanuc Series 90-30 PLC systems. It provides reliable power for CPU modules, I/O modules, and other PLC components.
Q2: What input power sources are supported by the IC693PWR321T?
- The module supports 120/240 VAC and 125 VDC input power sources, allowing flexible integration into different industrial electrical systems.
Q3: What output voltages does the IC693PWR321T provide?
- The module provides +5 VDC power for PLC logic circuits, +24 VDC relay power, and isolated +24 VDC output for compatible system requirements.
Q4: What is the maximum output capacity of the IC693PWR321T?
- The module supports up to 30 W total output power, with separate capacity ratings for different voltage outputs.
Q5: Where is the IC693PWR321T installed in a PLC system?
- The module is installed in the leftmost slot of a compatible GE Fanuc Series 90-30 PLC baseplate.
Q6: Does the IC693PWR321T have protection functions?
- Yes. The module includes protection features such as overvoltage protection, overcurrent protection, and status monitoring to improve system reliability.
Q7: What applications use the IC693PWR321T?
- The module is commonly used in industrial automation systems, manufacturing equipment, process control applications, and existing Series 90-30 PLC installations.
Q8: What should be checked before replacing an IC693PWR321T?
- Before replacement, users should verify input voltage compatibility, PLC baseplate configuration, power requirements, wiring connections, and system load conditions.
GE Fanuc IC693PWR321T Standard Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
