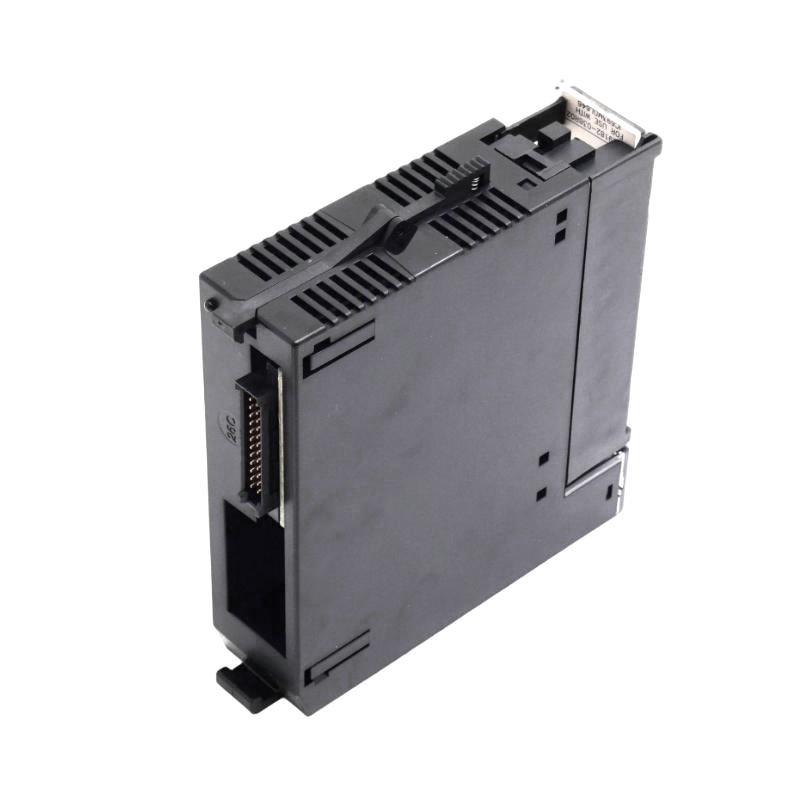

GE Fanuc IC693TCM302 Temperature Control Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
IC693TCM302
| Parameter | Specification |
|---|---|
| Product Model | IC693TCM302 |
| Product Type | Temperature Control Module (TCM) |
| Series | GE Fanuc Series 90-30 PLC |
| Function | Provides 8-channel thermocouple input + 8-channel temperature control output in one module |
| System Role | PLC special function I/O module (not CPU) |
| Application Area | Industrial temperature control, furnace systems, process heating, multi-zone thermal control |
| Input Channels | 8 × thermocouple inputs |
| Output Channels | 8 × control outputs (typically 24 VDC PWM / relay-driven control signals) |
| Control Mode | Closed-loop PID control or open-loop manual mode per channel |
| Thermocouple Types | J, K, L (typical support depending configuration) |
| Temperature Range | J: 0–450°C, K: 0–600°C, L: 0–450°C |
| Resolution | ~0.2°C (12-bit conversion) |
| Accuracy | ±1°C (with auto calibration) |
| Update Time | ~100 ms per channel |
| Cold Junction Compensation | Supported |
| Diagnostics | Open thermocouple detection, reverse wiring detection, out-of-range alarms |
| Control Function | Independent 8-zone temperature regulation |
| Output Type | PWM / discrete control output (used for heater switching) |
| Backplane Interface | Series 90-30 rack backplane |
| Power Consumption | ~150 mA @ 5 VDC (internal) |
| External Power | 18–30 VDC (system dependent for field side) |
| Isolation | Field-to-logic isolation (~1500 VAC) |
| Indicators | Per-channel status LEDs + module status LED |
| Mounting Type | Series 90-30 PLC rack module |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (approx.) | ~140 mm × 140 mm × 40 mm |
| Weight | ~0.2–0.4 kg |
FAQ
What is IC693TCM302 used for?
It is a multi-zone temperature control module used to both measure and control temperature in industrial systems like ovens, furnaces, and heating processes.
Is it a PLC or I/O module?
It is a specialized I/O module (TCM), not a PLC CPU.
What makes it special?
Unlike normal input modules, it includes:
- 8 thermocouple inputs
- 8 built-in control outputs
- PID control per channel
Where is it commonly used?
It is widely used in industrial heating systems and process temperature control applications within GE Series 90-30 PLC systems.
GE Fanuc IC693TCM302 Temperature Control Module is in stock. Please contact us for a quick quote and competitive pricing.
