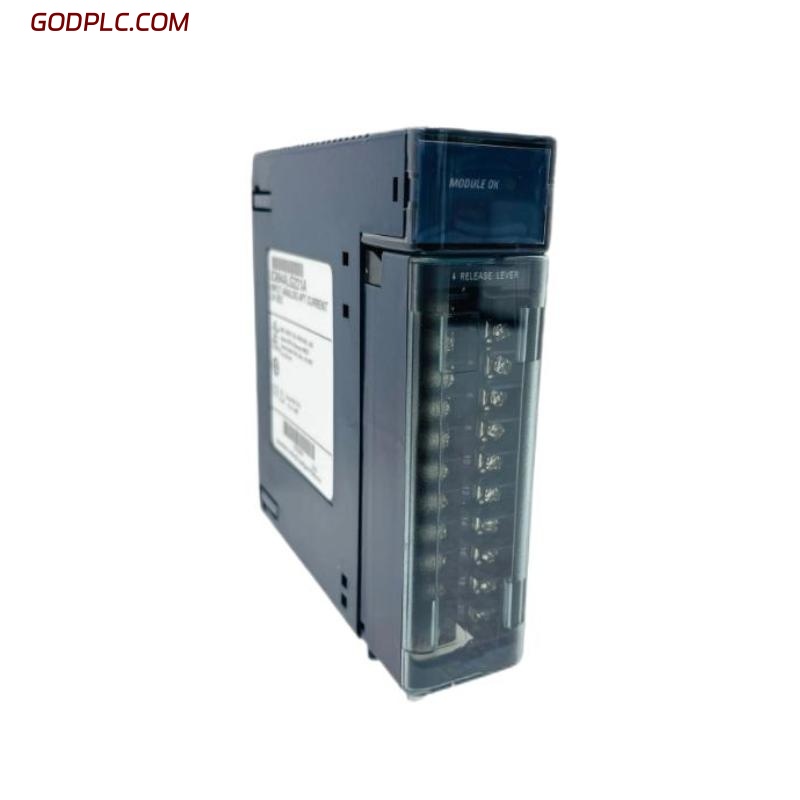

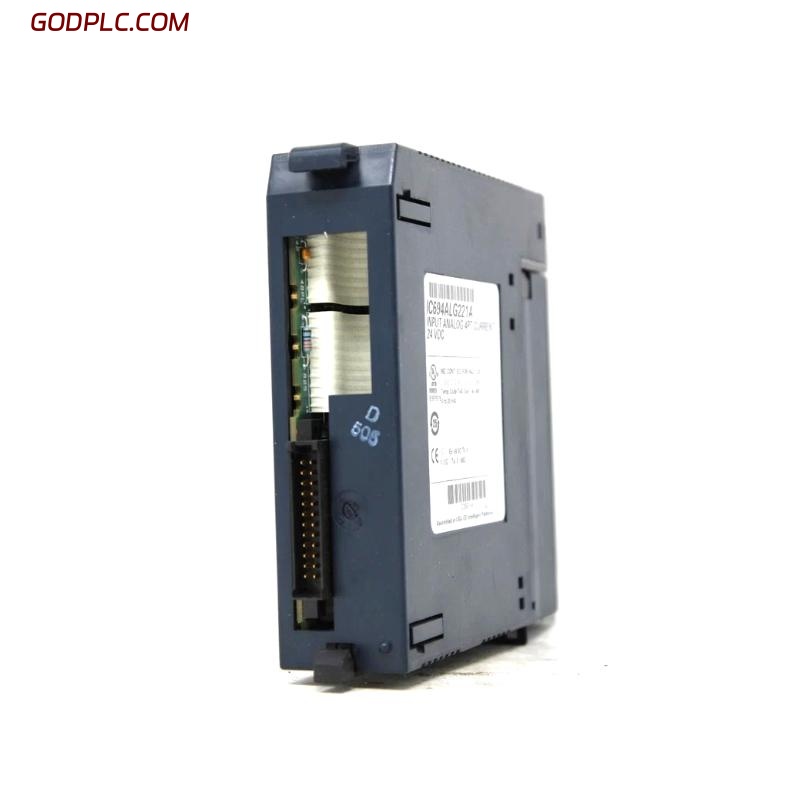

GE Fanuc IC694ALG221 Analog Input Module
Product Overview
The GE Fanuc IC694ALG221 Analog Input Module is designed to provide high-accuracy analog input for GE Fanuc PLC systems. It allows seamless integration with various analog field devices such as temperature sensors, pressure transmitters, and flow meters. The IC694ALG221 features 8 analog input channels, offering reliable and precise signal conversion from field devices to the PLC, ensuring accurate data acquisition for process control and automation applications.
Key Features
-
8 Analog Input Channels – Provides up to 8 channels for monitoring analog signals from field devices such as sensors and transmitters
-
High Resolution and Accuracy – Ensures precise analog signal conversion with a resolution of 16 bits, enabling fine control and accurate measurement
-
Multiple Input Types Supported – Accepts voltage and current input signals, including 0–10 V, 4–20 mA, and ±10 V, providing flexibility for various field devices
-
Built-in Signal Conditioning – Includes integrated signal conditioning, reducing the need for external equipment and simplifying installation
-
Over-voltage Protection – Protects against input over-voltage conditions, ensuring the safety and longevity of the module
-
Diagnostic LED Indicators – Provides visual status indicators for each input channel, simplifying troubleshooting and maintenance
-
Industrial-Grade Design – Built to withstand demanding industrial environments, ensuring reliability in harsh conditions such as vibration, temperature extremes, and electrical noise
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 34 x 145 x 140mm |
| Weight | 0.35 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 0–10 VDC, ±10 VDC, 4–20 mA |
| Input Channels | 8 analog input channels |
| Resolution | 16 bits |
| Input Impedance | > 1 MΩ (for voltage inputs) |
| Input Current | 4–20 mA (for current inputs) |
| Isolation | Electrical isolation for signal integrity |
| Over-voltage Protection | Yes (for each channel) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when installed) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with GE Fanuc PLC systems |
| Compatible Modules | GE Fanuc PLC I/O modules and expansion units |
| Module Type | Analog Input Module for precise signal acquisition |
Industry Applications
-
Industrial Automation – Used in applications requiring precise analog measurements such as temperature, pressure, and flow monitoring in manufacturing environments
-
Process Control – Essential for gathering real-time data from process sensors and transmitters, supporting control and monitoring in chemical, oil, and gas industries
-
Building Automation – Monitors analog signals for HVAC systems, lighting controls, and energy management in commercial and industrial buildings
-
Energy Management – Collects data from energy meters, transformers, and power sensors in energy generation and distribution systems
-
Water/Wastewater Treatment – Provides accurate measurement of flow, level, and pressure signals in water and wastewater treatment plants
The GE Fanuc IC694ALG221 Analog Input Module is a versatile and reliable solution for acquiring high-precision analog signals in GE Fanuc PLC systems. Its high-resolution capability, robust design, and diagnostic features make it an excellent choice for a wide range of industrial and process control applications.
GE Fanuc IC694ALG221 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
