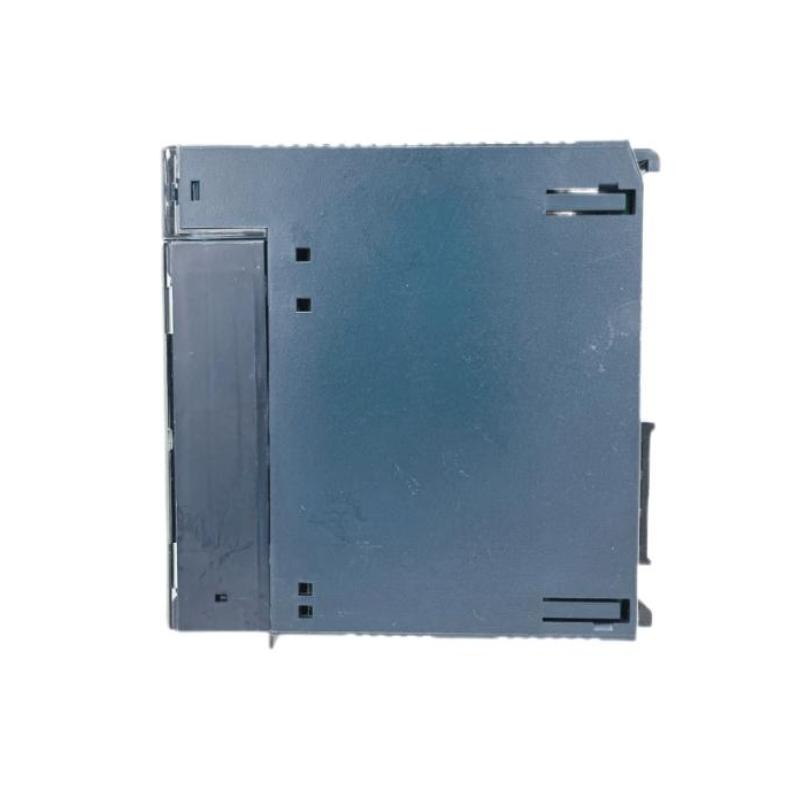

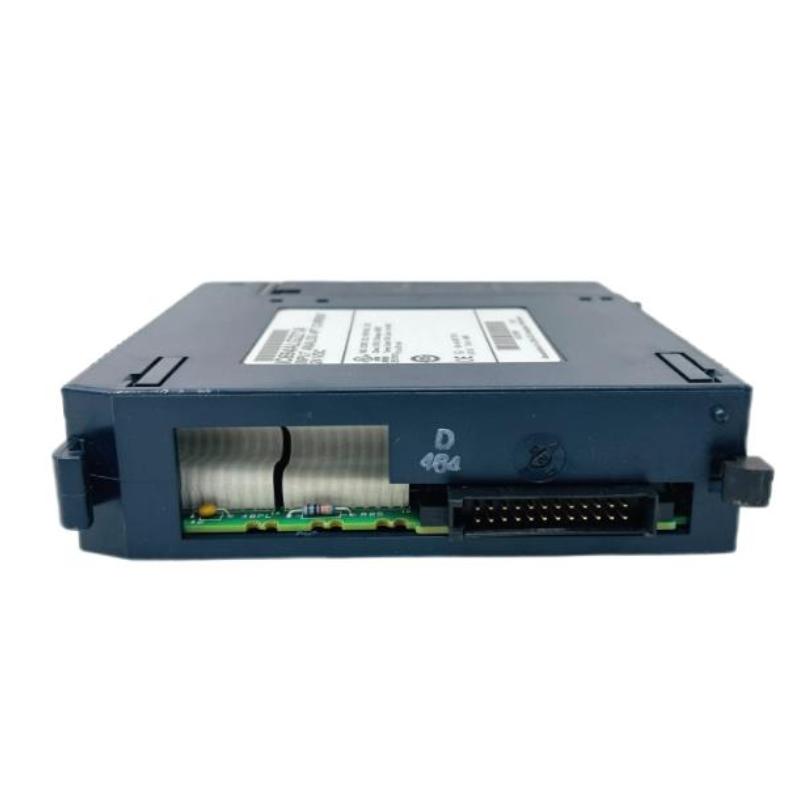

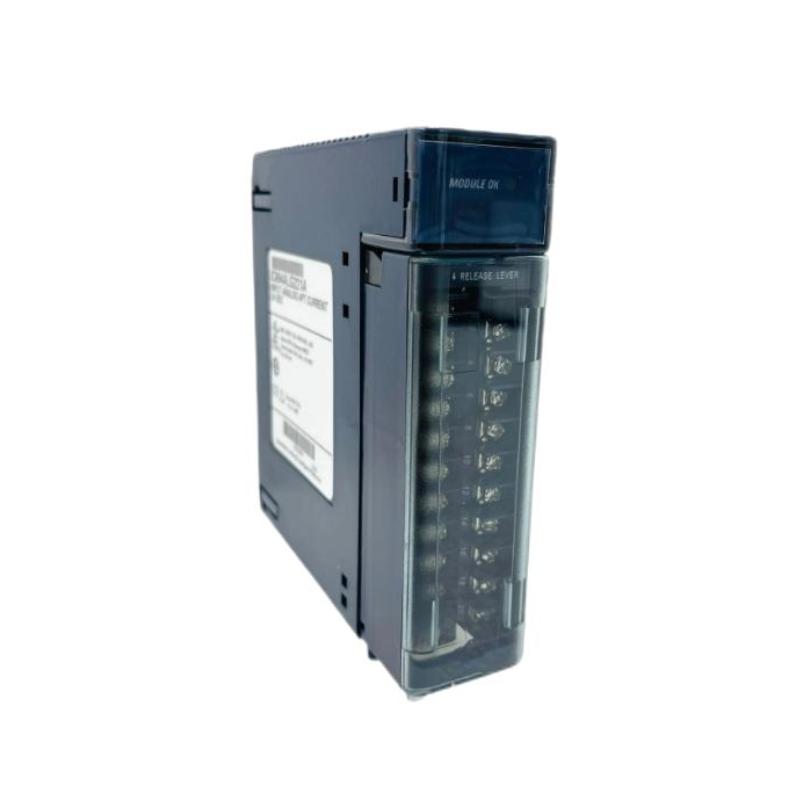

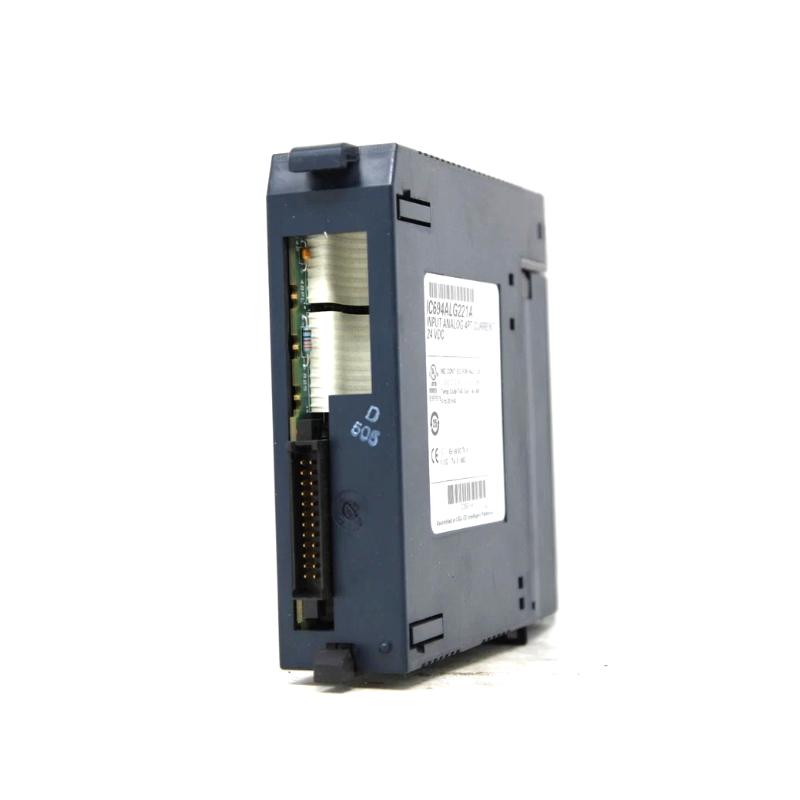

GE Fanuc IC694ALG221A Analog Current Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC694ALG221A |
| Product Series | GE Fanuc PACSystems RX3i |
| Product Type | Analog Current Input Module |
| Module Function | Converts analog current signals into digital values for RX3i PLC processing |
| Number of Input Channels | 4 channels |
| Input Configuration | Differential current inputs |
| Input Signal Type | Analog current input |
| Input Current Range | 0 to 20 mA / 4 to 20 mA |
| Resolution | 12-bit |
| Resolution at 4 to 20 mA | 4 µA per count |
| Resolution at 0 to 20 mA | 5 µA per count |
| Conversion Speed | 0.5 ms per channel |
| Channel Update Rate | 2 ms for all channels |
| Accuracy | ±0.1% of full scale + ±0.1% of reading |
| Input Impedance | 250 Ω |
| Input Filter Response | 325 Hz |
| Common Mode Voltage | 200 V maximum |
| Linearity | Less than 1 LSB |
| Isolation Type | Optical isolation between field wiring and backplane |
| Isolation Rating | 250 VAC continuous; 1500 VAC for 1 minute |
| Calibration | Factory calibrated |
| Power Consumption | 25 mA at 5 VDC backplane supply; 100 mA at isolated 24 VDC supply |
| Status Indicators | Module OK LED |
| Terminal Connection | 20-screw terminal block |
| Installation Method | PACSystems RX3i chassis I/O slot installation |
| Compatibility | GE Fanuc / Emerson PACSystems RX3i PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 130 × 51 × 119 mm (5.12 × 2.01 × 4.69 in) |
| Weight | Approximately 0.40 kg (0.88 lb) |
| Typical Applications | Process monitoring, transmitter signal acquisition, industrial measurement, and closed-loop control systems |
FAQ
Q1: What is the main function of the IC694ALG221A?
A: The IC694ALG221A is a four-channel analog current input module designed for PACSystems RX3i PLC systems. It converts field current signals into digital data for monitoring and control applications.
Q2: How many analog input channels does the IC694ALG221A provide?
A: The module provides four differential analog current input channels, allowing multiple field transmitters or sensors to be connected within one PLC system.
Q3: What input signals are supported by the IC694ALG221A?
A: The module supports standard industrial current signals, including 0 to 20 mA and 4 to 20 mA input ranges.
Q4: What type of field devices can be connected to the IC694ALG221A?
A: The module can connect to current-output devices such as pressure transmitters, flow meters, temperature transmitters, level sensors, and other industrial measurement instruments.
Q5: Does the IC694ALG221A require an external power supply?
A: The module requires the appropriate system power supply configuration to operate correctly. Users should confirm chassis and power requirements before installation.
Q6: Does the IC694ALG221A provide signal isolation?
A: Yes. The module provides optical isolation between field wiring and the PLC backplane, improving noise immunity and protecting the control system.
Q7: Can the IC694ALG221A be installed while the PLC system is powered?
A: No. The module should be installed or removed only when the chassis power is turned off to prevent damage and ensure safe operation.
Q8: What should be checked when replacing an IC694ALG221A module?
A: Verify RX3i system compatibility, input signal range, terminal wiring, power requirements, channel configuration, and PLC program settings before replacement.
