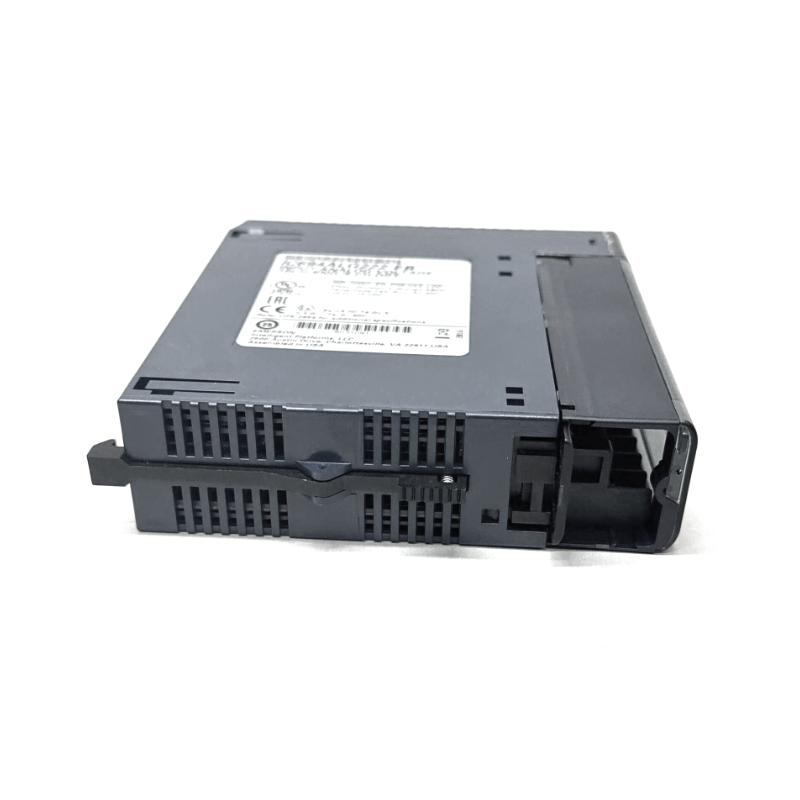

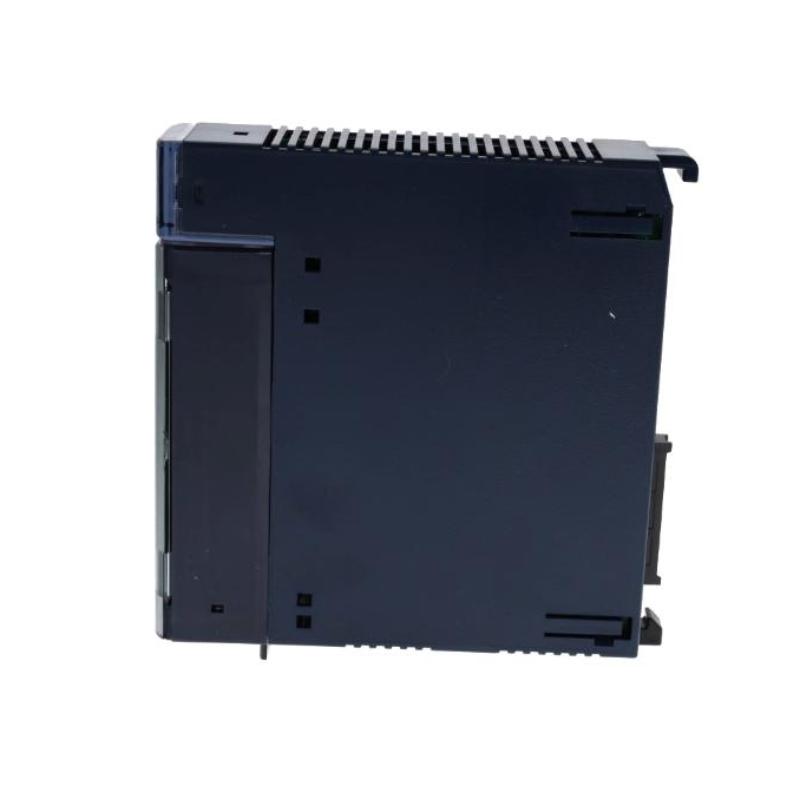

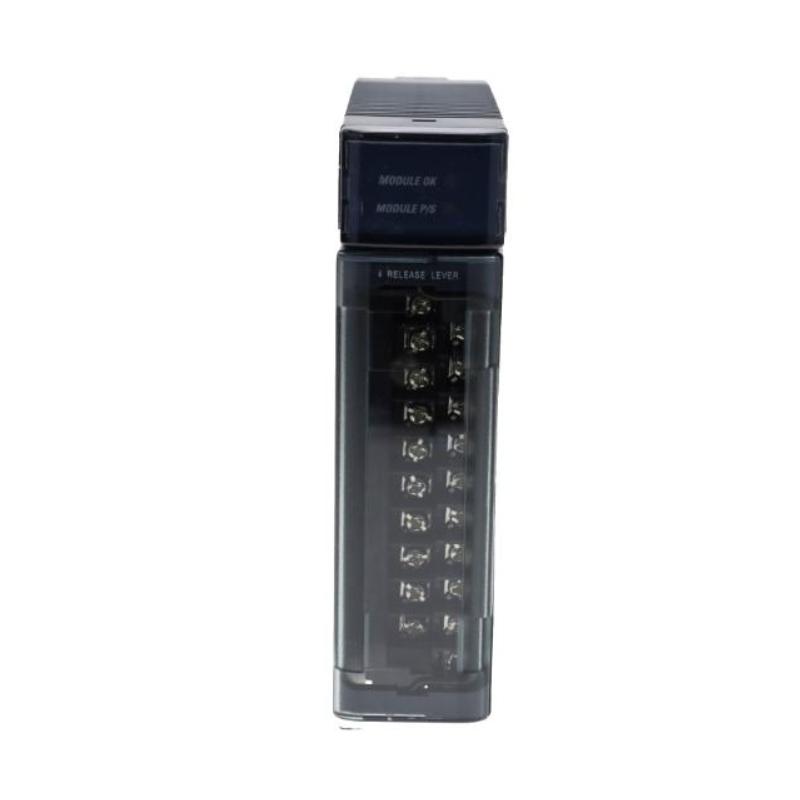

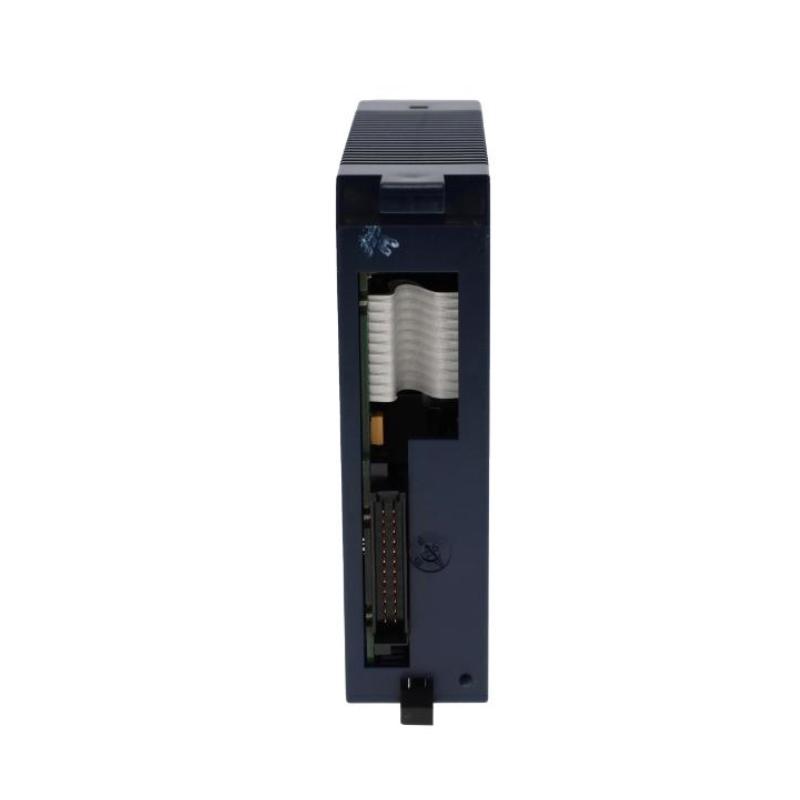

GE Fanuc IC694ALG223 Analog Current Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC694ALG223 |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | PACSystems RX3i |
| Product Type | Analog Current Input Module |
| Main Function | Converts analog current signals from field transmitters into digital values for PLC CPU processing |
| Application | Industrial automation, process control, flow/pressure/temperature monitoring, transmitter signal acquisition, and analog data processing |
| Input Type | Analog current input |
| Number of Inputs | 16 channels |
| Input Configuration | Single-ended inputs |
| Input Signal Range | 0–20 mA / 4–20 mA / 4–20 mA Enhanced selectable per channel |
| Resolution | 12-bit |
| Resolution (4–20 mA) | 4 μA per bit |
| Resolution (0–20 mA) | 5 μA per bit |
| Resolution (4–20 mA Enhanced) | 5 μA per bit |
| Input Impedance | 250 Ω |
| Conversion Method | Analog-to-digital conversion |
| Update Rate | Approximately 13 ms for all 16 channels |
| Accuracy | ±0.25% of full scale at 25°C; ±0.5% of full scale over operating temperature range |
| Linearity | Less than 1 LSB |
| Input Filter Response | 19 Hz low-pass filter |
| Channel Rejection | Greater than 80 dB from DC to 1 kHz |
| Isolation Type | Optical isolation between field side, backplane, and frame ground |
| Isolation Rating | 250 VAC continuous; 1500 VAC for 1 minute |
| External Power Supply | 20–30 VDC required |
| External Power Consumption | Approximately 65 mA from 24 VDC supply |
| Backplane Power Consumption | Approximately 120 mA from 5 VDC backplane bus |
| LED Indicators | Module OK status LED and external power status LED |
| Terminal Connection | Removable screw terminal block |
| Mounting Type | PACSystems RX3i rack mounting |
| Installation Position | Any available I/O slot in RX3i system |
| Compatible Modules | PACSystems RX3i CPU, power supply, communication modules, and I/O modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 130 mm × 35 mm × 125 mm |
| Weight | Approximately 0.51 kg |
| Compatibility | GE Fanuc / Emerson PACSystems RX3i PLC systems |
FAQ
Q1: What is the main function of the IC694ALG223?
A: The IC694ALG223 is a PACSystems RX3i analog input module used to collect 0–20 mA and 4–20 mA current signals from field devices and convert them into digital values for PLC processing.
Q2: How many analog input channels does the IC694ALG223 provide?
A: The module provides 16 single-ended analog current input channels.
Q3: What input signals are supported by the IC694ALG223?
A: Each channel can be configured for 0–20 mA, 4–20 mA, or 4–20 mA Enhanced input ranges.
Q4: What is the resolution of the IC694ALG223?
A: The module provides 12-bit analog-to-digital conversion resolution.
Q5: Does the IC694ALG223 require an external power supply?
A: Yes. The module requires a user-supplied 20–30 VDC external power source in addition to backplane power.
Q6: What type of devices can be connected to the IC694ALG223?
A: It can connect to industrial current-loop devices such as pressure transmitters, flow meters, temperature transmitters, and other 4–20 mA sensors.
Q7: What should be checked before replacing an IC694ALG223 module?
A: Verify RX3i compatibility, channel configuration, current signal range, external 24 VDC supply, field wiring, terminal connections, and PLC configuration.
Q8: How can the reliability of the IC694ALG223 be maintained?
A: Maintain proper analog wiring practices, use shielded cables where required, ensure stable loop power, keep terminals secure, and perform regular PLC diagnostics.
GE Fanuc IC694ALG223 Analog Current Input Module is in stock. Please contact us for a quick quote and competitive pricing.
