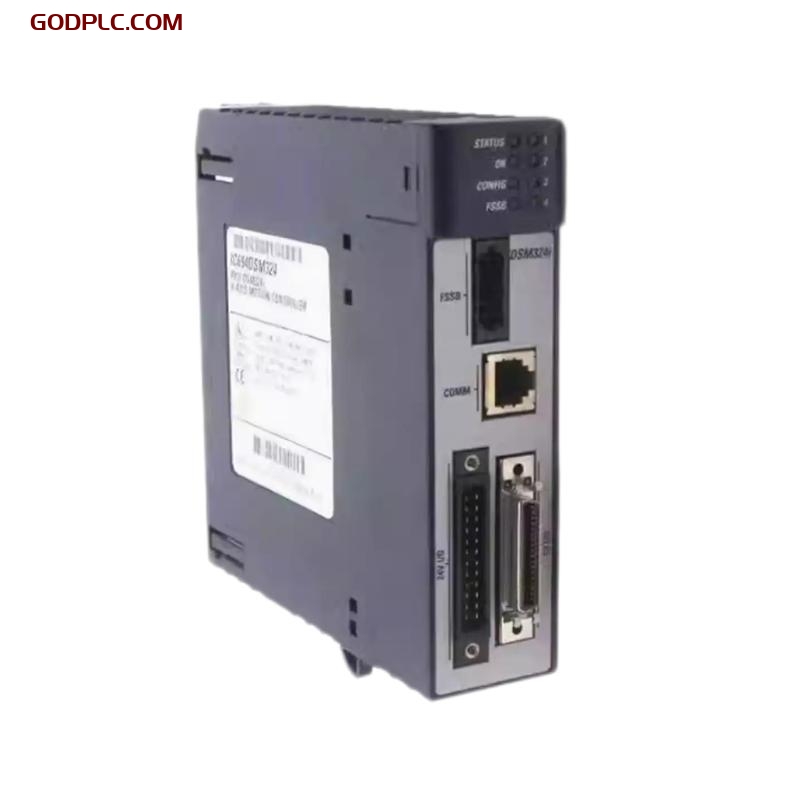

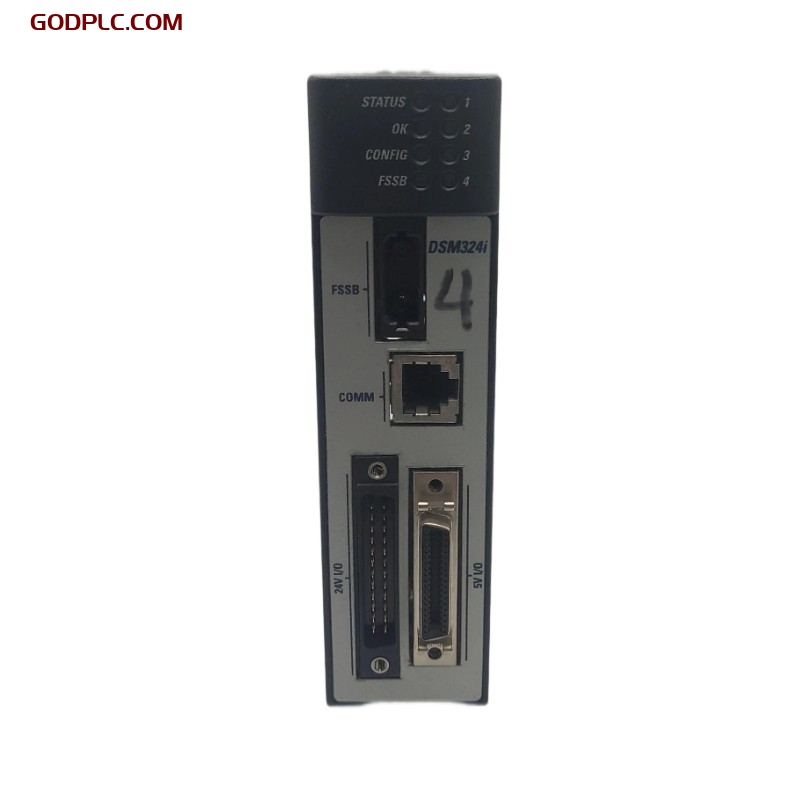

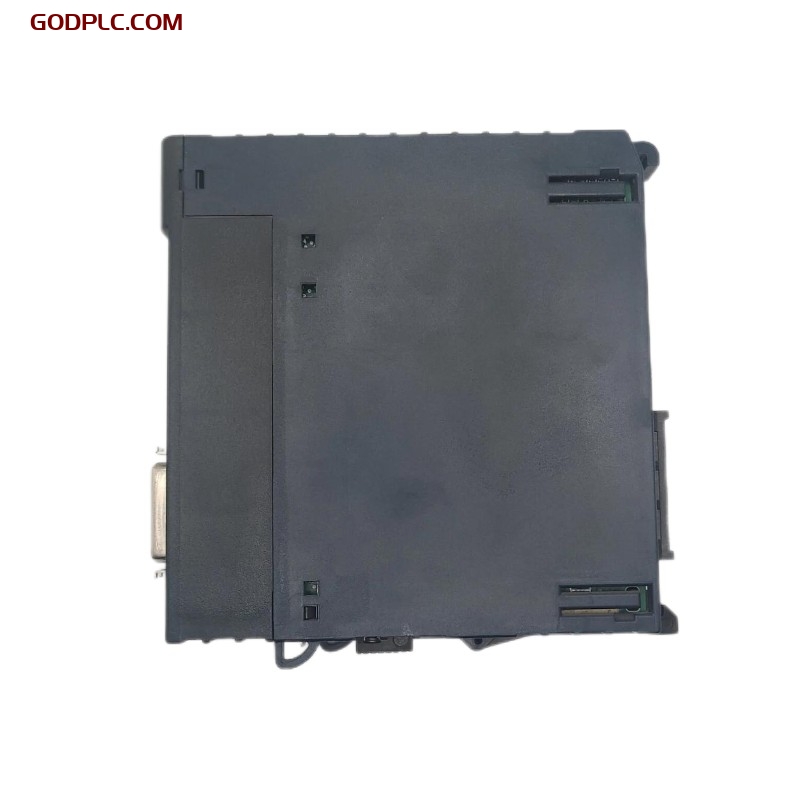

GE Fanuc IC694DSM324 Motion Controller Module
Product Overview
The GE Fanuc IC694DSM324 is a powerful Motion Controller Module designed for precise and synchronized motion control within the PACSystems RX3i platform. It supports advanced control of servo and stepper motors and integrates seamlessly with GE Fanuc’s automation systems. With high-speed processing, real-time feedback, and deterministic control loops, the DSM324 module is ideal for demanding motion control applications in packaging, material handling, CNC machines, and robotics.
Key Features
-
Multi-Axis Control: Supports control of up to two independent axes of motion, enabling complex coordinated movement.
-
High-Speed Communication: Utilizes fiber-optic SERCOS interface for fast, noise-immune communication with servo drives.
-
Integrated Motion Functions: Offers built-in capabilities for position, velocity, torque, homing, and camming operations.
-
Real-Time Feedback: Provides deterministic control loops with high-speed feedback for precise motion control.
-
Easy Configuration: Compatible with GE Fanuc’s programming tools, simplifying setup and reducing engineering time.
-
Diagnostics and Status Monitoring: Built-in LED indicators and software diagnostics for quick fault detection and resolution.
-
Robust Design: Designed to withstand industrial environments with wide operating temperature range and high immunity to interference.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 mm (H) × 35 mm (W) × 120 mm (D) |
| Weight | 0.3 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | IC694DSM324 |
| Module Type | Motion Controller Module |
| Communication Interface | SERCOS (fiber-optic) |
| Axes Supported | 2 independent or coordinated axes |
| Motion Functions | Position, Velocity, Torque, Camming, Homing |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | Supplied via RX3i backplane |
| Power Consumption | < 6 W |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Platform | GE Fanuc PACSystems RX3i |
| Programming Software | Machine Edition (Proficy Logic Developer) |
| Servo Interface | SERCOS fiber-optic |
Industry Applications
-
Packaging Machinery: Enables precise synchronization for high-speed packaging lines.
-
Material Handling: Controls conveyor systems and robotic arms for flexible automation.
-
CNC Machines: Drives coordinated motion in milling, turning, and grinding machines.
-
Robotics: Offers deterministic motion control for robotic joints and automated systems.
-
Assembly Automation: Supports pick-and-place and repetitive motion sequences in manufacturing lines.
The GE Fanuc IC694DSM324 Motion Controller Module delivers high-performance, real-time motion control tailored to industrial automation environments. Its seamless integration with the RX3i platform and robust motion capabilities make it an essential choice for precision-driven applications.
GE Fanuc IC694DSM324 Motion Controller Module is in stock. Please contact us for a quick quote and competitive pricing.
