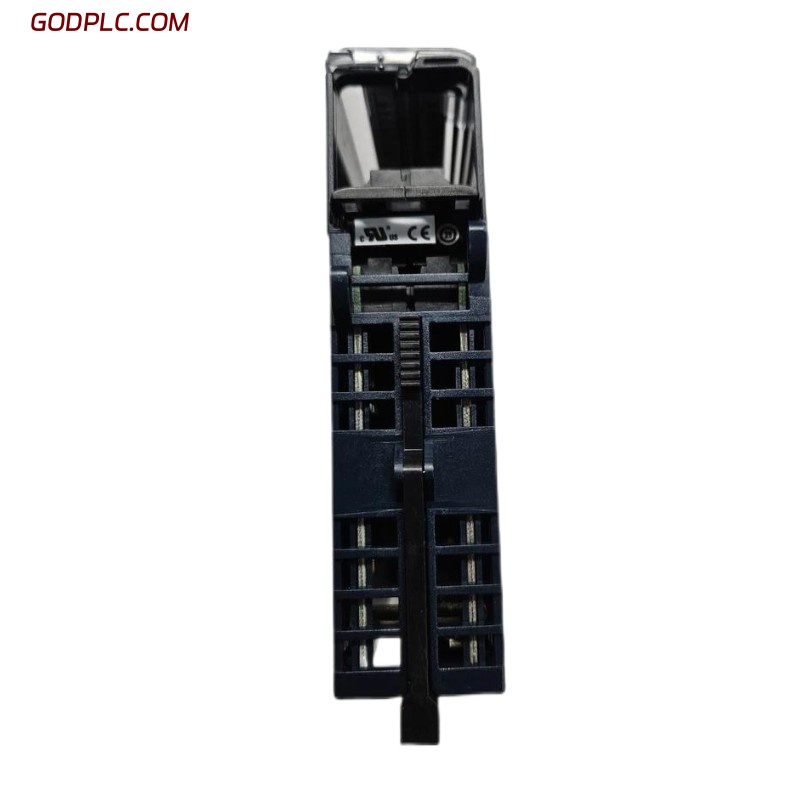

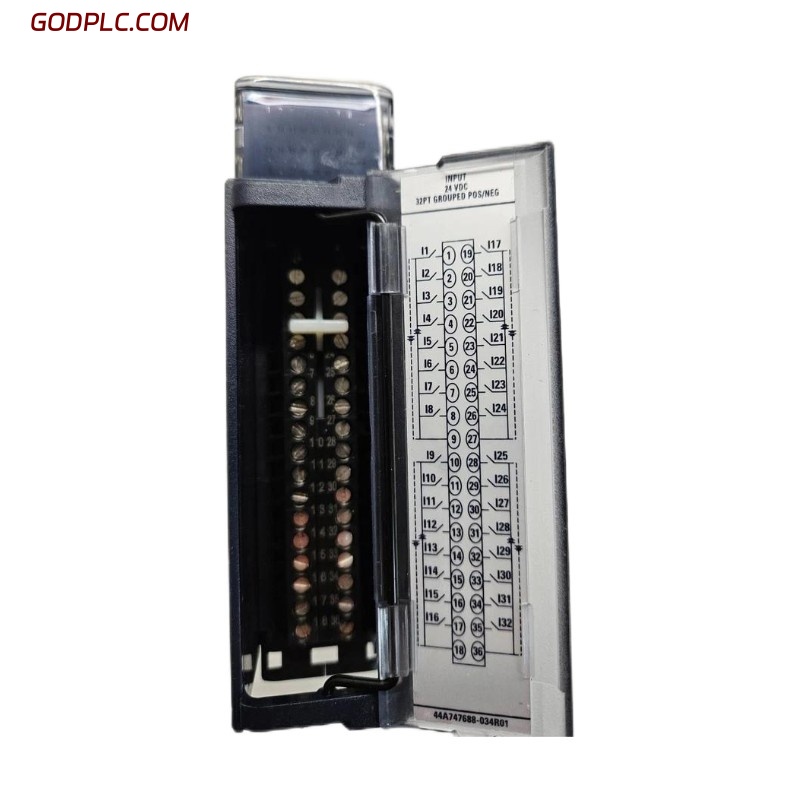

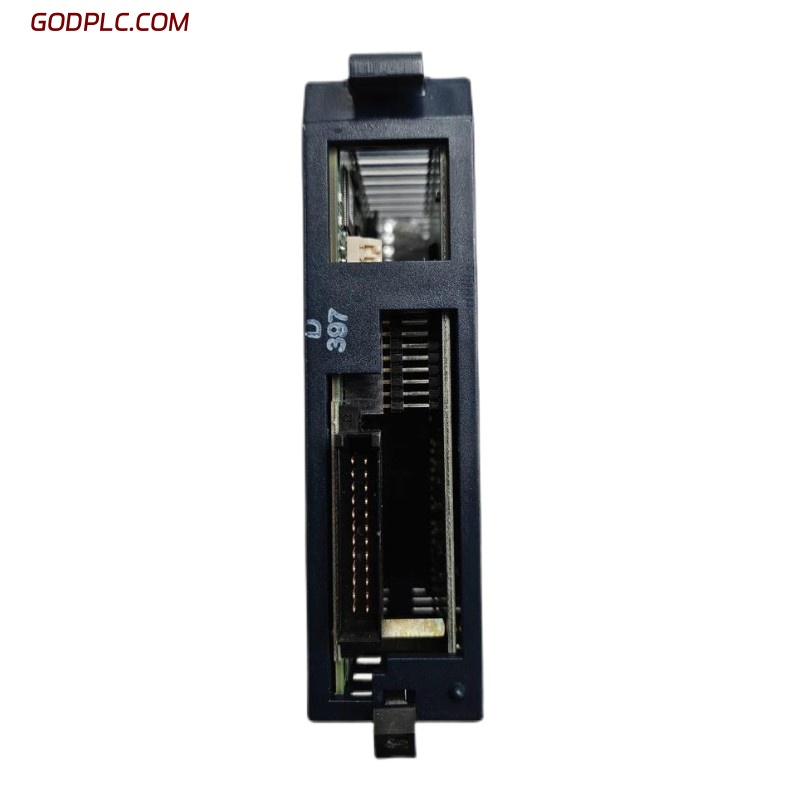

GE Fanuc IC694MDL660 RX3i Input Module
Product Overview
The GE Fanuc IC694MDL660 RX3i Input Module is designed for use with the GE Fanuc RX3i Programmable Logic Controllers (PLCs), offering high-speed digital input capabilities for various industrial automation systems. This module features 32 channels of 24V DC digital inputs, making it suitable for interfacing with a broad range of industrial devices, including sensors, switches, and actuators. With built-in diagnostics and robust protection features, the IC694MDL660 ensures reliable performance even in harsh industrial environments.
Key Features
-
32 Digital Input Channels: Supports 24V DC input, providing flexibility for various industrial applications.
-
Isolation: Each channel is isolated from the PLC to protect against electrical interference and noise.
-
Fast Response Time: Designed for quick, real-time control of industrial processes with minimal delay.
-
Built-In Diagnostics: Includes status LEDs for each input channel to facilitate easy system diagnostics and troubleshooting.
-
Overvoltage Protection: Built-in circuitry protects the module from electrical faults and overvoltage conditions.
-
Compact and Space-Saving Design: Efficiently integrates into the RX3i backplane, saving valuable panel space.
-
Easy Integration: Seamlessly integrates with other RX3i modules, providing a scalable solution for control systems.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Diameter | 34 x 145 x 140 mm |
| Weight | 0.91 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24V DC (Nominal) |
| Input Current (Nominal) | 10 mA (per channel) |
| Number of Inputs | 32 Channels |
| Input Type | Sinking (Common) |
| Input Voltage Range | 19.2V to 30V DC |
| Input Impedance | 4.7 kΩ |
| Response Time | 5 ms (typical) |
| Overvoltage Protection | Yes, built-in |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Vibration/Shock | IEC 60068-2 compliant |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | GE Fanuc RX3i Series PLCs |
| Communication | Direct integration via RX3i backplane |
| Module Type | Digital Input Module |
Industry Applications
-
Industrial Automation: Ideal for interfacing with sensors, actuators, and other field devices for control and monitoring in automation systems.
-
Manufacturing: Perfect for controlling production lines, machinery status monitoring, and real-time process control.
-
Energy & Utilities: Used for reliable monitoring of system inputs in energy generation and distribution systems.
-
Oil & Gas: Suitable for harsh environments, providing digital input connections for critical equipment monitoring.
The GE Fanuc IC694MDL660 RX3i Input Module offers robust, high-performance digital input capabilities for industrial automation systems. Its compact design, advanced diagnostic features, and seamless integration with the RX3i PLC make it an essential component in industrial control applications.
GE Fanuc IC694MDL660 RX3i Input Module is in stock. Please contact us for a quick quote and competitive pricing.
