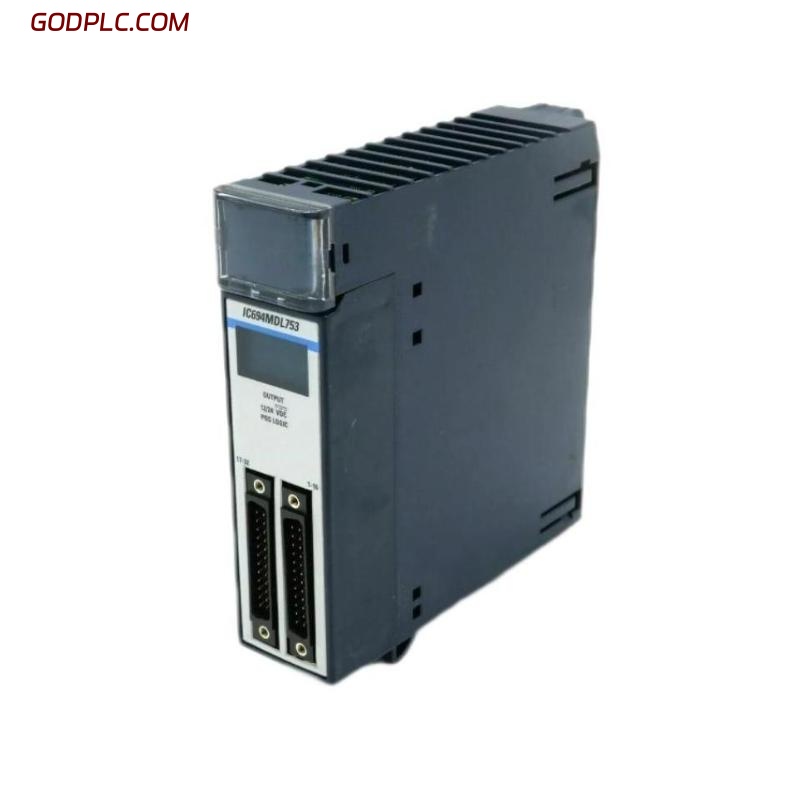

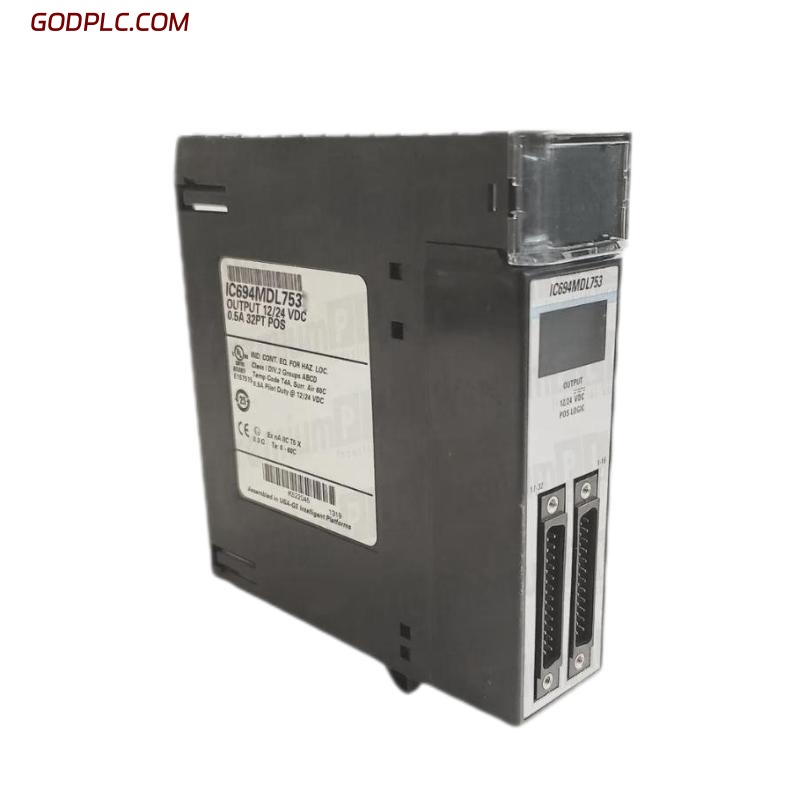

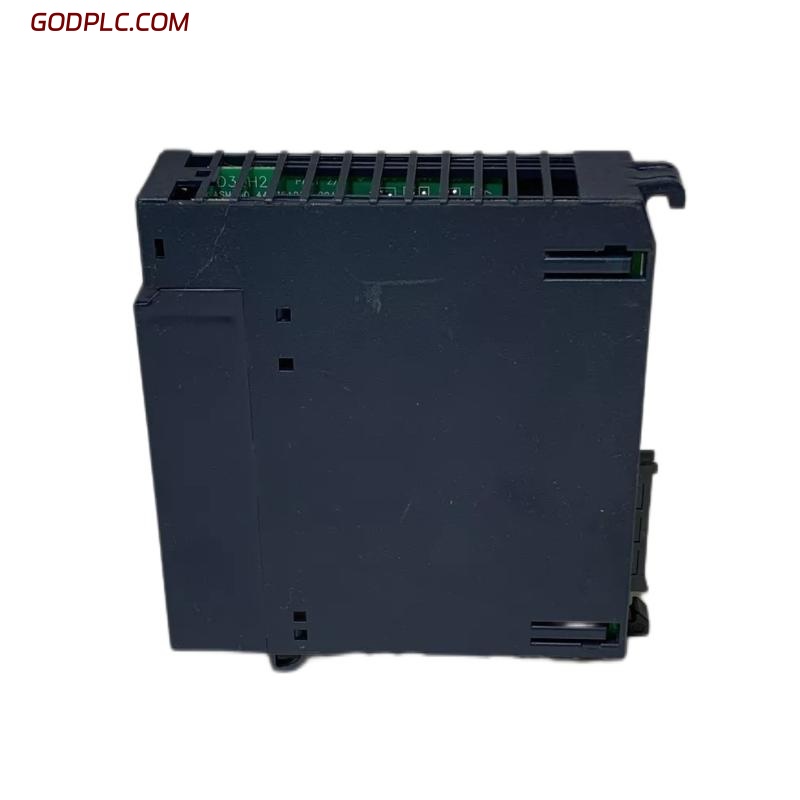

GE Fanuc IC694MDL753 Voltage Output Module
Product Overview
The GE Fanuc IC694MDL753 Voltage Output Module is designed for the GE Fanuc Series 90-30 programmable logic controllers (PLCs). This module provides 16 discrete voltage output channels, allowing for precise control of field devices requiring voltage signals. With the capability to output a wide range of voltages, this module is ideal for controlling analog actuators, drives, and other devices in industrial automation systems. The IC694MDL753 features excellent isolation to protect against electrical noise, ensuring reliable operation in demanding environments.
Key Features
-
16 Voltage Output Channels – Provides 16 discrete voltage output channels for control of multiple field devices
-
Wide Voltage Range – Capable of outputting voltages from 0 to 10 VDC, making it suitable for various applications
-
High Accuracy – Precision voltage control for consistent and reliable performance in process control systems
-
Optical Isolation – Protection against electrical interference and noise, ensuring stable operation in industrial environments
-
Built-in Diagnostics – Equipped with LED indicators for real-time status monitoring and quick troubleshooting
-
Seamless Integration – Fully compatible with the GE Fanuc Series 90-30 PLC for easy system integration and expansion
-
Industrial Durability – Designed to withstand the harsh conditions of industrial environments, ensuring long-lasting performance
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 34 x 145 x 140 mm |
| Weight | 0.249 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 16 voltage output channels |
| Output Voltage | 0 to 10 VDC |
| Output Resolution | 12-bit resolution |
| Isolation | Optically isolated outputs |
| Power Consumption | Approx. 2 W |
| Backplane Current | 75 mA (from PLC) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | NEMA-rated (cabinet-mounted) |
| Vibration/Shock | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| PLC Platform | GE Fanuc Series 90-30 |
| Module Type | Voltage Output Module |
| Communication | Modbus, Ethernet, PROFIBUS (via gateway) |
Industry Applications
-
Industrial Automation – Controls analog devices such as valves, actuators, and variable frequency drives (VFDs) in manufacturing processes
-
Energy & Utilities – Provides precise voltage signals for control systems in power generation, substations, and distribution networks
-
Water & Wastewater – Used in controlling pumps, sensors, and other field devices in water treatment and distribution systems
-
Oil & Gas – Controls actuators and other voltage-sensitive equipment in refinery and pipeline monitoring systems
-
Automated Testing Systems – Ensures accurate voltage output in automated testing, calibration, and diagnostic systems
The GE Fanuc IC694MDL753 Voltage Output Module offers precise voltage signal control and reliable performance for industrial control systems, making it ideal for a wide range of applications requiring accurate voltage output.
GE Fanuc IC694MDL753 Voltage Output Module is in stock. Please contact us for a quick quote and competitive pricing.
