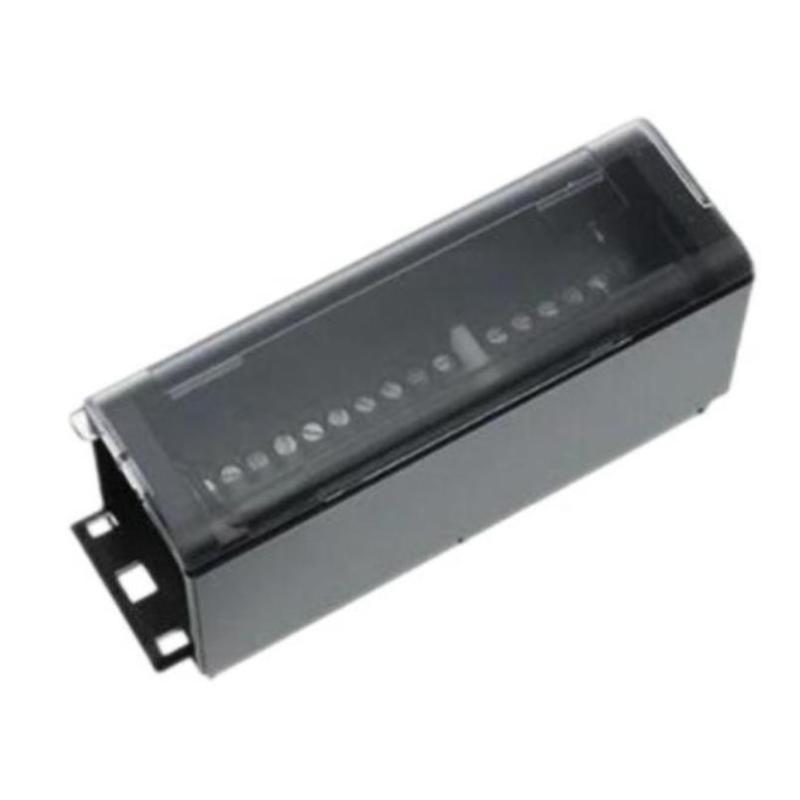

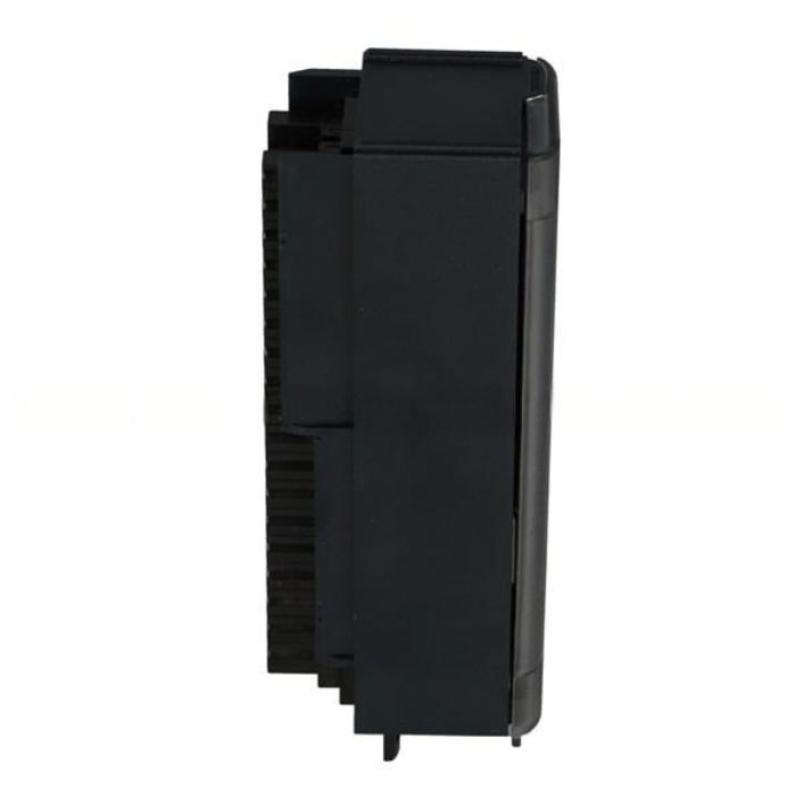

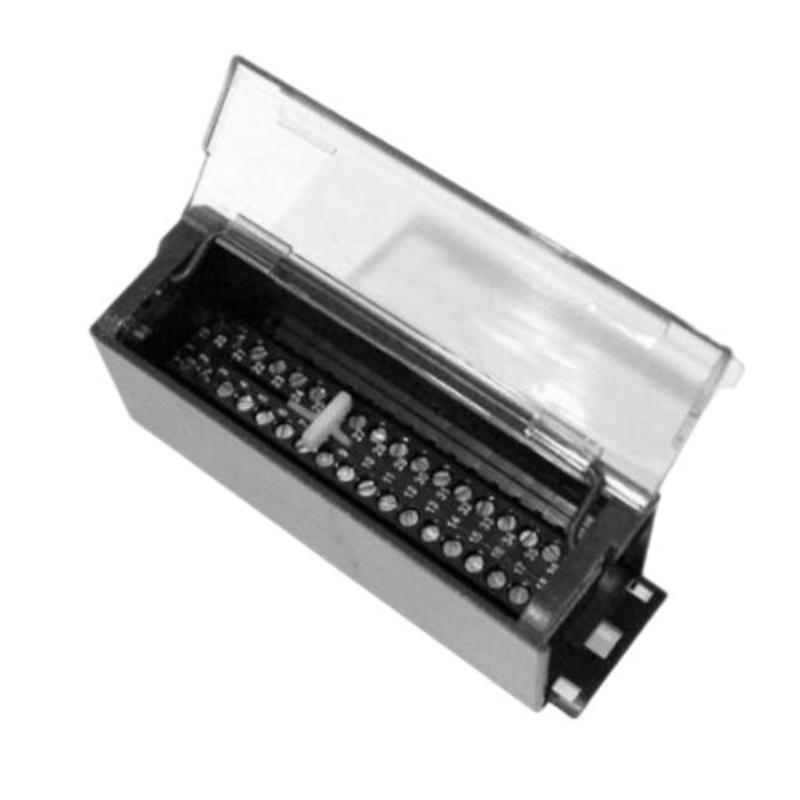

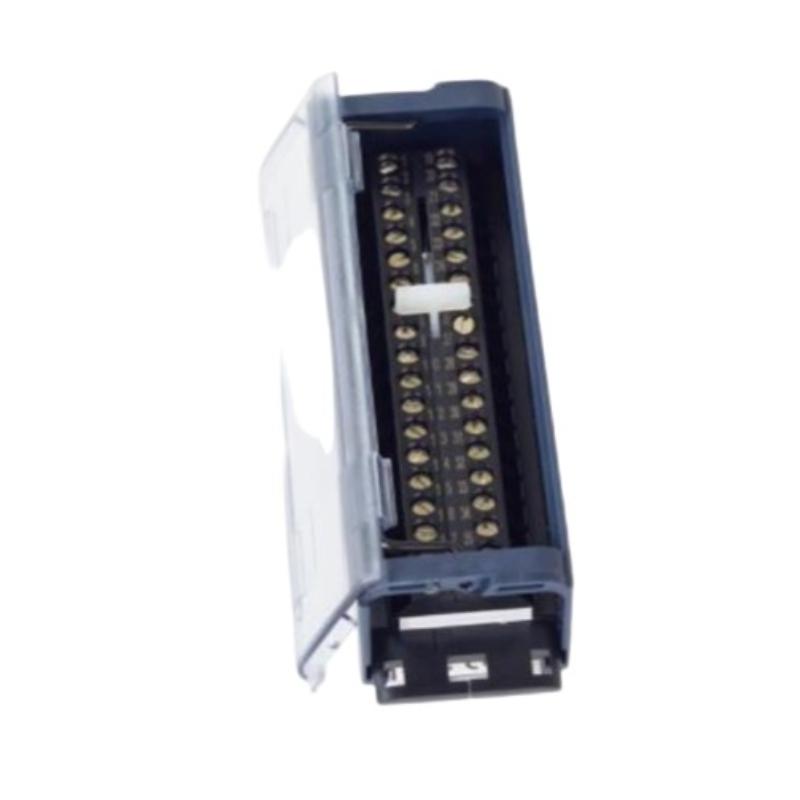

GE Fanuc IC694TBB132 High-Density Box-Style Terminal Block
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
IC694TBB132
| Parameter | Specification |
|---|---|
| Product Model | IC694TBB132 |
| Product Type | High-Density Box-Style Terminal Block (Extended Depth) |
| Series | GE Fanuc / Emerson PACSystems RX3i (IC694 family) |
| Function | Provides 36-point field wiring termination for high-density RX3i I/O modules |
| System Role | Terminal block accessory (not CPU, not I/O module) |
| Application Area | Industrial automation, PLC control cabinets, distributed I/O wiring systems |
| Terminal Count | 36 screw terminals |
| Terminal Type | Box-style screw clamp terminals |
| Wire Range | #14–26 AWG (solid or stranded) |
| Wire Strip Length | 7.87 mm (0.310 in) |
| Torque Requirement | 0.79 N·m (7 lb-in) |
| Design Feature | Extended depth cover for thicker insulation wires |
| Compatibility | RX3i high-density I/O modules and some Series 90-30 equivalents |
| Function Detail | Provides safe interface between field wiring and PLC I/O modules |
| Isolation | Physical insulation barrier between field wiring and module electronics |
| Mounting Type | Direct mount on compatible RX3i module front connector |
| Material | Industrial-grade insulated housing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (approx.) | ~150 mm × 120 mm × 50 mm |
| Weight | ~0.2–0.5 kg |
FAQ
What is IC694TBB132 used for?
It is a 36-point extended box-style terminal block used to connect field wiring to high-density RX3i PLC I/O modules.
What is the difference vs IC694TBB032?
- TBB032 → standard depth
- TBB132 → extended depth for thicker insulated cables (especially AC wiring)
Is it an active module?
No. It is a passive wiring accessory, not an electronic I/O or CPU module.
Why is it important?
It ensures:
- Safe wiring termination
- Better insulation clearance for AC field wiring
- Reliable connection to high-density PLC modules
Where is it commonly used?
It is used in GE RX3i industrial control cabinets, especially in high-density I/O applications and power/control wiring panels.
GE Fanuc IC694TBB132 High-Density Box-Style Terminal Block is in stock. Please contact us for a quick quote and competitive pricing.
