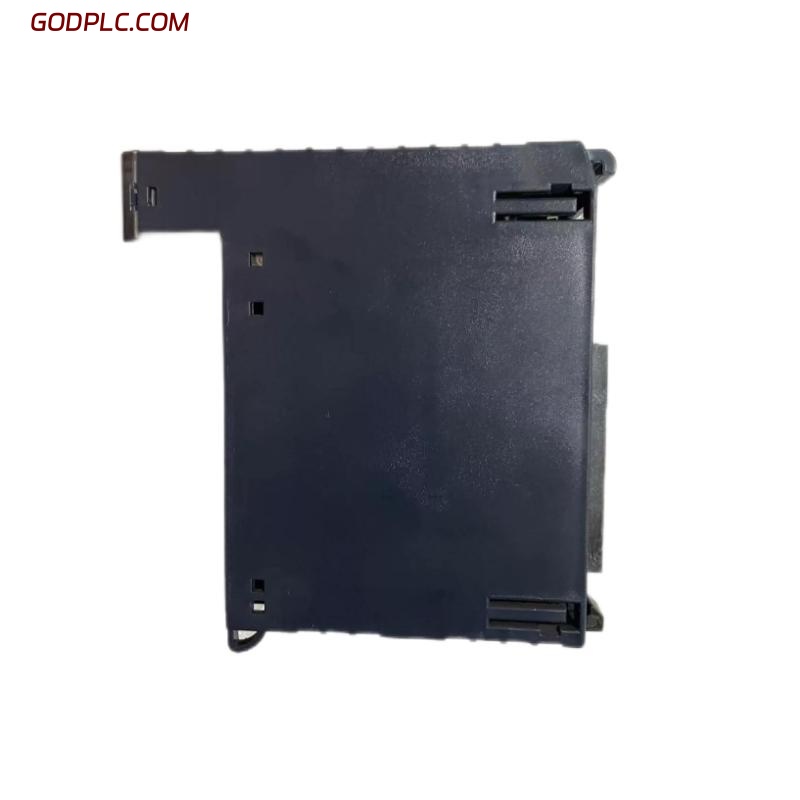

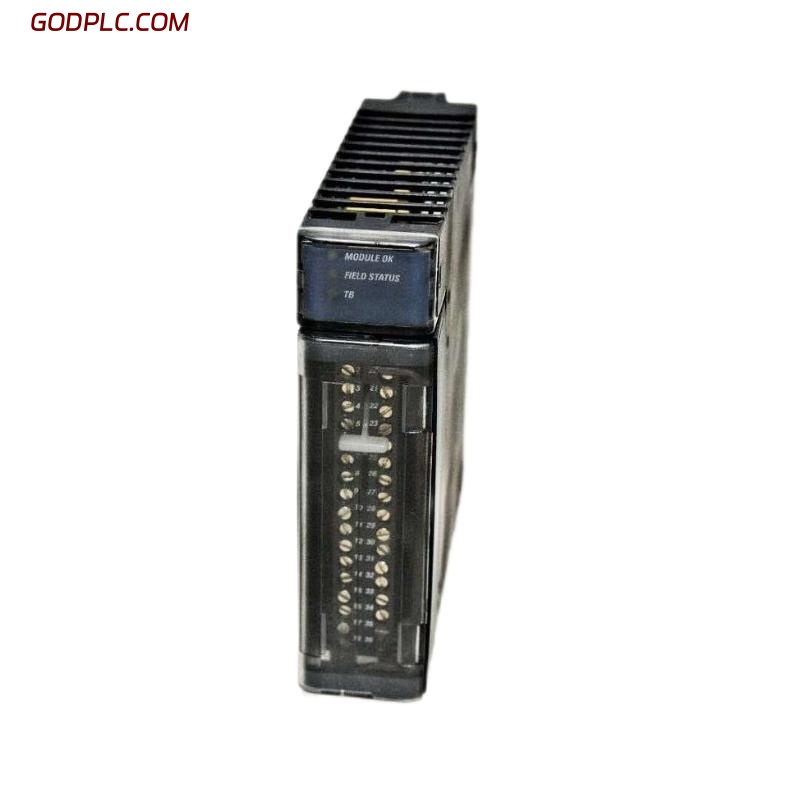

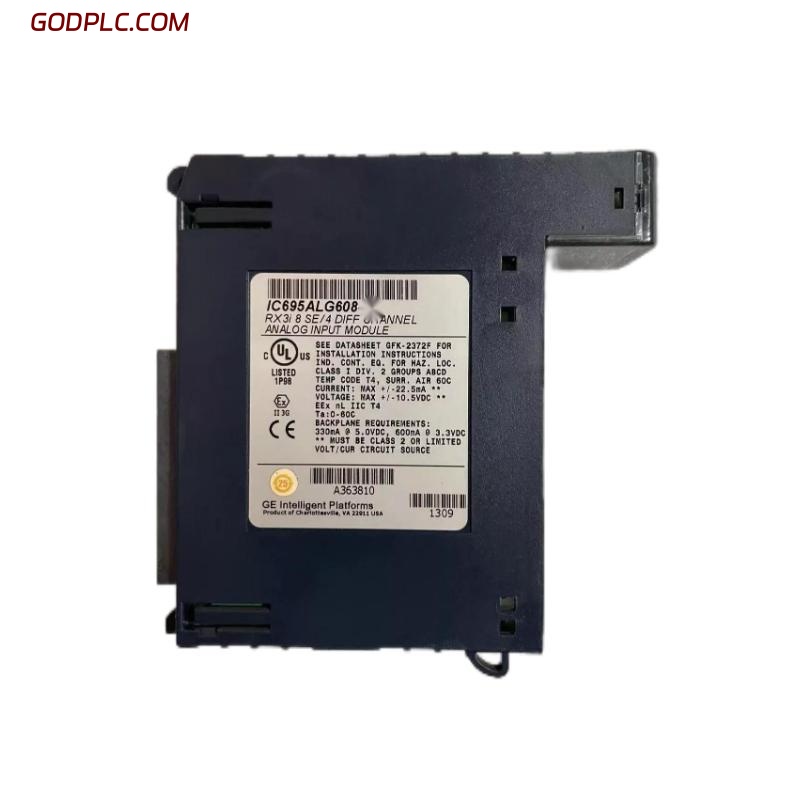

GE Fanuc IC695ALG608 RX3i Analog Input Module

Product Overview

The GE Fanuc IC695ALG608 RX3i Analog Input Module is a high-performance input module designed for use with the GE Fanuc RX3i PLC systems. Offering 8 channels of analog input, the IC695ALG608 enables precise measurement of real-world signals, converting them to digital data for processing. This module supports a wide range of industrial applications where accuracy, reliability, and fast data processing are essential. With versatile input configurations, the IC695ALG608 is a perfect solution for industries requiring high-quality analog input with fast processing times, including manufacturing, energy, and automation.

Key Features

• 8 Analog Input Channels – Provides 8 channels for accurate analog signal measurement, ideal for systems requiring fewer but precise input channels

• Wide Input Range – Compatible with various input types, including voltage (0–10 V, ±10 V) and current (4–20 mA)

• High-Resolution Measurements – 16-bit resolution for precise data capture with minimal error, ensuring high-quality signal conversion

• Flexible Configuration – Each channel can be individually configured to meet specific application requirements

• Fast Sampling Rate – Supports up to 100 Hz sampling per channel, ensuring real-time signal acquisition and processing

• Integrated Diagnostics – Built-in diagnostic features provide quick detection and troubleshooting of faults, ensuring system reliability

• Modular and Scalable – Easily integrates into the RX3i system, providing flexibility for future expansions and system scalability

• Rugged Design – Withstands industrial environments, providing long-term durability and minimal maintenance

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Industrial Automation – Used for capturing and processing signals from analog sensors in manufacturing and production systems

• Energy and Power Generation – Provides essential data for controlling parameters such as temperature, pressure, and flow in power plants and electrical grids

• Oil and Gas – Ideal for precise monitoring of equipment in critical processes such as drilling, extraction, and refining

• Water Treatment – Monitors critical parameters like pH, turbidity, and flow rates in water and wastewater systems

• Building Automation – Integrated with HVAC, lighting, and security systems to monitor and control environmental conditions in buildings and facilities

• Manufacturing & Process Control – Collects and transmits signals from various process equipment, such as pumps, valves, and motors, ensuring smooth operational control

The GE Fanuc IC695ALG608 RX3i Analog Input Module delivers high-quality analog input performance in industrial control and automation systems. Its reliability, precision, and ease of integration make it an essential part of the GE Fanuc RX3i system, providing accurate, real-time data processing for critical industrial operations.
