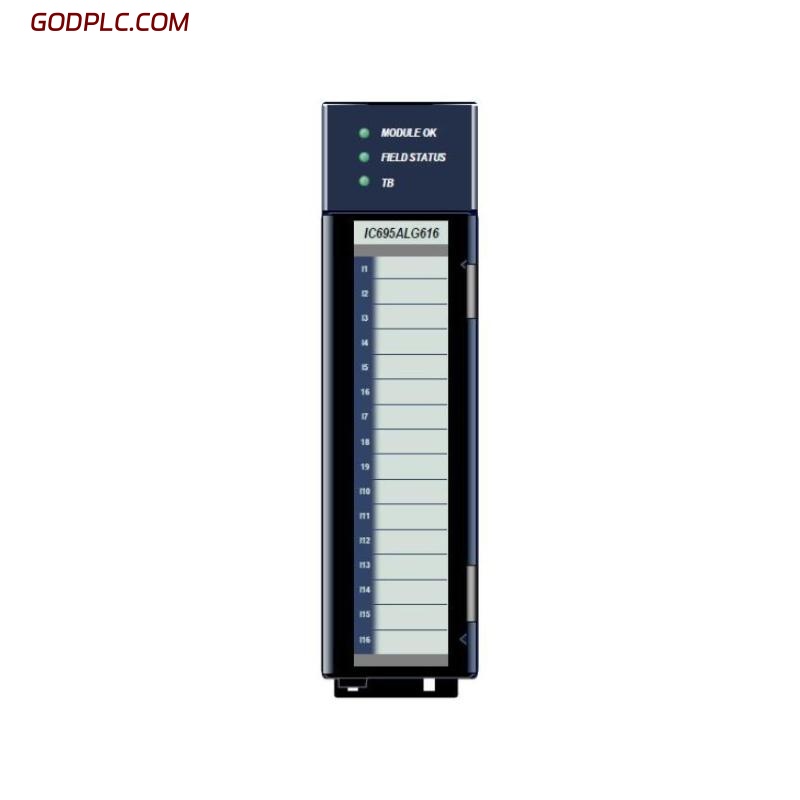

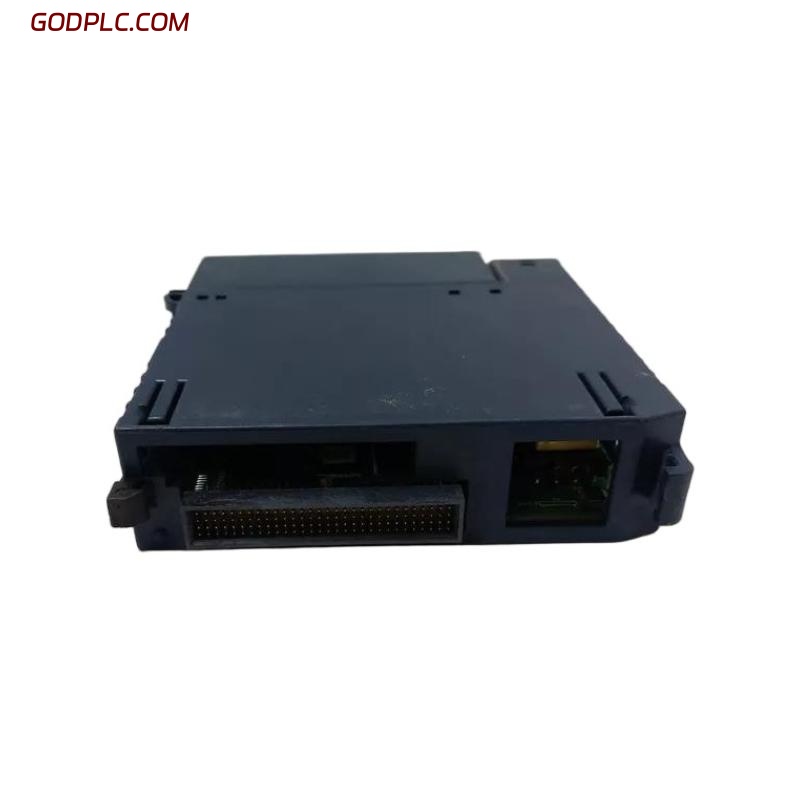

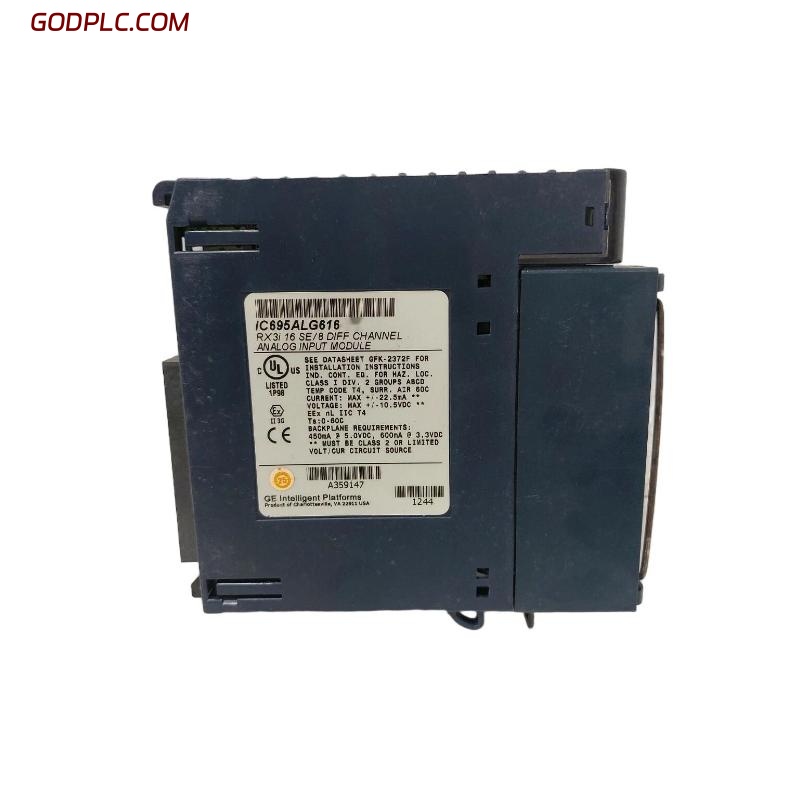

GE Fanuc IC695ALG616 RX3i Analog Input Module

Product Overview

The GE Fanuc IC695ALG616 RX3i Analog Input Module is a robust and high-precision module designed for use with GE Fanuc’s RX3i series PLC systems. Offering 16 channels of analog input, this module supports a wide range of voltage and current input types, providing a scalable solution for industrial systems that require large-scale analog data acquisition. The IC695ALG616 features fast processing and high-resolution measurement capabilities, making it ideal for applications in industries such as manufacturing, automation, and energy. With built-in diagnostics and flexible configuration, it ensures seamless integration into any control system.

Key Features

• 16 Analog Input Channels – 16 channels for capturing a wide range of analog signals, ideal for systems that require more data points.

• Versatile Input Types – Compatible with both voltage (0-10 V, ±10 V) and current (4-20 mA) input signals, offering flexibility for various applications.

• High-Resolution Input – 16-bit resolution ensures precise and accurate signal conversion with minimal error.

• Fast Data Sampling – Supports up to 100 Hz per channel for quick, real-time data acquisition in fast-paced industrial environments.

• Individual Channel Configuration – Allows each channel to be independently configured for different signal types and scaling requirements.

• Built-in Diagnostics – Offers internal diagnostic features for detecting faults in the system, ensuring optimal performance and minimal downtime.

• Scalable and Modular – Easily integrates into the RX3i PLC system and can be expanded as part of a larger, more complex control setup.

• Durable and Reliable – Designed to operate in demanding industrial environments, with a robust construction for long-term reliability.

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Industrial Automation – Ideal for large-scale automation systems requiring multiple channels for measuring parameters like pressure, temperature, and flow rate.

• Energy and Power Generation – Used in power plants for monitoring vital metrics like voltage and current, ensuring reliable operation of power generation systems.

• Oil and Gas – Captures signals from sensors in critical equipment, such as pumps, valves, and flow meters in oil and gas plants.

• Manufacturing and Process Control – Provides reliable data collection for controlling processes in industries like food and beverage, chemical processing, and automotive.

• Building Automation – Monitors HVAC systems, lighting, and other environmental controls in commercial and industrial buildings.

• Water and Wastewater Treatment – Ideal for capturing and processing data from water treatment systems, ensuring continuous and efficient operations.

The GE Fanuc IC695ALG616 RX3i Analog Input Module offers excellent flexibility, precision, and scalability for complex industrial automation systems. Its 16 channels, high-resolution capabilities, and real-time data acquisition make it an ideal solution for a wide range of industrial applications, ensuring the efficient control and monitoring of critical processes.
