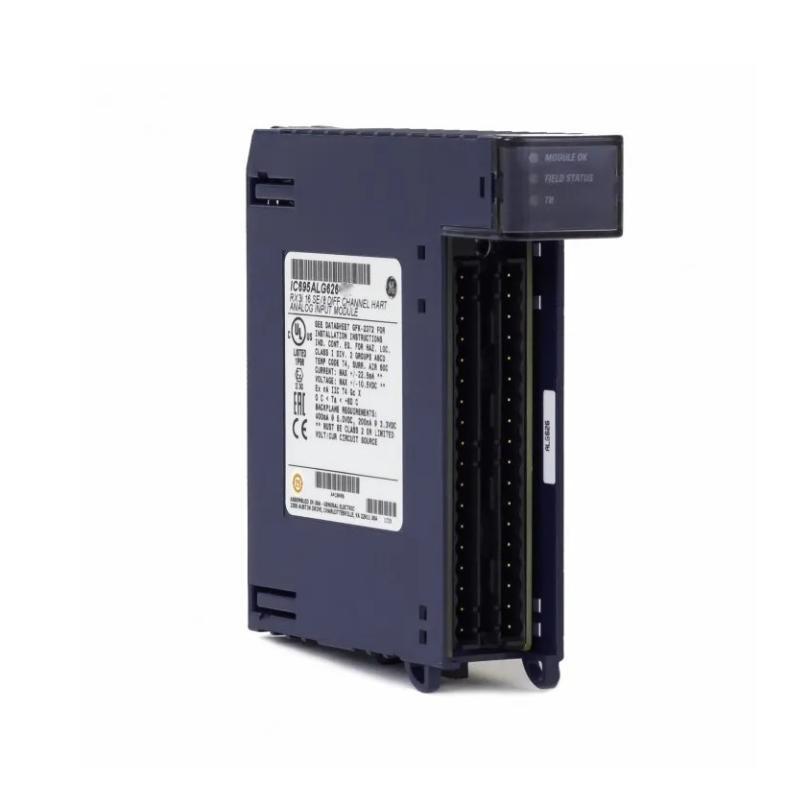

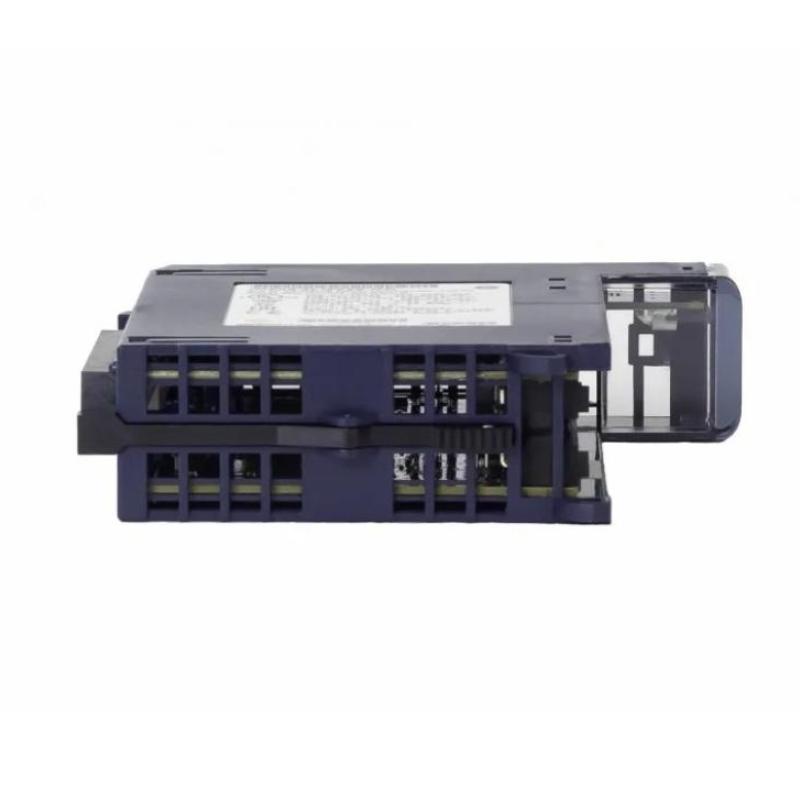

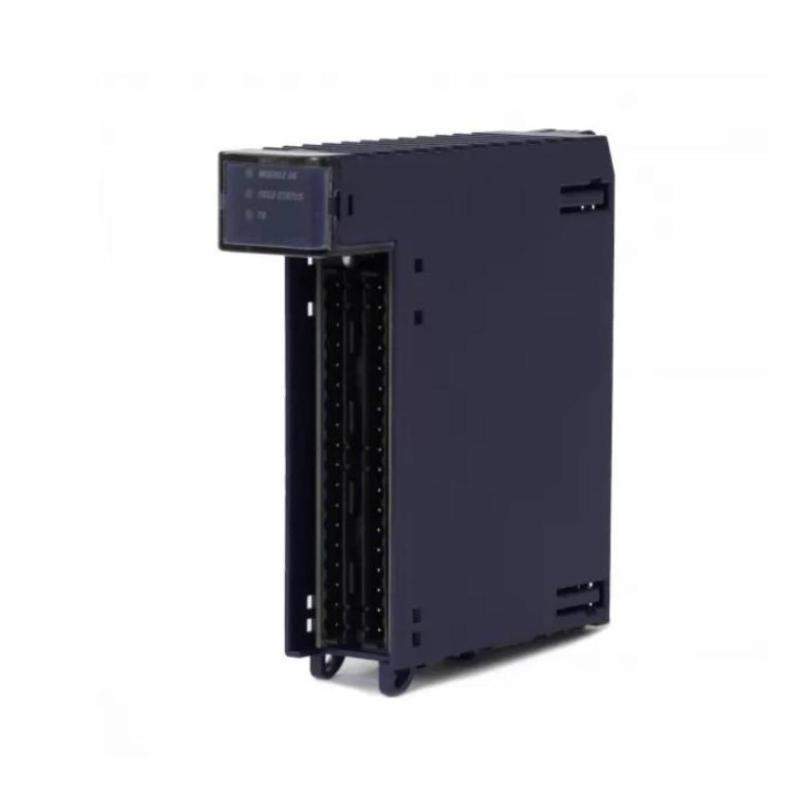

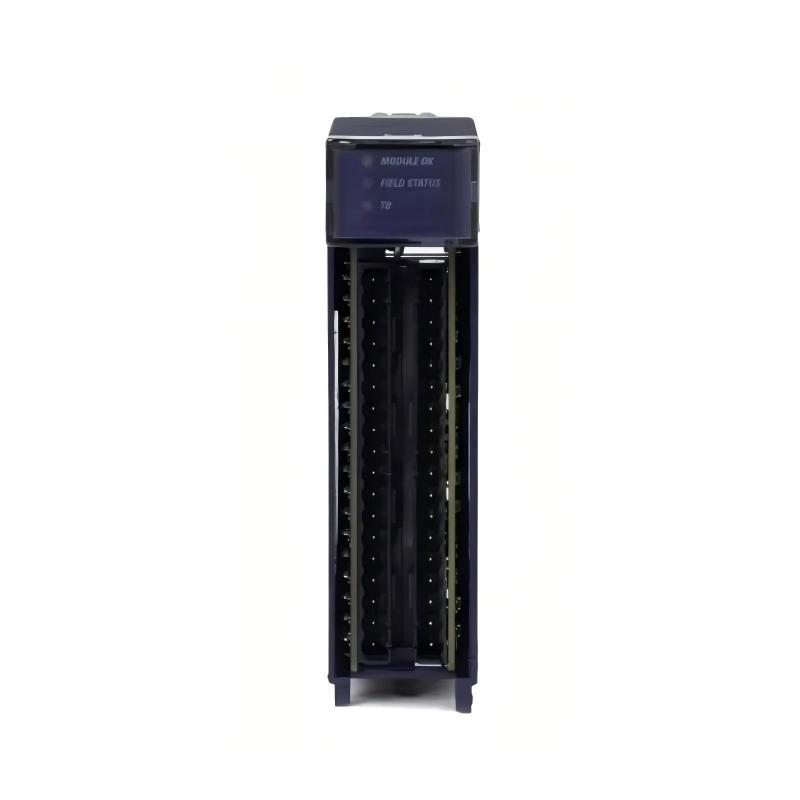

GE Fanuc IC695ALG628 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
IC695ALG628
| Parameter | Specification |
|---|---|
| Product Model | IC695ALG628 |
| Product Type | Analog Input Module (HART-enabled) |
| Series | GE Fanuc / Emerson PACSystems RX3i |
| Function | Provides 8-channel single-ended / 4-channel differential analog input with HART communication support |
| System Role | PLC analog input module (not CPU, not communication module) |
| Application Area | Process control, instrumentation, oil & gas, power plants, industrial automation |
| Input Channels | 8 single-ended / 4 differential (configurable) |
| Input Types | Voltage, current, and HART-enabled 4–20 mA signals |
| Voltage Range | ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V |
| Current Range | 0–20 mA, 4–20 mA, ±20 mA |
| HART Support | HART 5.0 communication on all channels |
| Resolution | 24-bit ADC |
| Isolation | Multiplexed architecture (channel groups share measurement circuitry) |
| Filtering | Configurable digital filters (multiple bandwidth options) |
| Diagnostics | Open-wire detection, over/under-range alarms, module fault detection |
| Configuration | Fully software configurable via Proficy Machine Edition |
| Backplane Power | 450 mA @ 5 VDC, 625 mA @ 3.3 VDC |
| Power Consumption | ~5.5 W |
| HART Modems | 2 internal HART modems |
| Channel Architecture | Multiplexed per HART modem group |
| Mounting Type | RX3i universal backplane slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (approx.) | 34 mm × 145 mm × 140 mm |
| Weight | 450 g |
FAQ
What is IC695ALG628 used for?
It is a HART-enabled analog input module used to read signals from smart field instruments like transmitters and sensors.
Is it a CPU?
No. It is an analog input I/O module, not a controller.
What is its key feature?
It supports HART 5.0 communication, allowing both analog (4–20 mA) and digital device data over the same wiring.
How many channels does it have?
- 8 single-ended inputs
- 4 differential inputs
Where is it commonly used?
It is used in process industries such as oil & gas, chemical plants, and power generation systems.
GE Fanuc IC695ALG628 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
