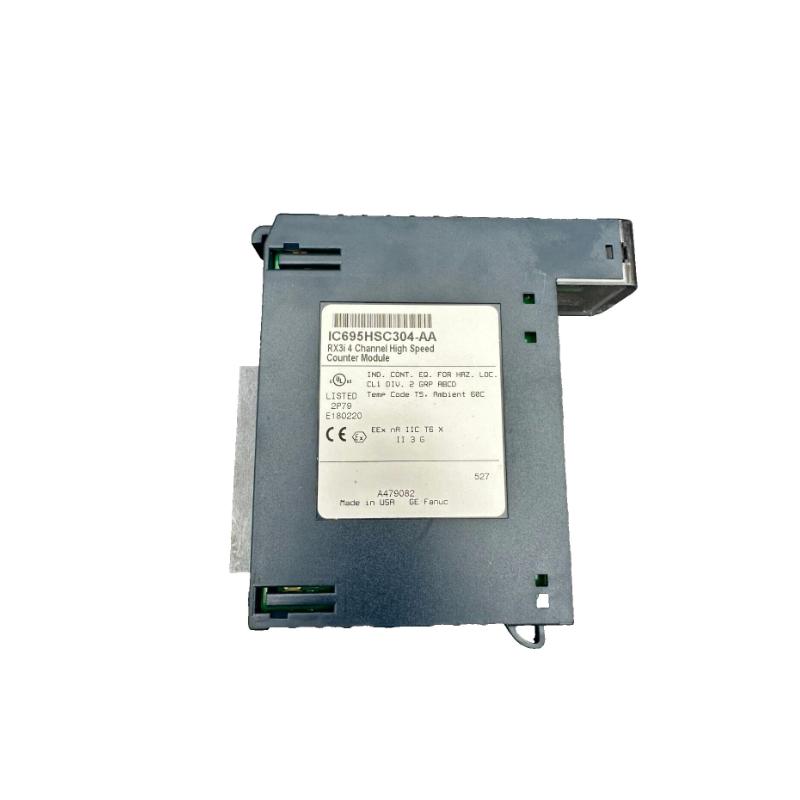

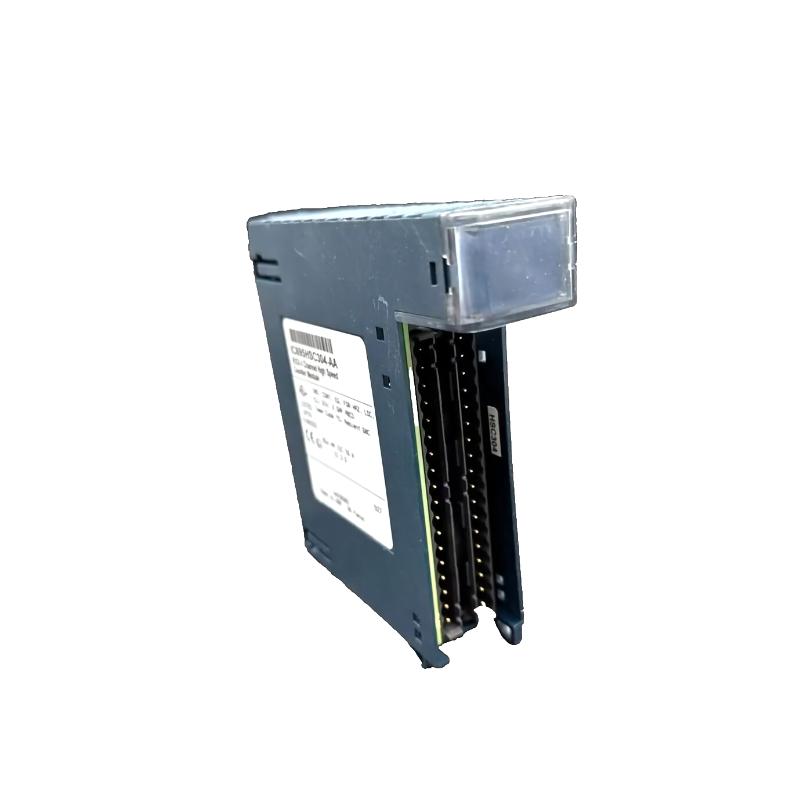

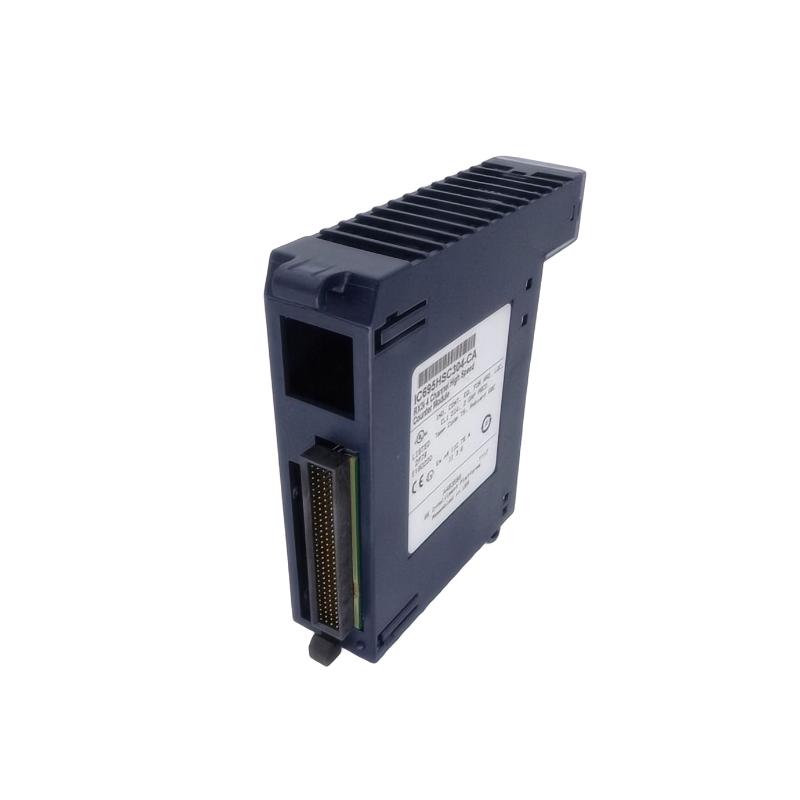

GE Fanuc IC695HSC304 High-Speed Counter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC695HSC304 |
| Manufacturer | GE Fanuc Automation |
| Product Family | RX3i / Series 90-70 PLC |
| Product Type | High-Speed Counter Module |
| Module Type | HSC (High-Speed Counter) |
| Function | High-Speed Counting and Pulse Processing |
| Number of Channels | 4 High-Speed Counter Inputs |
| Counter Type | Up/Down, Quadrature, or Pulse Counting |
| Maximum Input Frequency | Up to 1 MHz (per channel, depending on configuration) |
| Input Signal Type | TTL / 24 VDC Compatible |
| Resolution | 32-Bit Counters |
| Backplane Communication | RX3i / Series 90-70 Backplane Interface |
| Slot Requirement | Single Slot |
| LED Indicators | Module Status, Channel Activity, Fault |
| Baseplate Compatibility | RX3i or Series 90-70 Backplanes |
| Installation Slot | Any I/O Slot |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | 127 × 35 × 140 mm |
| Weight | 0.40 kg |
| Typical Applications | Encoder Counting, High-Speed Pulse Monitoring, Motion Control, Process Automation |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IC695HSC304?
A1: The IC695HSC304 is a high-speed counter module for GE Fanuc RX3i and Series 90-70 PLC systems, designed to accurately count high-frequency pulse signals for motion control and process applications.
Q2: How many channels does it support?
A2: The module provides 4 high-speed counter input channels.
Q3: What types of counting does it support?
A3: It supports up/down counting, quadrature counting, and standard pulse counting.
Q4: What is the maximum input frequency?
A4: The module can process input frequencies up to 1 MHz per channel, depending on wiring and configuration.
Q5: What signal types are compatible?
A5: TTL and 24 VDC compatible signals are supported.
Q6: Can it be installed in any I/O slot?
A6: Yes, the IC695HSC304 can be installed in any available slot on a compatible RX3i or Series 90-70 backplane.
Q7: What are common applications?
A7: Typical applications include encoder counting, high-speed pulse monitoring, motion control, and precision process automation.
Q8: Is the IC695HSC304 still available?
A8: The IC695HSC304 is a discontinued module. Refurbished, surplus, or replacement units may be available from industrial automation suppliers.
GE Fanuc IC695HSC304 High-Speed Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
