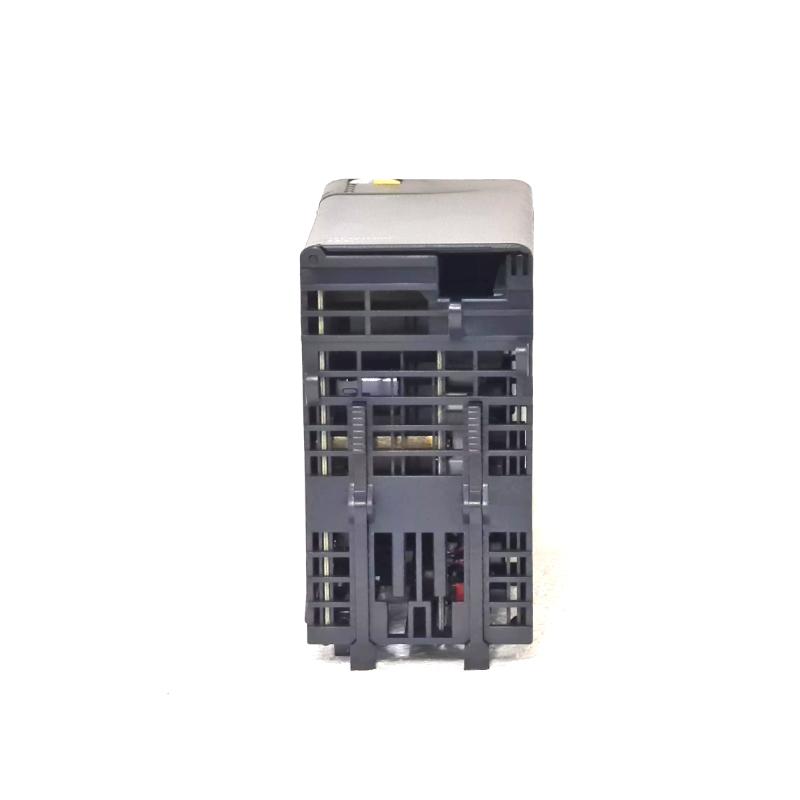

GE Fanuc IC695PSD040 RX3i DC Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC695PSD040 Power Supply Module |
| Manufacturer | Emerson Electric Co. (PACSystems / formerly GE Fanuc Intelligent Platforms) |
| Product Type | RX3i DC Power Supply Module |
| Series | PACSystems RX3i |
| Input Voltage | 24 VDC nominal |
| Input Voltage Range | 18 to 30 VDC (Start: 18–30 VDC / Run: 12–30 VDC) |
| Input Power | Up to 60 W maximum |
| Output Power | 40 W total |
| Output Voltages | 5.1 VDC, 3.3 VDC, 24 VDC relay supply |
| 5.1 VDC Output | 0–6 A |
| 3.3 VDC Output | 0–9 A |
| 24 VDC Output | Relay/auxiliary supply (for output modules) |
| Inrush Current | ~4 A (100 ms max) |
| Ride-through Time | ~10 ms |
| Backplane Interface | RX3i Universal Backplane |
| Slot Requirement | 1 slot (Slot 0 installation typical) |
| Redundancy Support | Not supported |
| Load Sharing | Not supported |
| Daisy Chain Support | Up to 2 modules (no capacity increase) |
| Isolation | None |
| LED Indicators | Power, P/S Fault, Overload, Overtemperature |
| Protection Features | Overload and thermal shutdown protection |
| Terminal Wiring | 14–22 AWG single conductor per terminal |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approx. 0.3–2.0 kg (varies by revision/packaging) |
| Dimensions | Approx. 120 mm × 30 mm × 200–300 mm |
FAQ
Q1: What is IC695PSD040 used for?
A: It is a 24 VDC power supply module used in RX3i PLC systems to provide backplane power for CPUs, I/O modules, and communication modules.
Q2: What is the input voltage range of IC695PSD040?
A: It operates from 18 to 30 VDC for start-up and 12 to 30 VDC during normal operation, with a nominal input of 24 VDC.
Q3: What outputs does IC695PSD040 provide?
A: It provides 5.1 VDC, 3.3 VDC, and a 24 VDC relay/auxiliary supply for system and output modules.
Q4: How much power can it deliver?
A: The total output power is 40 watts.
Q5: Can IC695PSD040 be used in redundant configuration?
A: No, it does not support redundancy or load-sharing modes.
Q6: What happens if the power supply fails?
A: The RX3i backplane loses power, causing the PLC system and all connected modules to shut down.
Q7: Can multiple IC695PSD040 modules be installed in one rack?
A: Only one module is used per backplane; additional units can be daisy-chained for wiring convenience but not for increased capacity.
Q8: What are typical applications?
A: It is used in industrial automation systems requiring compact 24 VDC-powered PLC architectures, such as manufacturing lines, utilities, and process control systems.
GE Fanuc IC695PSD040 RX3i DC Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
