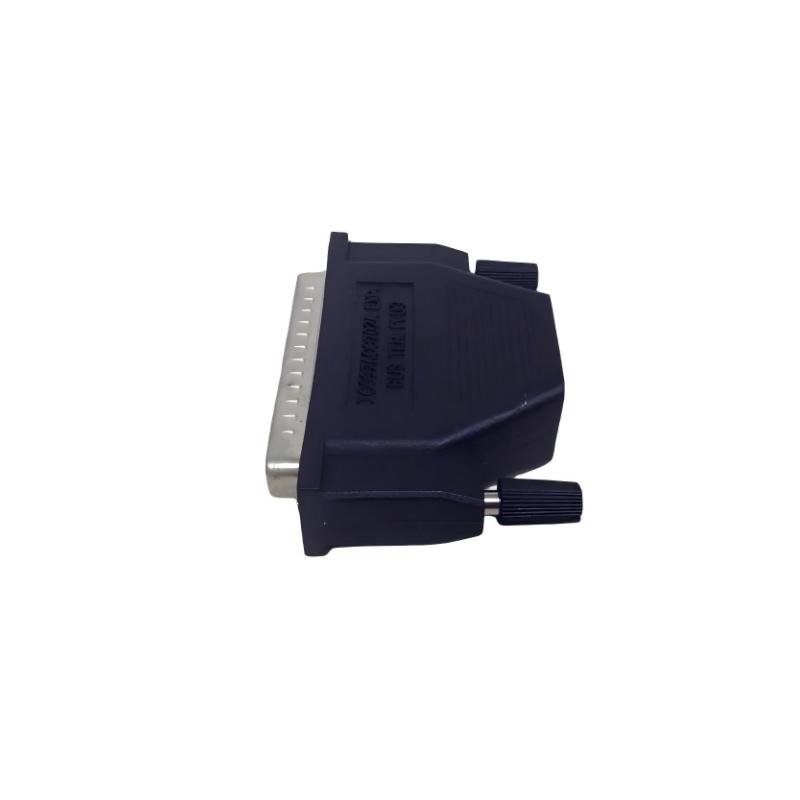

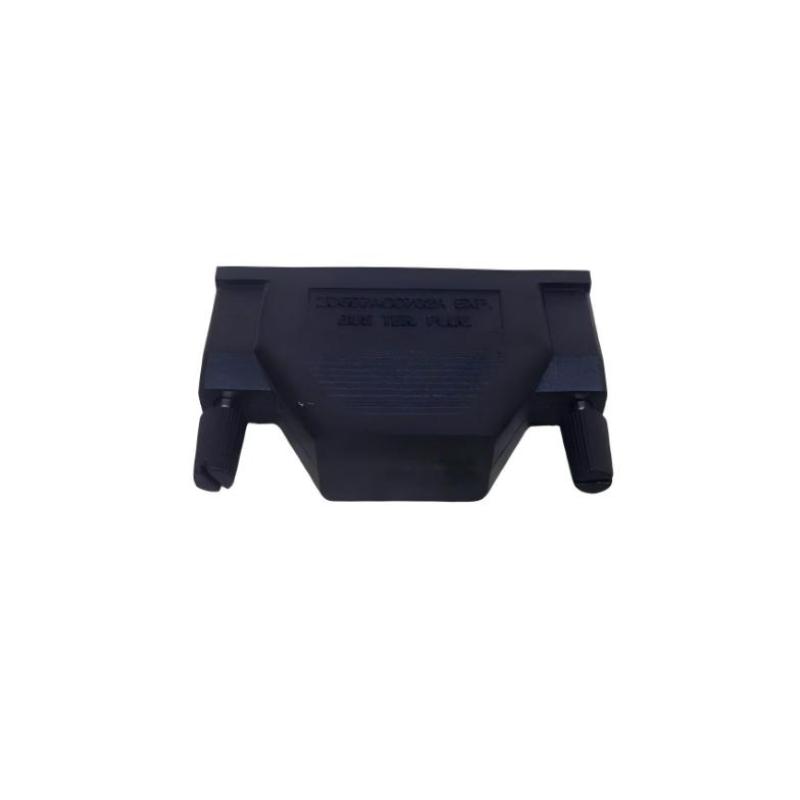

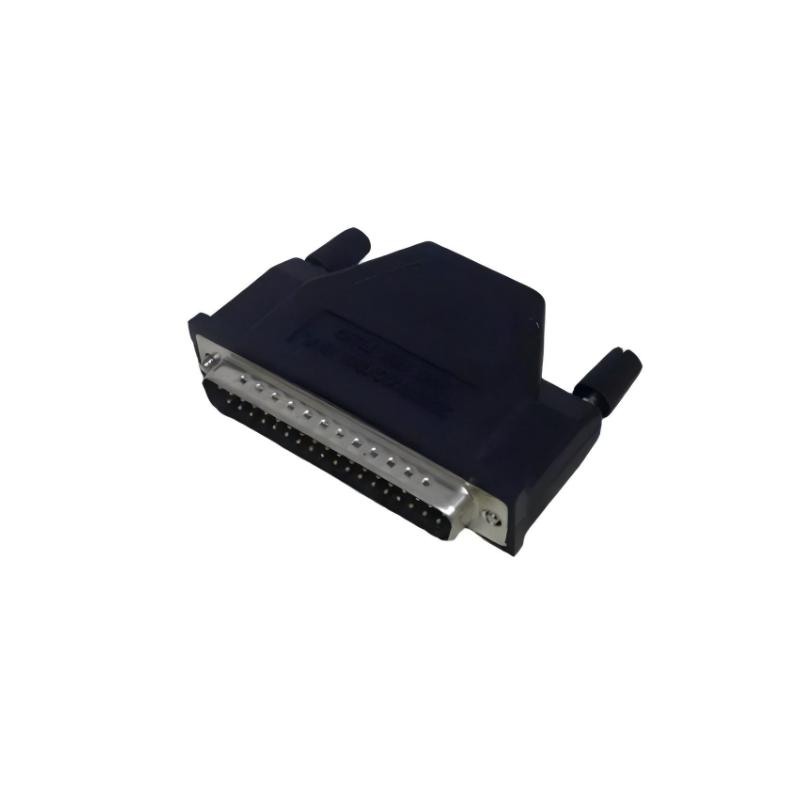

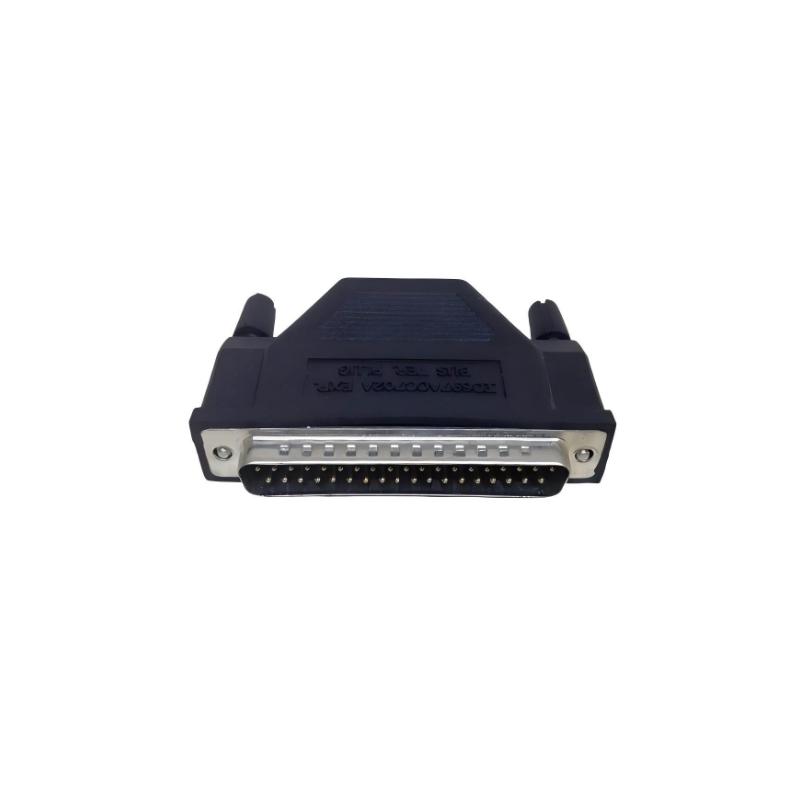

GE Fanuc IC697ACC702 Bus Terminal Plug
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697ACC702 I/O Bus Terminator Plug |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | Bus Terminator Plug |
| Series | GE Fanuc Series 90-70 |
| Function | Terminates Genius / I/O expansion bus to ensure signal integrity |
| Electrical Function | Passive termination resistor network |
| Installation Position | End of I/O expansion bus chain (final module only) |
| Connector Type | Backplane-mounted plug-in terminator |
| Circuit Type | Resistor termination network (no active electronics) |
| System Compatibility | Series 90-70 PLC (IC697 CPU and I/O systems) |
| Bus Type | I/O Expansion / Genius Bus interface system |
| Mounting Type | Plug-in module (rear expansion port) |
| Power Requirement | None (passive component) |
| Diagnostic Features | Optional LED indication (on some revisions) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approx. 0.02–0.05 kg |
| Dimensions | 50 × 20 × 15 mm |
FAQ
Q1: What is IC697ACC702 used for?
A: It is a terminator plug used in GE Fanuc Series 90-70 PLC systems to properly terminate the I/O expansion or Genius bus at the end of a communication chain.
Q2: Is IC697ACC702 an electronic module?
A: No, it is a passive termination device containing resistors to maintain signal integrity on the bus.
Q3: Where is it installed?
A: It is installed at the final node of the I/O expansion chain, typically in the last module’s expansion port.
Q4: What happens if it is not installed correctly?
A: Missing or incorrect termination can cause communication errors, data corruption, or unstable bus operation.
Q5: Does IC697ACC702 require power?
A: No, it does not require any electrical power to operate.
Q6: Can it be replaced with other parts?
A: No, it must match the correct termination specification for the Series 90-70 bus to ensure proper impedance matching.
Q7: Is it still used in modern PLC systems?
A: No, it is mainly used in legacy GE Fanuc Series 90-70 installations.
Q8: What is its size?
A: It is a small plug-in terminator, typically only a few centimeters long, designed to fit the expansion port of Series 90-70 modules.
GE Fanuc IC697ACC702 Bus Terminal Plug is in stock. Please contact us for a quick quote and competitive pricing.
