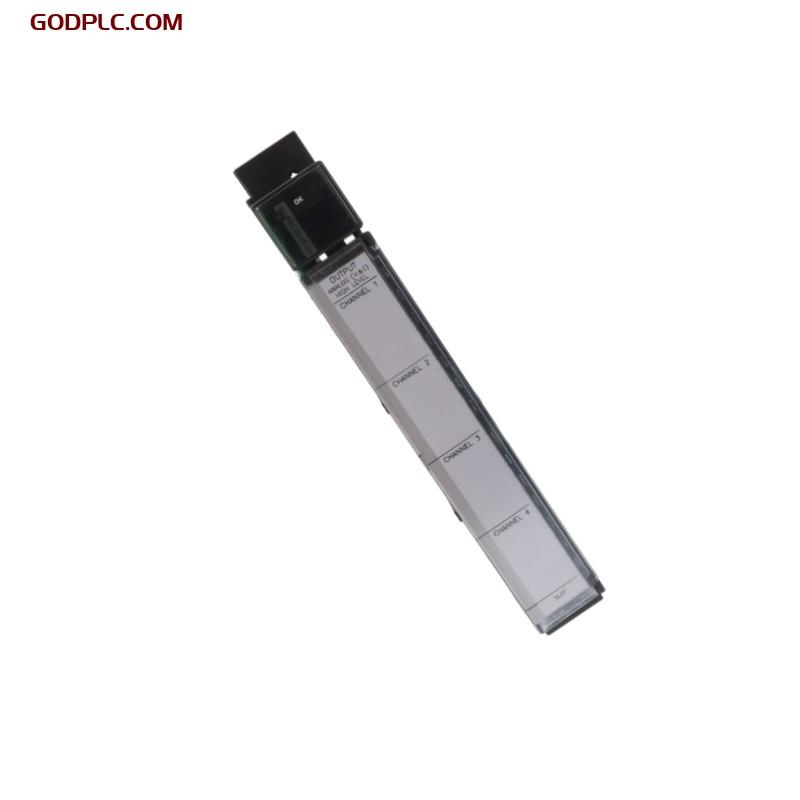

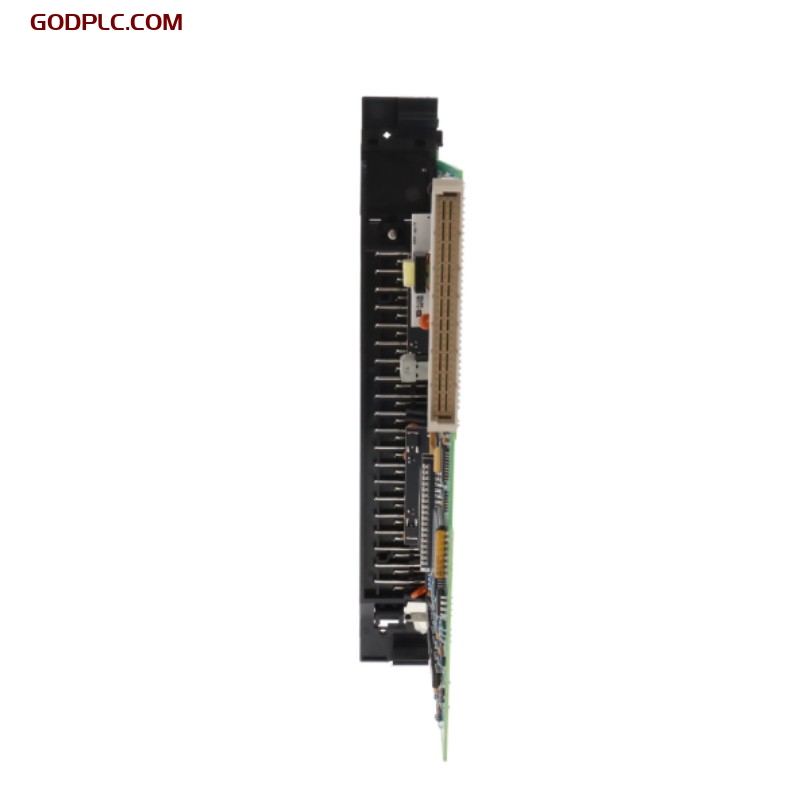

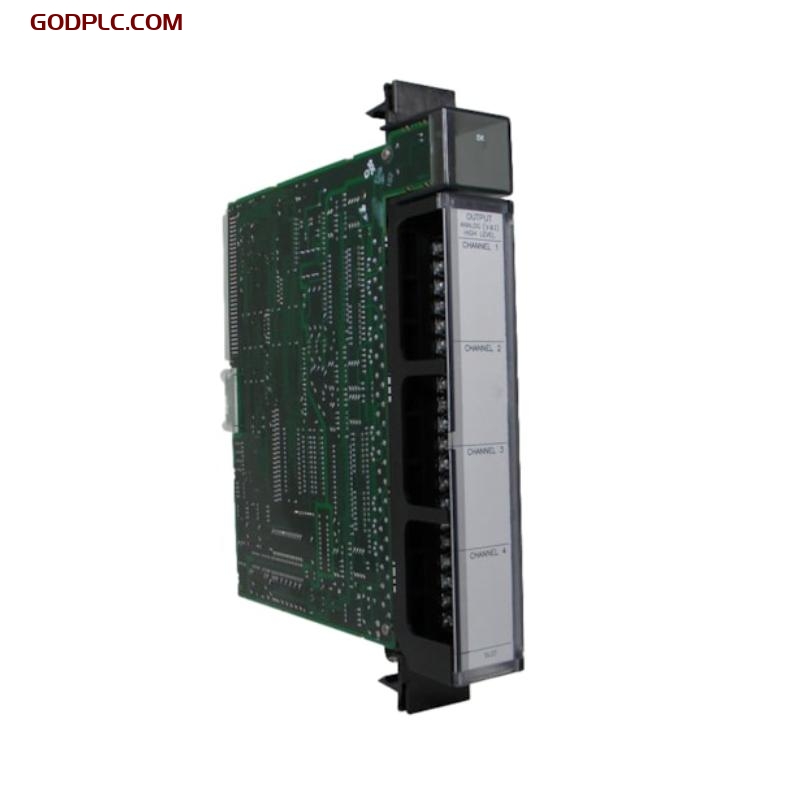

GE Fanuc IC697ALG320 Analog Output Module
1. Product Overview
The GE Fanuc IC697ALG320 is an advanced analog output module designed for use with the Series 90-70 Programmable Logic Controllers (PLCs). This module provides flexible and accurate analog signal output options for a variety of industrial applications. With four independent channels that can be configured for either voltage or current output, the IC697ALG320 ensures high-precision and reliable control for various process and automation tasks. The module is ideal for use in industries requiring precise analog output for control, monitoring, and automation purposes.
2. Key Features
-
Multiple Output Configurations: Each of the four channels can be independently configured to output voltage or current, offering flexibility in application.
-
High-Resolution Conversion: Equipped with a 16-bit Digital-to-Analog Converter (DAC), delivering 14-bit monotonicity for precise analog signal output.
-
Fast Response Time: The module offers a quick update rate of 2 milliseconds for all channels, ensuring real-time performance.
-
Software-Based Configuration: Configuration is done via software, eliminating the need for jumpers or DIP switches, which streamlines the setup process.
-
Factory Calibration: Pre-calibrated at the factory, with calibration data stored in non-volatile EEPROM for consistent performance.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 x 25 x120 mm |
| Weight | 0.3 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | IC697ALG320 |
| Manufacturer | GE Fanuc |
| Series | Series 90-70 |
| Power Supply | 24 VDC |
| Operating Voltage | 10VDC to 30VDC (24VDC typical) |
| Installation | DIN Rail Mount |
| Operating Temp. | 0°C to 60°C |
| Humidity | 5% to 95% RH (non-condensing) |
3.3 Output Specifications
| Item | Specification |
|---|---|
| Output Channels | 4 channels (configurable) |
| Voltage Output Range | ±10 VDC |
| Current Output Range | 0 to 22.5 mA (configurable as 4-20 mA) |
| Accuracy (Voltage) | ±2.5 mV at full scale |
| Accuracy (Current) | ±5 µA at 4 mA and 20 mA |
| Resolution | 312.5 µV per LSB |
3.4 Performance
| Item | Specification |
|---|---|
| Conversion Rate | 2 ms (all channels) |
| Calibration | Factory-calibrated, non-volatile EEPROM |
| Response Time | 2 milliseconds |
4. Industry Applications
The IC697ALG320 module is ideal for industries requiring high-precision analog control, such as:
-
Process Control: Ensures accurate regulation and monitoring of process systems in industries like chemicals and petrochemicals.
-
Automation Systems: Used for controlling automated processes, offering precise analog signals for automation equipment.
-
Data Acquisition: Provides reliable analog output for real-time data collection in scientific and industrial settings.
-
Manufacturing Automation: Ideal for production environments, ensuring precise and stable control signals for machinery.
-
Test and Measurement: Used in laboratory and industrial testing systems for accurate output signal generation.
The IC697ALG320 module is an essential component in industrial control and monitoring systems, offering flexible and reliable analog outputs for a wide range of applications.
GE Fanuc IC697ALG320 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
