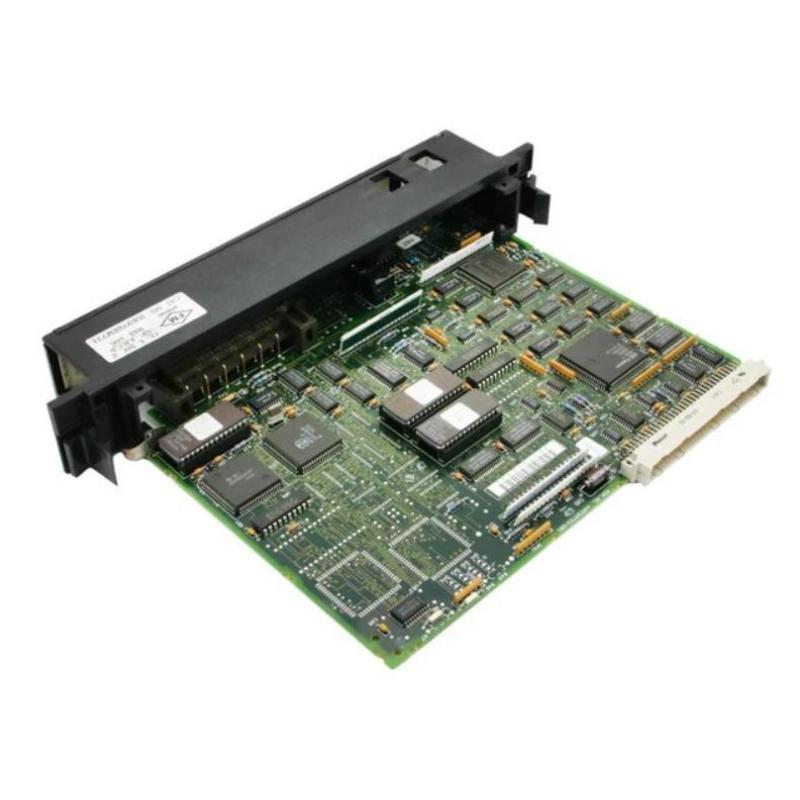

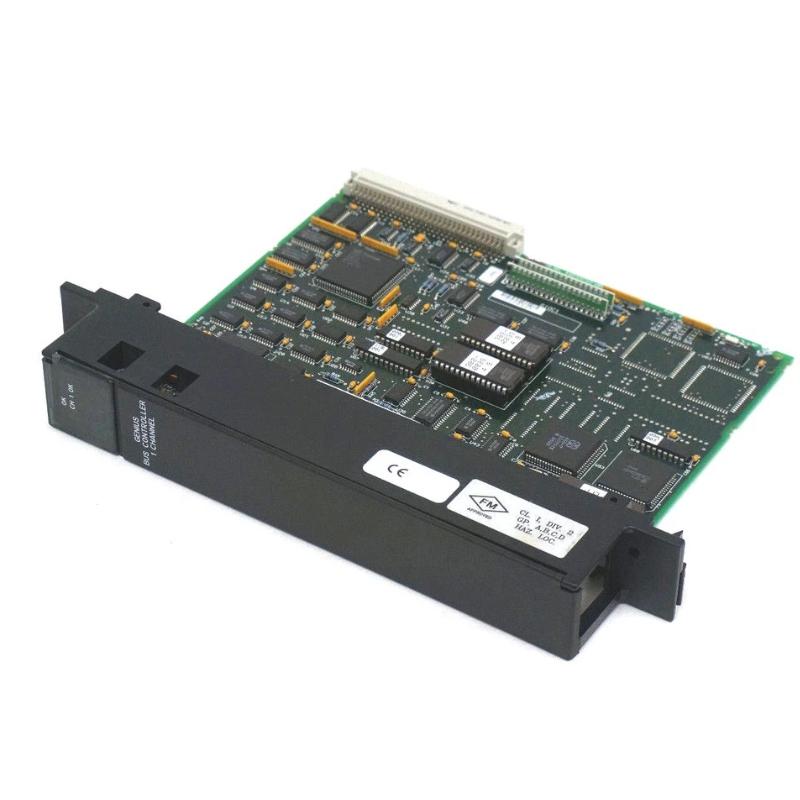

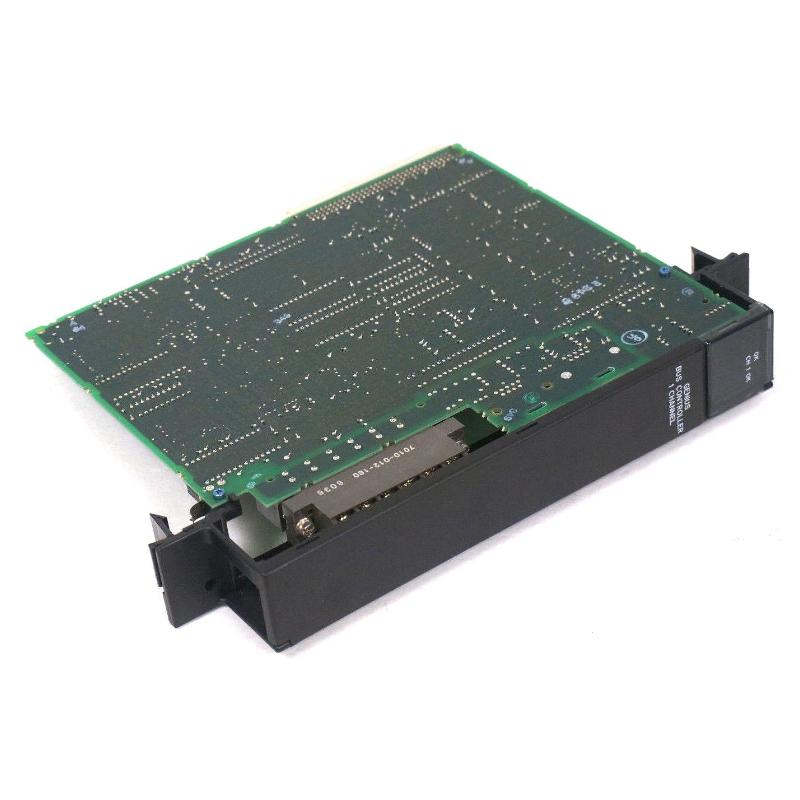

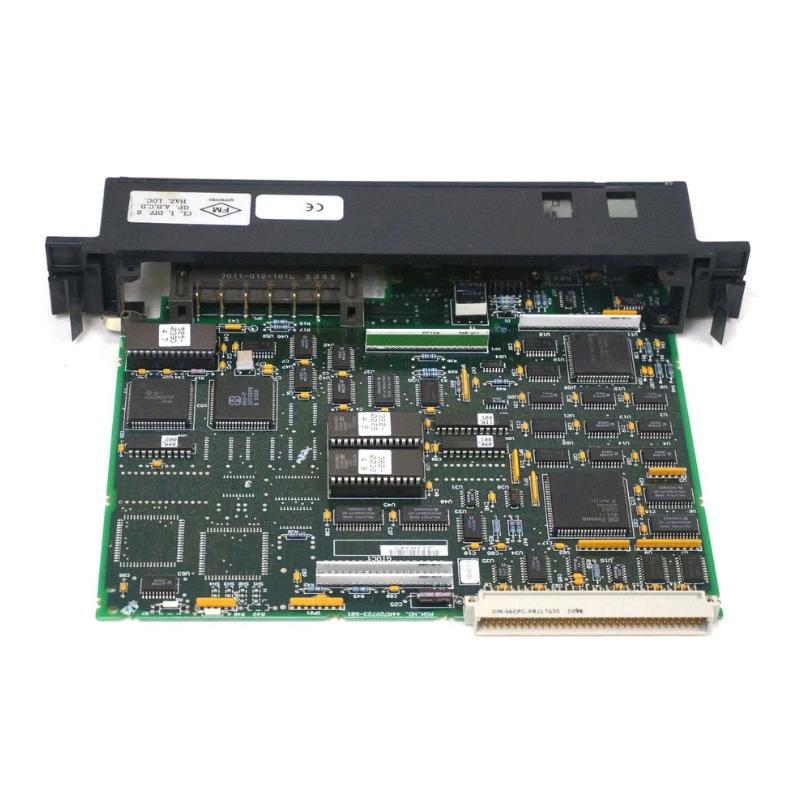

GE Fanuc IC697BEM731 Communication / Bus Controller Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697BEM731 Genius I/O Bus Controller Module |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | Communication / Bus Controller Module |
| Series | GE Fanuc Series 90-70 |
| Function | Controls and manages Genius I/O fieldbus communication for distributed I/O systems |
| Communication Protocol | GE Genius I/O LAN |
| Channels | 1 Genius I/O communication channel |
| Device Capacity | Up to 30 drops (devices) per channel |
| Data Transfer Mode | Token-passing serial communication over Genius bus |
| Baud Rates | 153.6 kbps (standard/extended), 76.8 kbps, 38.4 kbps |
| Max Cable Length | Up to ~2,000 ft (≈610 m) at 153.6 kbps (varies with speed) |
| System Role | Master bus controller for distributed Genius I/O network |
| Backplane Interface | Series 90-70 PLC rack backplane |
| Slot Requirement | 1 slot |
| Hand-Held Monitor Port | Supported (HHM port for configuration/diagnostics) |
| Power Consumption | ~1.3 A @ 5 VDC (backplane powered) |
| Diagnostics | LED indicators for bus status, CPU communication, faults |
| Redundancy Support | Supported (system-dependent configuration) |
| Configuration Method | Software-based (Proficy / legacy MS-DOS configuration tools) |
| Supported Devices | Genius I/O blocks (IC660 / IC661 series) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | ~0.52 kg |
| Dimensions | Approx. 300 mm × 230 mm × 50 mm (Series 90-70 single-slot module form factor) |
FAQ
Q1: What is IC697BEM731 used for?
A: It is a Genius I/O Bus Controller module used in GE Fanuc Series 90-70 PLC systems to manage communication with distributed Genius I/O devices over a dedicated fieldbus network.
Q2: How many devices can it support?
A: It supports up to 30 Genius I/O drops per single communication channel.
Q3: What protocol does it use?
A: It uses the GE Genius I/O LAN protocol based on token-passing serial communication.
Q4: What is its role in a PLC system?
A: It acts as the master controller for remote I/O, scanning field devices and transferring data to the PLC CPU via the backplane.
Q5: What happens if the bus is not terminated or configured correctly?
A: It can cause communication loss, I/O drop faults, or unstable field device scanning.
Q6: Does IC697BEM731 require software configuration?
A: Yes, configuration is done via PLC programming software (no hardware DIP switches).
Q7: Is it still used in modern systems?
A: No, it is primarily used in legacy GE Fanuc Series 90-70 installations.
Q8: What is the difference between BEM711 and BEM731?
A: BEM731 is a Genius I/O Bus Controller, while BEM711 is a Bus Receiver Module used for rack expansion rather than field I/O control.
GE Fanuc IC697BEM731 Communication / Bus Controller Module is in stock. Please contact us for a quick quote and competitive pricing.
