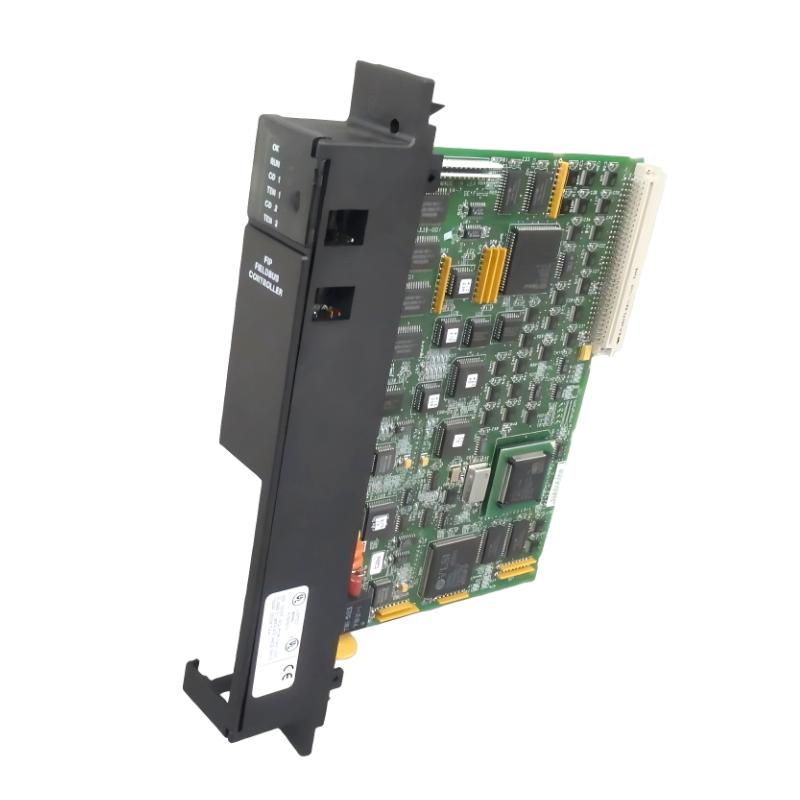

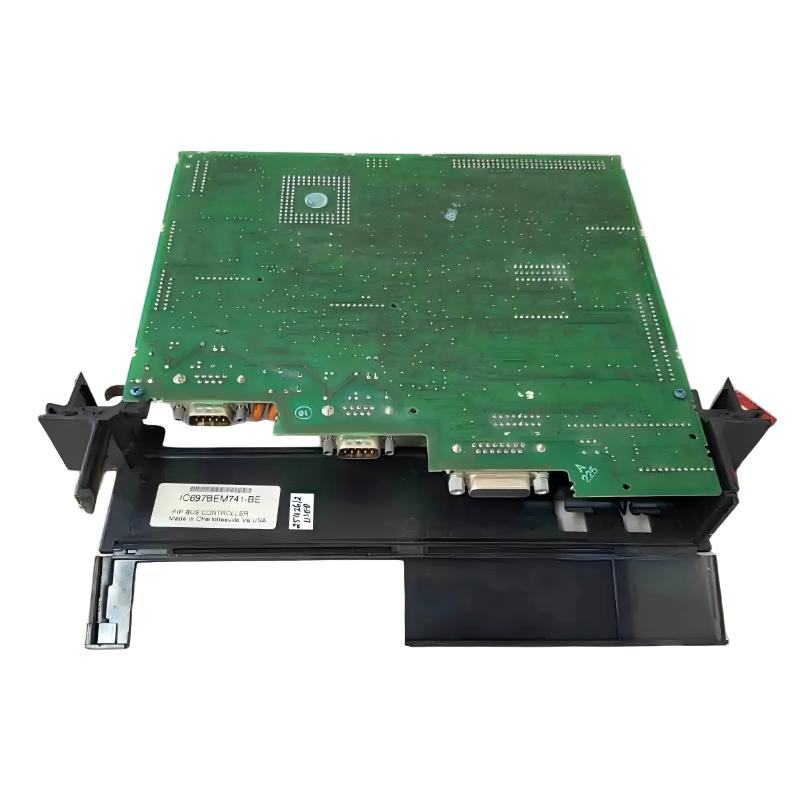

GE Fanuc IC697BEM741 Fieldbus Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697BEM741 FIP Bus Controller Module |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | Fieldbus Communication Module |
| Series | GE Fanuc Series 90-70 |
| Function | Provides interface between PLC system and FIP / WorldFIP fieldbus network |
| Communication Protocol | FIP / WorldFIP (EN50170) fieldbus |
| Fieldbus Speed | 1.0 Mbit/s |
| Channels | 2-channel FIP bus controller |
| Device Capacity | Up to 128 field devices (system dependent) |
| Max Bus Controllers per System | Up to 31 total (typically max 4 FIP controllers) |
| Topology | Fieldbus network with remote I/O drops and distributed devices |
| Supported Devices | IC693 remote I/O, IC670 modules, and generic FIP devices |
| Backplane Interface | Series 90-70 VME-based PLC rack backplane |
| Slot Requirement | 1 slot |
| Power Consumption | ~1.3 A @ 5 VDC |

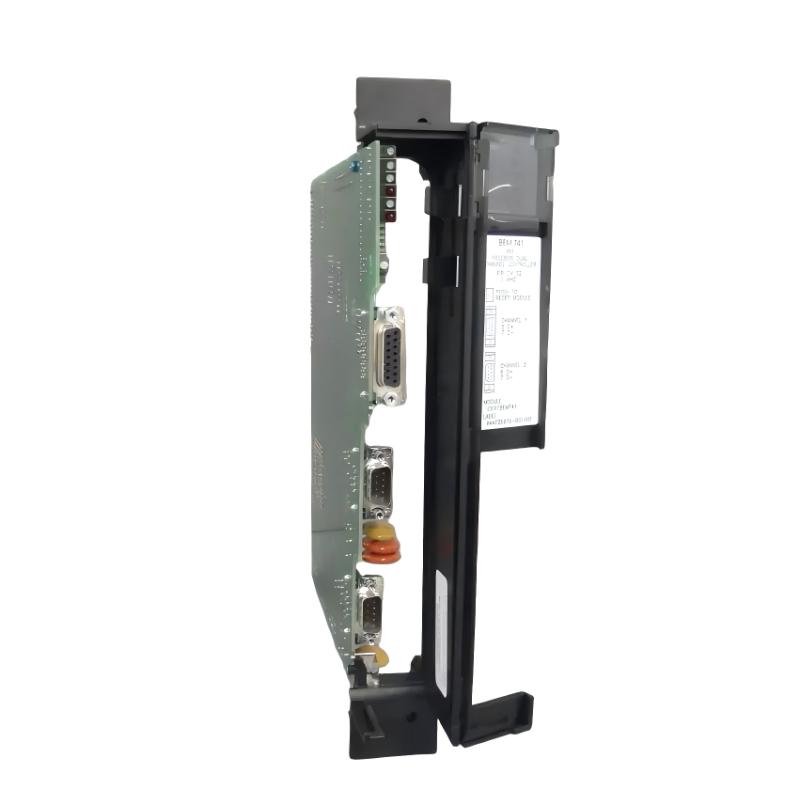

| Connectors | Dual 9-pin FIP fieldbus connectors + 15-pin serial diagnostic port |
| Diagnostics | LED status indicators (RUN, MODULE OK, bus status, faults) |
| Configuration | Software-based (Logicmaster 90-70 / CIMPLICITY Control 90) |
| Firmware Storage | Battery-backed RAM (retains configuration temporarily) |
| Redundancy Support | Supported depending on system architecture |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | ~0.66 kg |
| Dimensions | Approx. 300 mm × 230 mm × 50 mm (single-slot Series 90-70 module form factor) |
FAQ
Q1: What is IC697BEM741 used for?
A: It is a FIP/WorldFIP bus controller used in GE Fanuc Series 90-70 PLC systems to connect the PLC to distributed field devices over an industrial fieldbus network.
Q2: What is the main function of this module?
A: It manages cyclic data exchange between the PLC CPU and remote I/O devices connected on the FIP fieldbus.
Q3: What protocol does IC697BEM741 use?
A: It uses the FIP (Factory Instrumentation Protocol) / WorldFIP standard (EN50170).
Q4: How many devices can it support?
A: It can support up to about 128 field devices depending on configuration and network design.
Q5: How many bus controllers can be used in one PLC system?
A: Up to 31 bus controllers total, with typically up to 4 FIP controllers allowed per system.
Q6: What is the communication speed?
A: 1.0 Mbit/s fieldbus communication speed.
Q7: What happens if the bus is misconfigured or unterminated?
A: It may cause communication loss, device dropouts, or system-wide I/O scan failures.
Q8: Is IC697BEM741 still used today?
A: No, it is mainly used in legacy GE Fanuc Series 90-70 installations and older distributed control systems.
GE Fanuc IC697BEM741 Fieldbus Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
