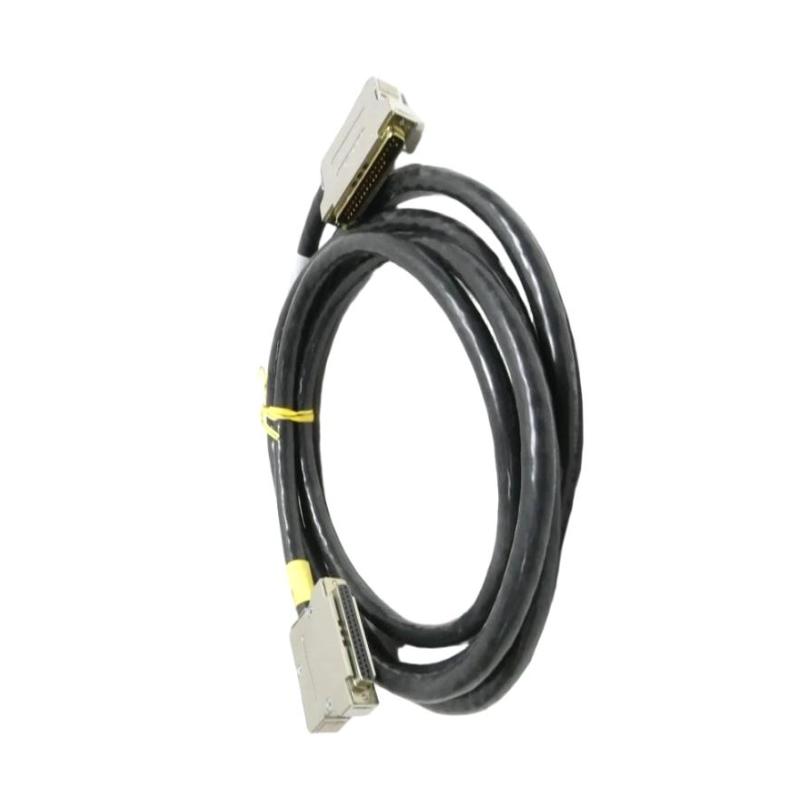

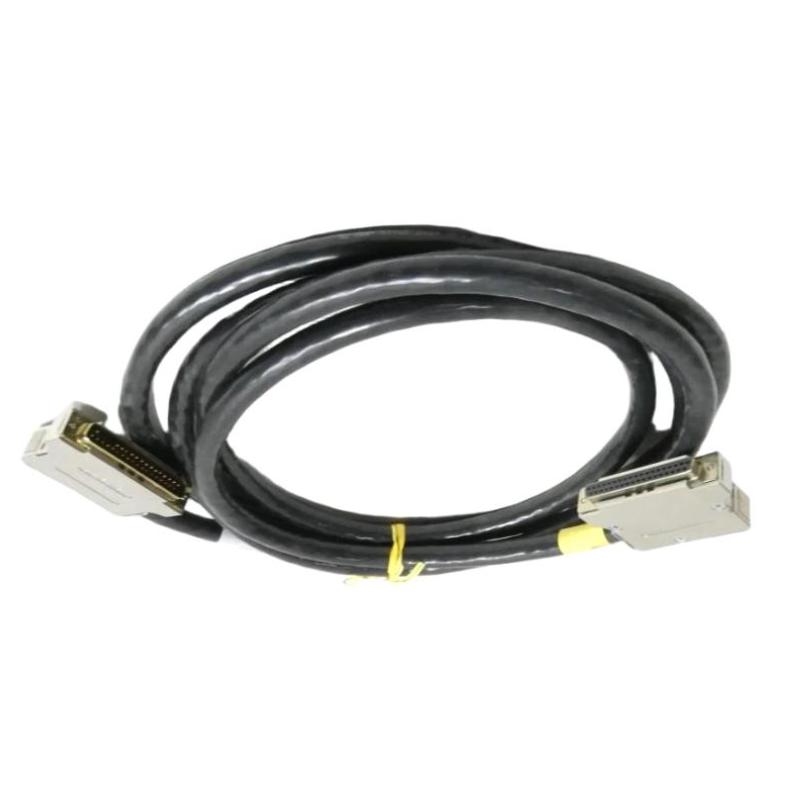

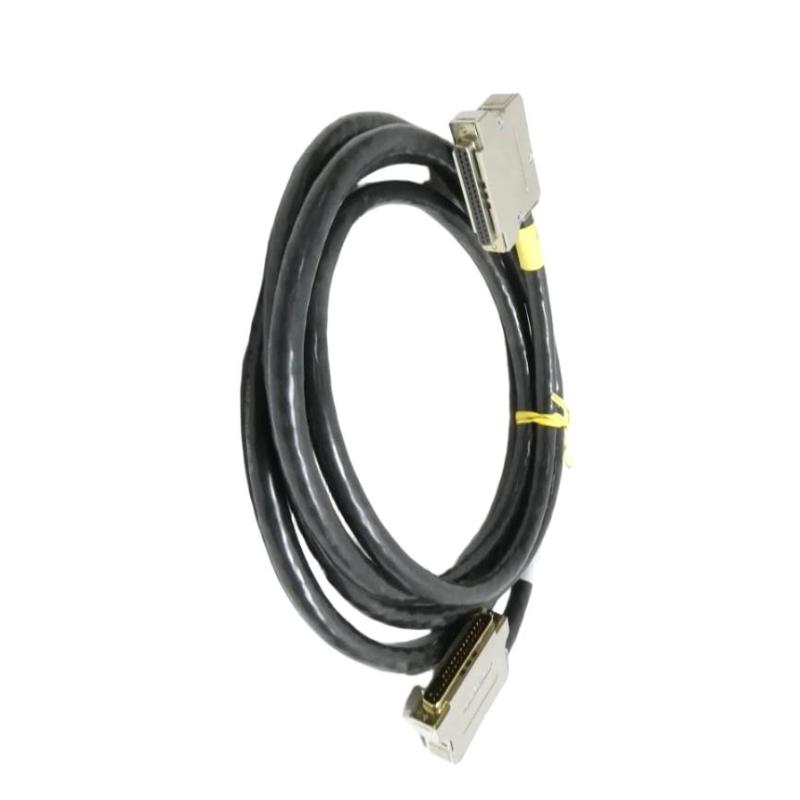

GE Fanuc IC697CBL700 Power Supply Interconnect Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697CBL700 Power Supply Extension Cable |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | Power Supply Interconnect Cable |
| Series | GE Fanuc Series 90-70 |
| Function | Extends power supply connection to support two rack configuration from a single power supply |
| Electrical Function | Transfers +5 VDC power and control signals between racks |
| Control Signals | ACFAIL, SYSRESET |
| Connector Type | 9-pin D-type connector |
| Cable Length | ~1 meter (3 ft typical assembly) |
| Supported Configuration | 1 power supply → 2 PLC racks |
| Compatible Power Supplies | 55 W / 100 W Series 90-70 AC/DC power supplies |
| Maximum Load (Second Rack) | Lower current rack load (system dependent, designed within PSU capacity limits) |
| Backplane Interface | Rack-to-rack power/backplane interface (Series 90-70 architecture) |
| Mounting Method | Rack-mounted connector + M2.5 screw fixation |
| Operating Temperature | -25°C to 70°C (industrial enclosure dependent) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | ~0.3–0.45 kg |
| Dimensions | approx. 1 m length |
FAQ
Q1: What is IC697CBL700 used for?
A: It is a power supply extension cable used in GE Fanuc Series 90-70 PLC systems to allow one power supply to operate two racks.
Q2: Does IC697CBL700 carry communication data?
A: No, it does not carry PLC data or bus communication. It only transfers power (+5 VDC) and control signals.
Q3: What signals are included in the cable?
A: It carries +5 VDC power along with ACFAIL and SYSRESET sequencing signals between racks.
Q4: What is the maximum configuration supported?
A: It supports a two-rack configuration powered by a single compatible power supply.
Q5: What happens if the cable is not installed correctly?
A: The second rack may not power up correctly, or may fail reset sequencing and system initialization.
Q6: Is IC697CBL700 used for I/O expansion?
A: No, it is strictly for power and rack synchronization, not I/O communication.
Q7: Is it still used in modern PLC systems?
A: No, it is mainly used in legacy GE Fanuc Series 90-70 installations.
Q8: Can it be replaced with a generic cable?
A: No, because it carries both power sequencing and system control signals with specific pin definitions and timing requirements.
GE Fanuc IC697CBL700 Power Supply Interconnect Cable is in stock. Please contact us for a quick quote and competitive pricing.
