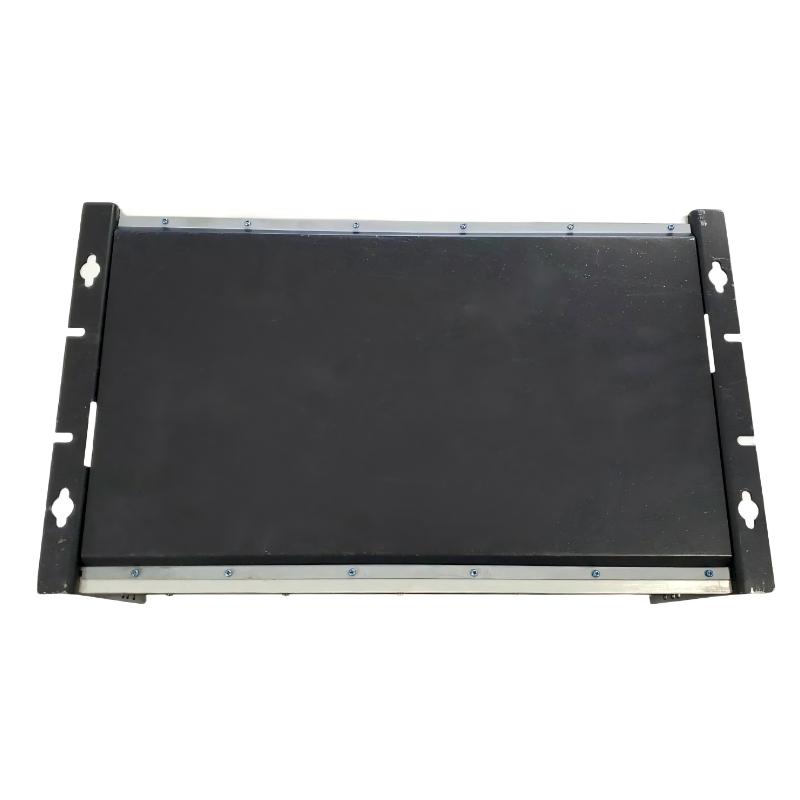

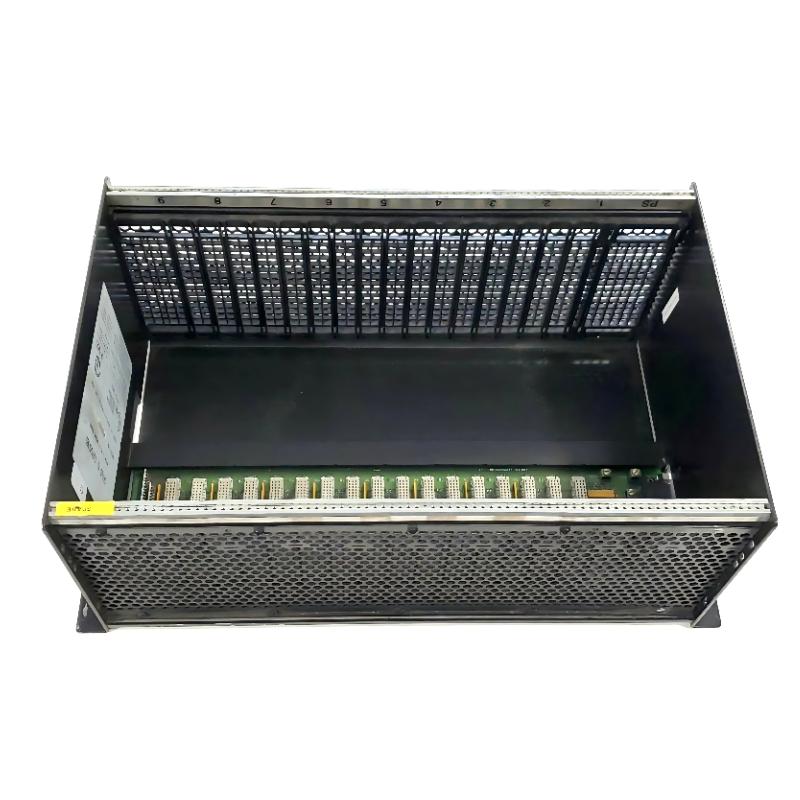

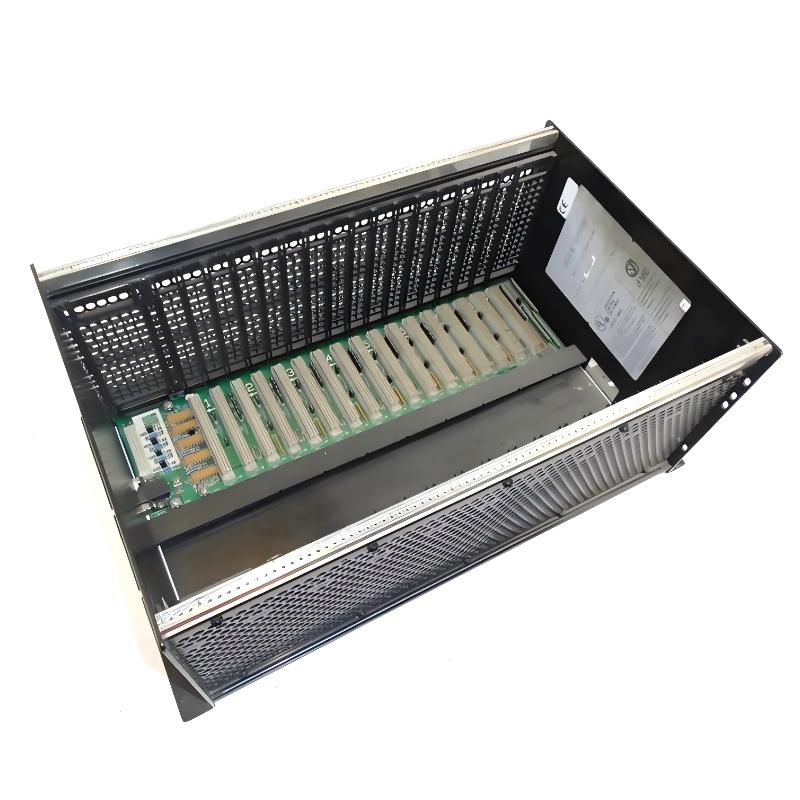

GE Fanuc IC697CHS782 Series 90-70 PLC Rack / VME Integrator Chassis
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697CHS782 VME Integrator Rack |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | Series 90-70 PLC Rack / VME Integrator Chassis |
| Series | GE Fanuc Series 90-70 |
| Function | High-density PLC rack supporting both GE IC697 modules and VMEbus modules |
| Architecture | IEEE 1014 VMEbus compliant backplane |
| Slot Capacity | 17 slots |
| Slot Pitch | 0.8 inch (supports single-width VME and dual-width IC697 modules) |
| Module Compatibility | IC697 PLC modules + third-party VME modules |
| CPU Compatibility | Supports Series 90-70 CPUs (e.g., IC697CPX/CGR series) |
| Power Supply Slot | Dedicated slot for Series 90-70 power supplies |
| Backplane Power | +5 VDC, +12 VDC, -12 VDC |
| Current Capacity | Up to ~20 A @ 5 VDC (system dependent) |
| Cooling Method | Natural convection (optional fan tray available) |
| Mounting Type | Rear panel / industrial enclosure mounting |
| Redundancy Support | Not inherently redundant (system-dependent configuration only) |
| Expansion Support | Multi-rack expansion via IC697CBL700 series |
| Material | Industrial-grade steel chassis |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | ~5.8 kg |
| Dimensions | Approx. 483 mm × 283 mm × 185 mm |
FAQ
Q1: What is IC697CHS782 used for?
A: It is a high-density VME Integrator rack used in GE Fanuc Series 90-70 systems to host PLC modules and VMEbus cards in the same chassis.
Q2: How many slots does it have?
A: It provides 17 slots with 0.8-inch spacing for flexible module installation.
Q3: What makes IC697CHS782 different from standard CHS racks?
A: It supports both GE IC697 PLC modules and third-party VME modules, while standard racks only support IC697 modules.
Q4: Can it support redundancy?
A: It does not inherently provide redundancy, but redundancy can be achieved at system architecture level depending on CPU and configuration.
Q5: What is its main application?
A: It is used in large-scale industrial automation systems requiring high I/O density and mixed hardware integration.
Q6: Does it require a fan?
A: No, it uses convection cooling by default, but fan trays can be added for high thermal loads.
Q7: What is the backplane type?
A: It uses a VMEbus-compliant industrial backplane (IEEE 1014 standard).
Q8: Is IC697CHS782 still used today?
A: It is mainly used in legacy GE Fanuc Series 90-70 installations and industrial upgrade projects.
GE Fanuc IC697CHS782 Series 90-70 PLC Rack / VME Integrator Chassis is in stock. Please contact us for a quick quote and competitive pricing.
