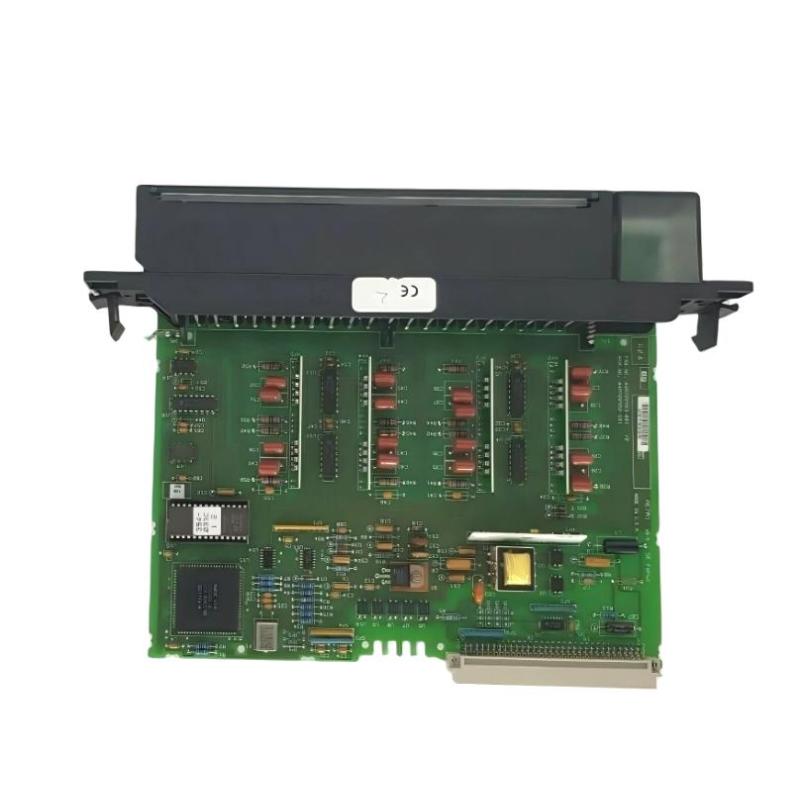

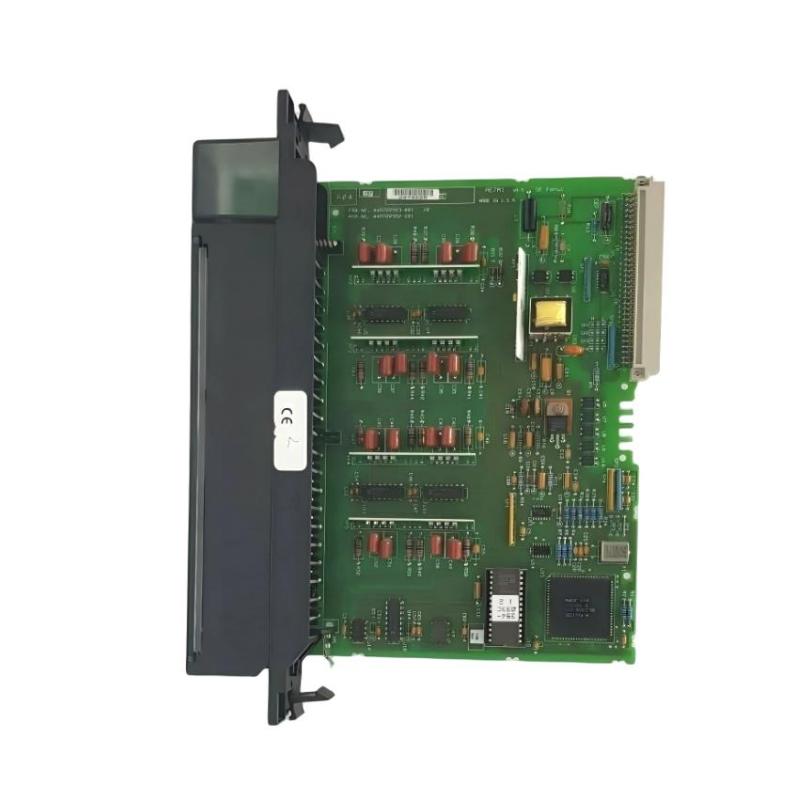

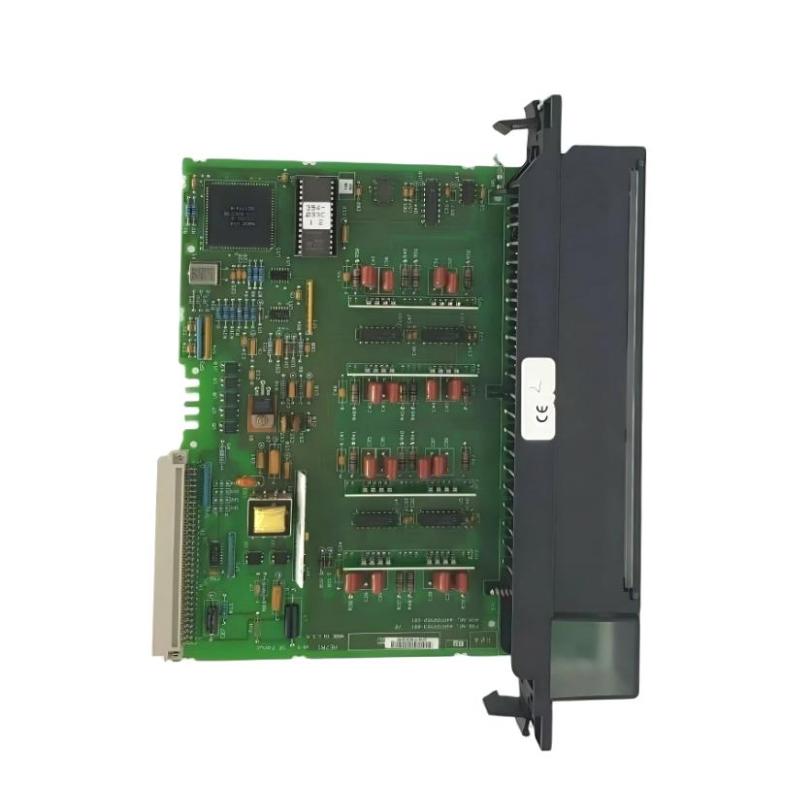

GE Fanuc IC697CLG440 Series 90-70 PLC Analog Input Expander
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697CLG440 Analog Input Expander Module |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | Series 90-70 PLC Analog Input Expander |
| Series | GE Fanuc Series 90-70 |
| Function | 16-channel analog input expander module for current/voltage signal acquisition |
| System Role | Works with base converter module to form analog input subsystem |
| Input Channels | 16 differential analog input channels |
| Input Types | Voltage (-10 V to +10 V), Current (4–20 mA) |
| Resolution | Up to 16-bit (system dependent configuration) |
| Conversion Method | A/D conversion via base converter + expander architecture |
| System Architecture | Modular analog subsystem (base converter + multiple expanders) |
| Maximum System Capacity | Up to ~120 input points per subsystem (typical configuration) |
| Backplane Interface | Series 90-70 VME-based PLC rack backplane |
| Slot Requirement | 1 slot (expander module) |
| Power Consumption | ~0.4 A @ 5 VDC (approx. 2 W) |
| Wiring Type | Differential analog field wiring |
| Diagnostics | Channel status, open-wire detection, overrange/underrange alarms |
| Configuration Method | Software-based (no DIP switches) |
| Compatibility | IC697ALG230 base converter required |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | ~0.6–1.3 kg (varies by revision) |
| Dimensions | Approx. 118 mm × 70 mm × 25 mm (standard Series 90-70 module form factor) |
FAQ
Q1: What is IC697CLG440 used for?
A: It is an analog input expander module used in GE Fanuc Series 90-70 PLC systems to increase the number of analog input channels.
Q2: Does IC697CLG440 work alone?
A: No, it must be used with a compatible base converter module (such as IC697ALG230) to form a complete analog input subsystem.
Q3: What signals does it support?
A: It supports both -10 to +10 V voltage signals and 4–20 mA current loop inputs.
Q4: How many channels does it provide?
A: It provides 16 analog input channels per module.
Q5: What is the maximum system capacity?
A: A full subsystem can typically support up to around 120 analog inputs depending on configuration.
Q6: Is IC697CLG440 a CPU module?
A: No, it is an I/O expansion module for analog signal acquisition.
Q7: Is configuration hardware or software based?
A: Configuration is fully software-based; no DIP switches or jumpers are required.
Q8: Is IC697CLG440 still used today?
A: It is mainly used in legacy GE Fanuc Series 90-70 systems in existing industrial installations.
GE Fanuc IC697CLG440 Series 90-70 PLC Analog Input Expander is in stock. Please contact us for a quick quote and competitive pricing.
