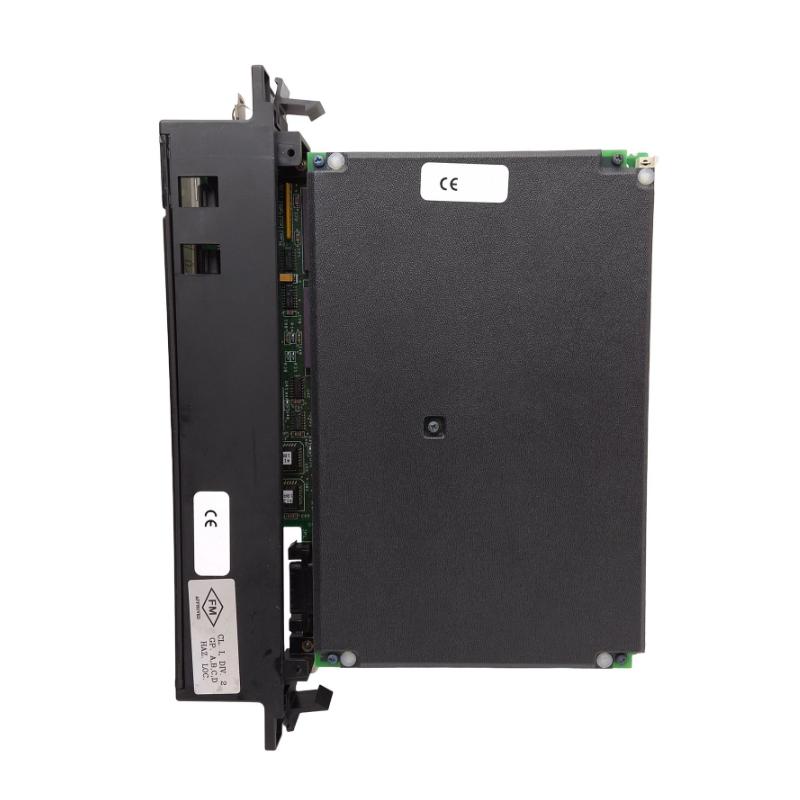

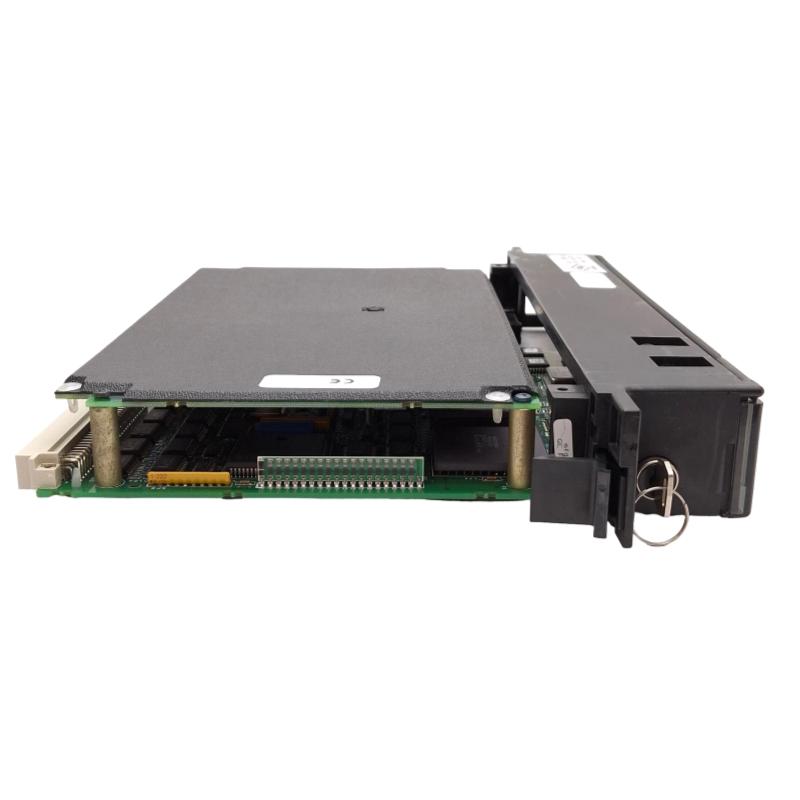

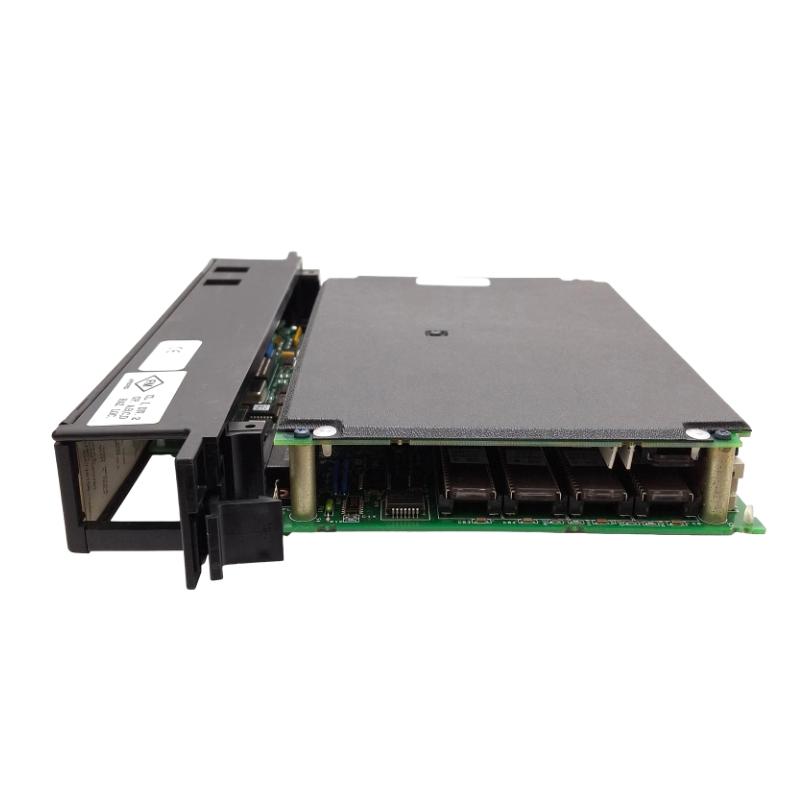

GE Fanuc IC697CPU781 Expandable PLC CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697CPU781 |
| Product Type | Expandable PLC CPU Module |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing unit for industrial automation and machine control systems |
| Processor | Intel 80386DX |
| Clock Speed | 16 MHz |
| Architecture | 32-bit PLC CPU architecture |
| Execution Speed | ~0.4 µs per Boolean instruction |
| I/O Capacity | Up to 12,000 discrete I/O points (mixed configuration) |
| Analog I/O Capacity | Up to 8,000 channels |
| Memory | Up to 512 KB battery-backed CMOS RAM (via expansion board) |
| Non-Volatile Memory | Optional 256 KB NVRAM support |
| Communication Port | 1 × RS-422 / RS-485 compatible 15-pin serial port |
| Network Support | Ethernet via optional LAN modules |
| Backplane System | VME C.1 Series 90-70 rack architecture |
| Programming Software | Logicmaster / VersaPro / Proficy Machine Edition |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~1.6 A |
| Battery Backup | Lithium battery for memory retention and clock |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.37–0.85 kg (varies by revision) |
| Installation Type | Single-slot rack-mounted CPU module |
| Status Indicators | RUN, OK, ENABLED, FAULT LEDs |
FAQ
What is IC697CPU781 used for?
It is a central processing unit used in GE Fanuc Series 90-70 PLC systems for executing real-time control logic in industrial automation applications.
What processor does IC697CPU781 use?
It is based on an Intel 80386DX 32-bit microprocessor operating at 16 MHz.
How many I/O points does it support?
It supports up to 12,000 discrete I/O points and up to 8,000 analog I/O channels depending on system configuration.
Does IC697CPU781 support Ethernet communication?
Yes, but only through optional LAN interface modules rather than built-in Ethernet ports.
What is the memory capacity?
It supports up to 512 KB of battery-backed CMOS RAM, with optional expansion to non-volatile memory modules.
Is IC697CPU781 a floating-point CPU?
It depends on configuration and system setup; floating-point operations are typically handled through system support rather than dedicated hardware.
What is the power requirement?
It operates on 5 VDC supplied via the rack backplane, with a typical current draw of around 1.6 A.
Is IC697CPU781 still used today?
It is mainly found in legacy GE Fanuc Series 90-70 installations and is generally maintained rather than deployed in new systems.
GE Fanuc IC697CPU781 Expandable PLC CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
