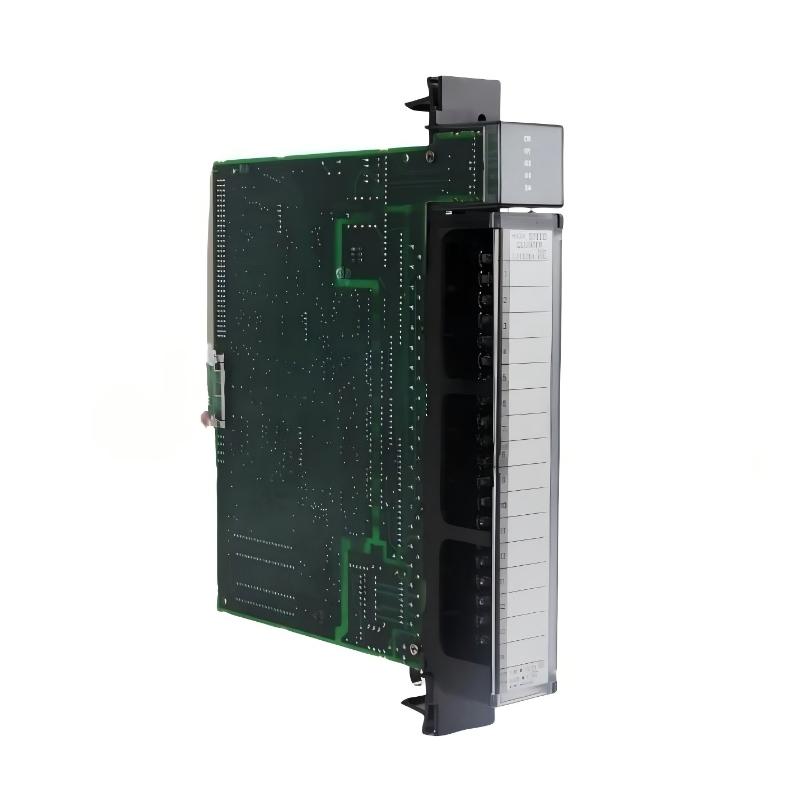

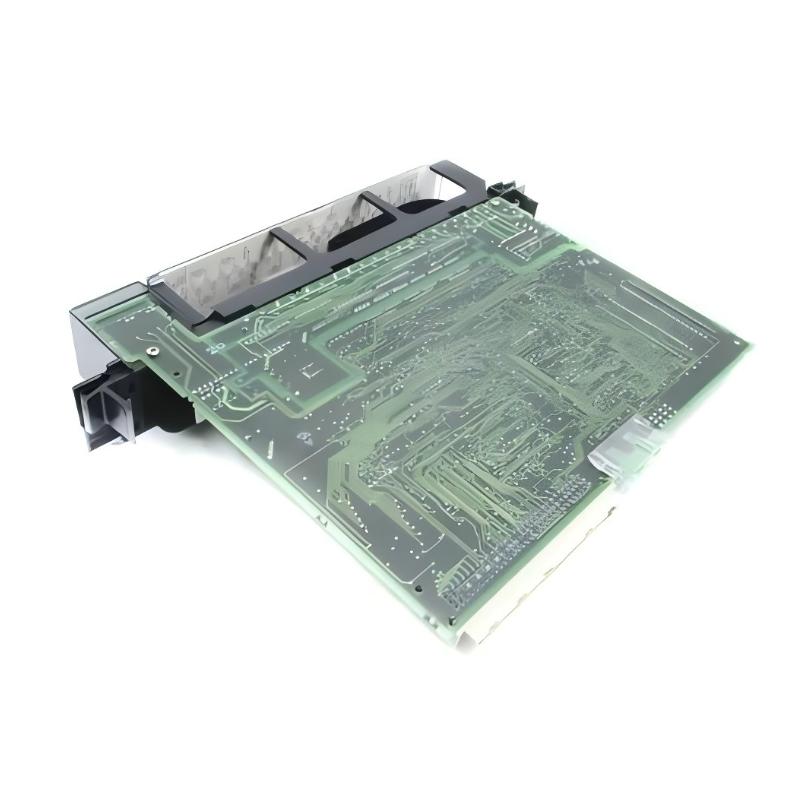

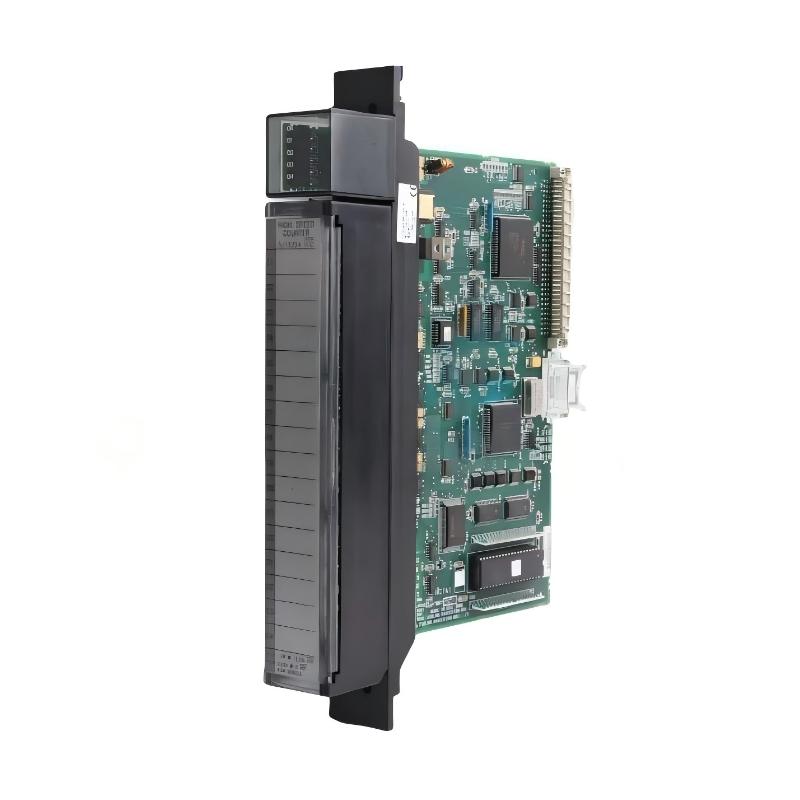

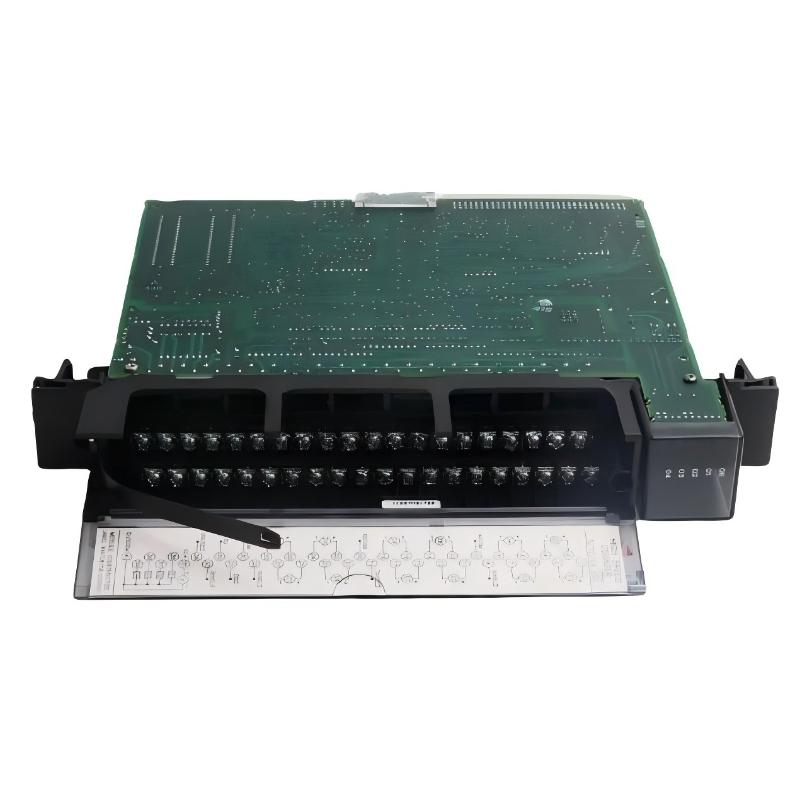

GE Fanuc IC697HSC700 High-Speed Counter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697HSC700 |
| Product Type | High-Speed Counter Module |
| Series | GE Fanuc Series 90-70 |
| Function | Dedicated high-speed pulse counting and frequency measurement module for industrial control systems |
| Primary Use | Encoder feedback, position tracking, speed measurement, and high-speed event counting |
| Input Channels | 4 independent high-speed counter channels |
| Counting Modes | Up/Down counting, frequency measurement, pulse/direction, quadrature (A/B phase) |
| Maximum Input Frequency | Up to 200 kHz (per channel, application dependent) |
| Input Type | Differential and single-ended TTL-compatible inputs |
| Signal Compatibility | Encoders, proximity sensors, pulse generators |
| Resolution | Configurable based on system scaling and encoder input |
| Backplane Interface | GE Series 90-70 VME C.1 rack bus |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~1.0 A |
| Isolation | Optical isolation between field inputs and backplane logic |
| Status Indicators | Channel activity LEDs and module OK/fault indicators |
| Configuration | Software-configurable via PLC programming tools |
| Programming Support | Logicmaster / VersaPro / Proficy Machine Edition |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | Single-slot rack-mounted module |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.7–1.0 kg |
FAQ
What is IC697HSC700 used for?
It is a high-speed counter module used in GE Fanuc Series 90-70 PLC systems to process fast pulse signals from encoders, sensors, and measurement devices.
How many channels does it support?
It supports 4 independent high-speed counting channels.
What is the maximum input frequency?
It can typically handle up to 200 kHz per channel depending on configuration and signal conditions.
What types of signals can it process?
It supports TTL-compatible signals, including quadrature encoder inputs, pulse/direction signals, and simple high-speed pulses.
Does IC697HSC700 perform control logic?
No. It only performs high-speed counting and measurement; control logic is handled by the CPU module.
Is isolation provided?
Yes. The module includes optical isolation between field inputs and the PLC backplane.
Can it measure speed and position?
Yes. It is commonly used for speed measurement, position tracking, and motion-related applications.
Is IC697HSC700 still used today?
It is primarily found in legacy GE Fanuc Series 90-70 installations and is maintained rather than used in new systems.
GE Fanuc IC697HSC700 High-Speed Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
