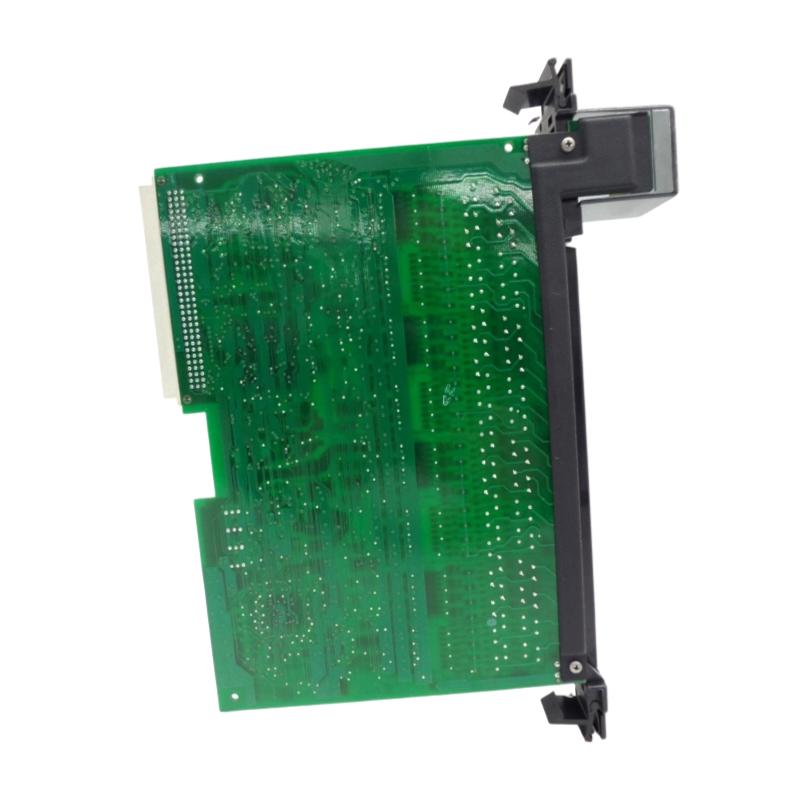

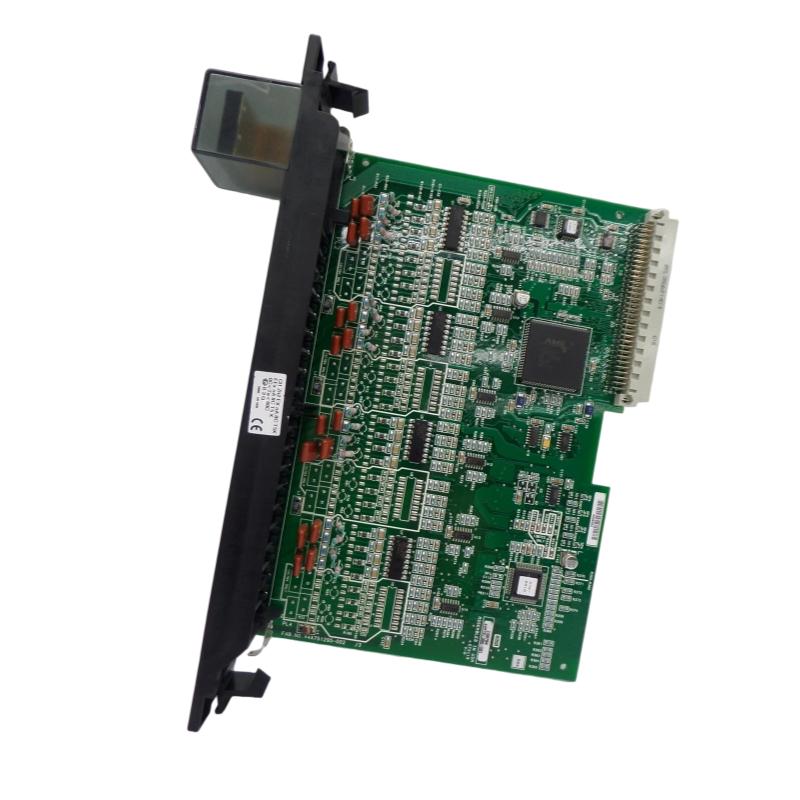

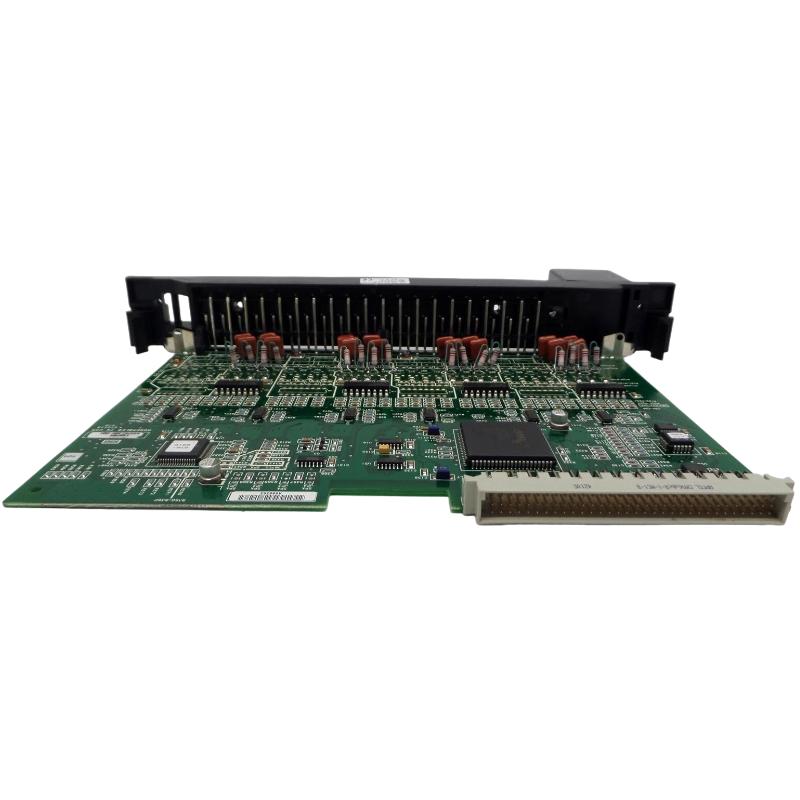

GE Fanuc IC697MDL251 AC Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697MDL251 |
| Product Type | AC Input Module |
| Series | GE Fanuc Series 90-70 |
| Function | Digital input module for monitoring AC field device ON/OFF status in PLC systems |
| Input Channels | 16 points |
| Input Voltage Range | 120 VAC nominal (approx. 85–132 VAC operating range) |
| Input Groups | 4 isolated groups of 4 inputs each |
| Input Frequency | 47–63 Hz |
| Input Type | AC reactive input with internal filtering |
| Input Filter Time | ~20 ms typical |
| On-State Current | Low milliamp sensing current per point |
| Off-State Leakage | Very low off-state current to avoid false triggering |
| Backplane Power Consumption | ~0.3–0.4 A at 5 VDC |
| Isolation | Group-to-group and field-to-backplane isolation |
| Status Indicators | 16 LED indicators (one per input channel) |
| Compatibility | GE Series 90-70 I/O rack system |
| Mounting Type | Single-slot rack-mounted module |
| Power Supply | 5 VDC via rack backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.5 kg |
FAQ
What is IC697MDL251 used for?
It is a 16-point AC input module used in GE Fanuc Series 90-70 PLC systems to read ON/OFF signals from AC-powered field devices such as relays, switches, and auxiliary contacts.
How is IC697MDL251 different from IC697MDL240?
IC697MDL251 is designed with 16 isolated AC input points (4 groups of 4), offering better wiring flexibility and isolation compared to simpler AC input modules.
What voltage does it support?
It operates at 120 VAC nominal, typically within an 85–132 VAC range.
Does it support DC inputs?
No. IC697MDL251 is designed for AC input signals only.
Why are the inputs grouped?
The 16 inputs are divided into 4 isolated groups to improve electrical noise immunity and allow flexible field wiring configurations.
Does it include input filtering?
Yes. It typically includes around a 20 ms input filter to reduce noise and contact bounce.
What devices are commonly connected to it?
AC relays, limit switches, pushbuttons, and other industrial ON/OFF field devices.
Is IC697MDL251 still used today?
It is mainly found in legacy GE Fanuc Series 90-70 systems and is typically replaced during modernization projects.
GE Fanuc IC697MDL251 AC Input Module is in stock. Please contact us for a quick quote and competitive pricing.
