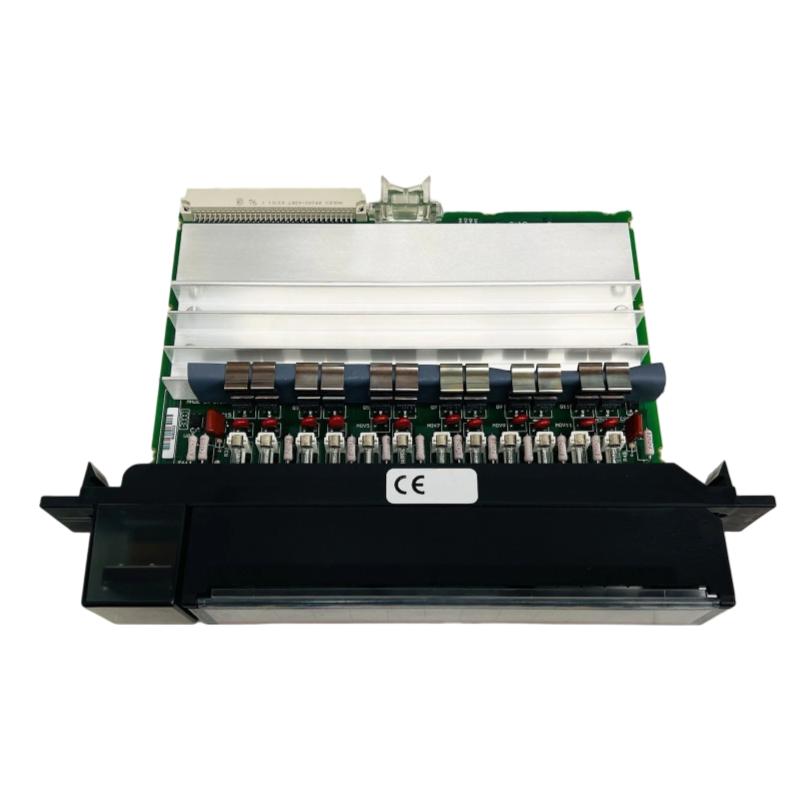

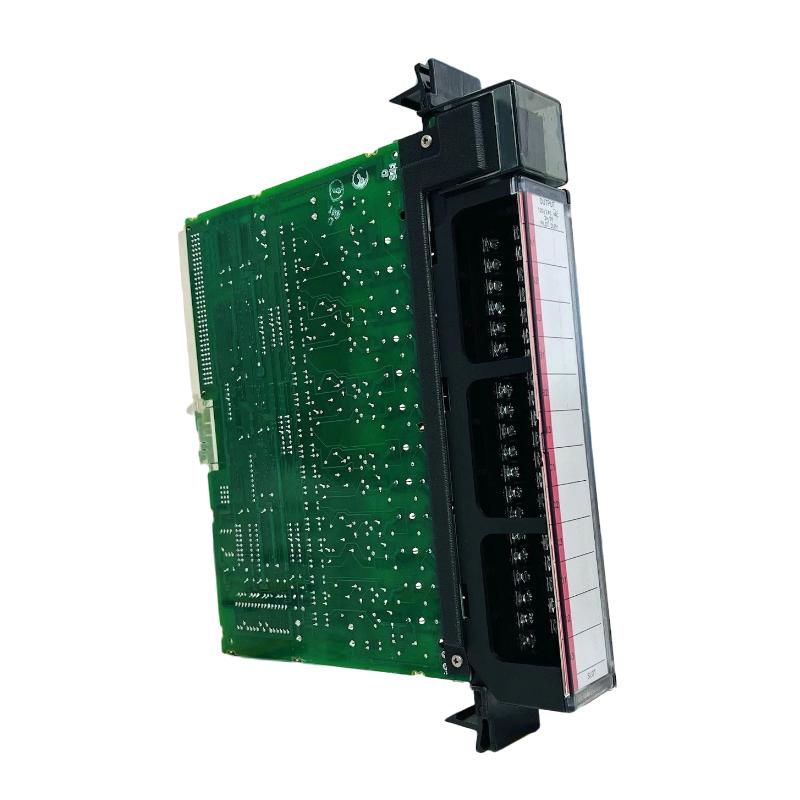

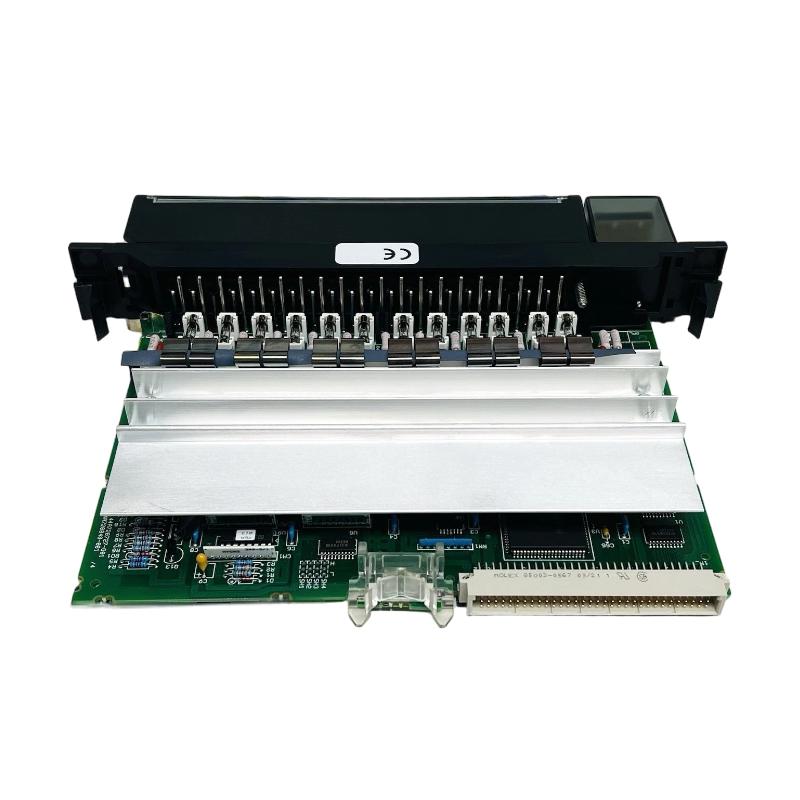

GE Fanuc IC697MDL341 AC Discrete Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697MDL341 |
| Product Type | AC Discrete Output Module |
| Series | GE Fanuc Series 90-70 |
| Function | Digital output module used to switch AC field loads in industrial PLC control systems |
| Output Channels | 12 points |
| Output Voltage Range | 120 / 240 VAC |
| Output Type | Fully isolated triac outputs |
| Output Current | 2 A per point |
| Module Current Capacity | Up to 16 A total (thermal limited) |
| Output Isolation | Individual isolation per output point |
| Load Types | Inductive, resistive, and incandescent loads |
| Surge Capability | Up to 10× rated inrush current |
| Protection | Output fusing + thermal protection |
| Response Time | ON ~1 ms / OFF half-cycle AC |
| Backplane Power Consumption | ~0.25 A at 5 VDC |
| Status Indicators | 12 LED indicators (one per output point) |
| Fault Indication | Fuse/diagnostic status LED |
| Compatibility | GE Series 90-70 rack I/O system |
| Mounting Type | Single-slot rack-mounted module |
| Power Supply | 5 VDC via rack backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.8–1.0 kg |
FAQ
What is IC697MDL341 used for?
It is a 12-point AC output module used in GE Fanuc Series 90-70 PLC systems to control AC-powered field devices such as relays, solenoids, motor starters, and indicator lamps.
What output voltage does IC697MDL341 support?
It supports 120/240 VAC AC loads depending on system wiring and field configuration.
How many outputs does it have?
It provides 12 individually isolated output channels.
What is the output current rating?
Each output point is rated at 2 A, with a total module capacity of about 16 A (thermally limited).
What type of switching device is used?
It uses triac-based AC switching for solid-state output control.
Does IC697MDL341 support inductive loads?
Yes. It supports inductive, resistive, and incandescent loads, with high inrush capability up to 10× rated current.
Does it include protection features?
Yes. It includes fusing per output and thermal protection for safe operation.
Is IC697MDL341 still in production?
No. It is a legacy GE Fanuc Series 90-70 module mainly used in existing industrial installations and replaced during system upgrades.
GE Fanuc IC697MDL341 AC Discrete Output Module is in stock. Please contact us for a quick quote and competitive pricing.
