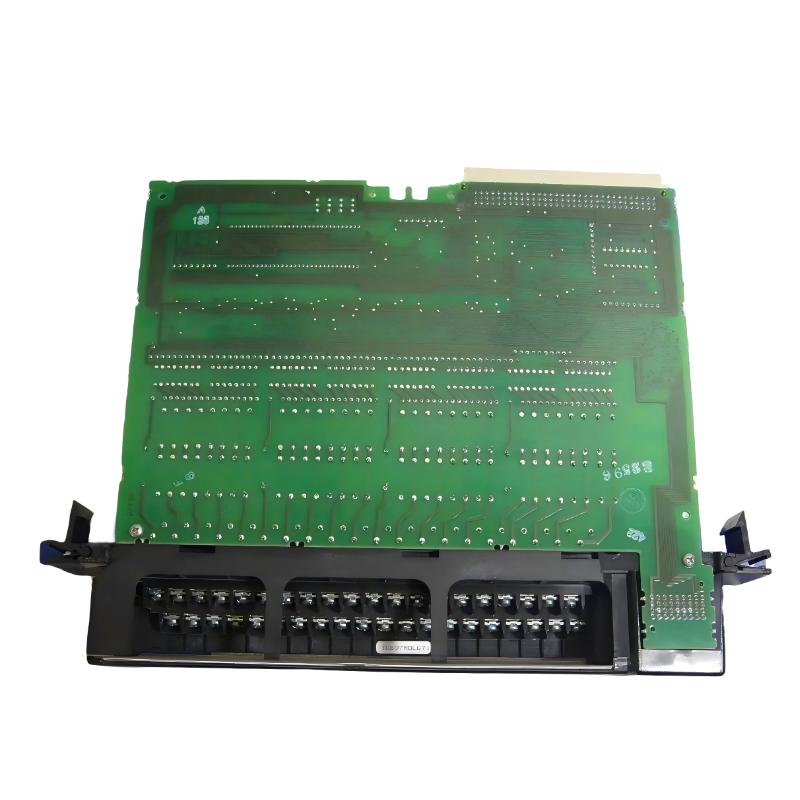

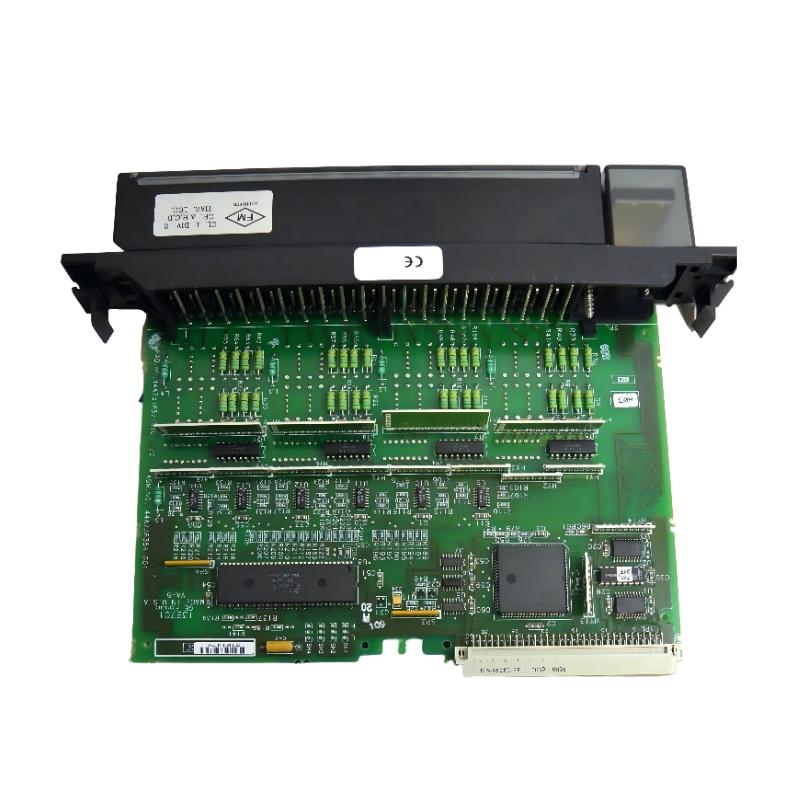

GE Fanuc IC697MDL671 Interrupt Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697MDL671 |
| Product Type | Interrupt Input Module |
| Series | GE Fanuc Series 90-70 |
| Function | High-speed discrete input module designed for interrupt-driven signal acquisition in PLC systems |
| Input Channels | 16 points total (14 interrupt inputs + 2 configuration inputs) |
| Input Voltage Range | 24 VDC nominal |
| Input Type | Positive / negative logic compatible DC input |
| Input Groups | 4 isolated groups of 4 inputs each |
| Interrupt Capability | 14 dedicated interrupt-capable inputs for fast event response |
| Configuration Inputs | 2 inputs used for module configuration functions |
| Input Current | Approx. 2–7 mA per point (depending on field voltage) |
| Input Filtering | Selectable 1 ms / 10 ms filtering |
| Response Time | Sub-millisecond interrupt recognition (application dependent) |
| Backplane Power Consumption | ~0.3–0.4 A at 5 VDC |
| Isolation | 1500 VAC field-to-backplane isolation |
| Status Indicators | LED indicators for channel status and module health |
| Compatibility | GE Series 90-70 VME C.1 rack system |
| Mounting Type | Single-slot rack-mounted module |
| Power Supply | 5 VDC via rack backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.7–1.0 kg |
FAQ
What is IC697MDL671 used for?
It is an interrupt input module used in GE Fanuc Series 90-70 PLC systems to capture fast external events that require immediate CPU response.
How is it different from standard input modules?
Unlike standard digital input modules, it supports interrupt-driven inputs, allowing the PLC to react immediately to signal changes without waiting for normal scan cycles.
How many interrupt inputs does it have?
It provides 14 interrupt-capable inputs plus 2 configuration inputs, totaling 16 channels.
What type of signals does it accept?
It accepts 24 VDC industrial signals, typically from proximity sensors, limit switches, and fast switching devices.
What is the advantage of interrupt inputs?
They allow real-time event detection, improving response time for high-speed or safety-critical applications.
Does it require special programming?
Yes. The PLC program must define interrupt routines to handle events generated by this module.
Is IC697MDL671 still used today?
It is primarily used in legacy GE Fanuc Series 90-70 systems and is typically replaced during system modernization projects.
GE Fanuc IC697MDL671 Interrupt Input Module is in stock. Please contact us for a quick quote and competitive pricing.
