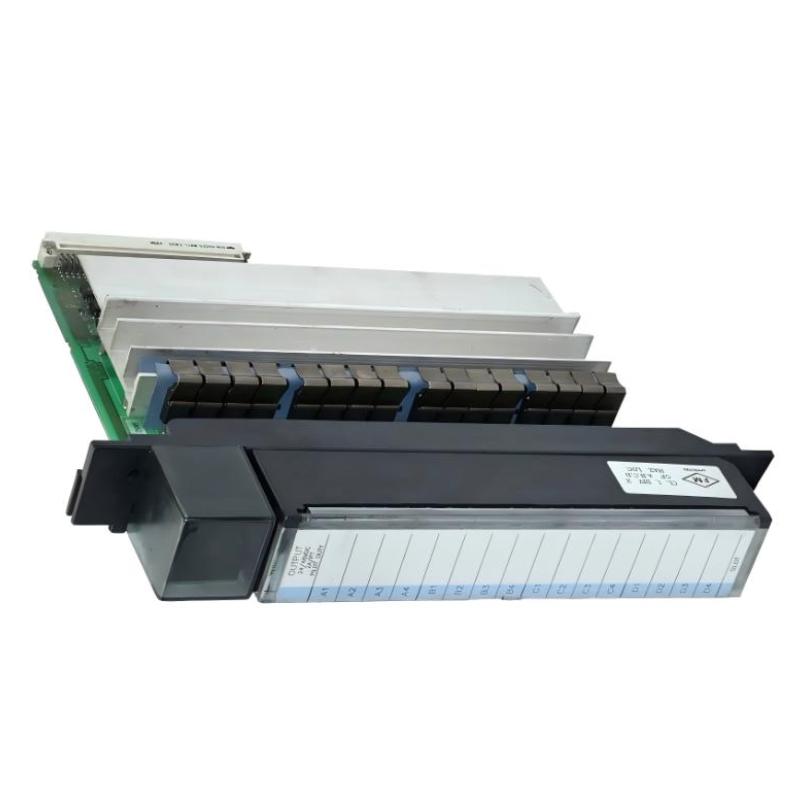

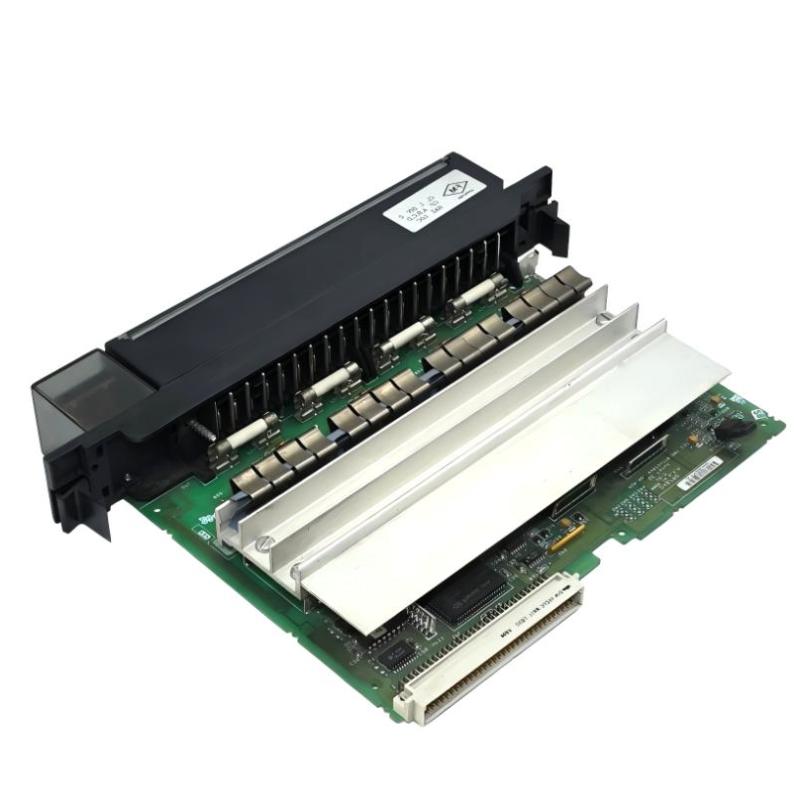

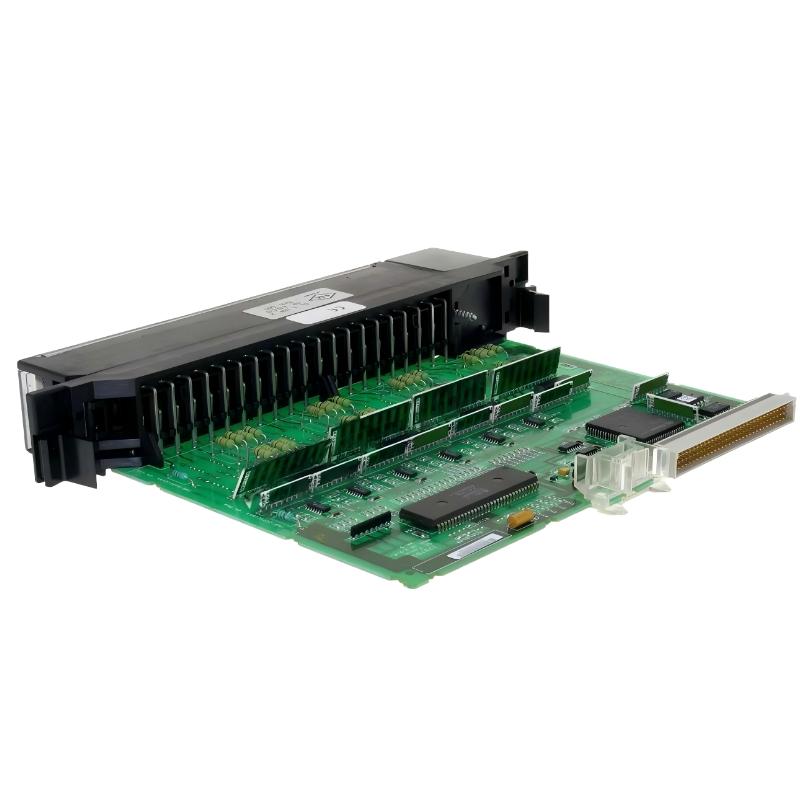

GE Fanuc IC697MDL740 DC Discrete Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697MDL740 |
| Product Type | DC Discrete Output Module |
| Series | GE Fanuc Series 90-70 |
| Function | Digital output module used to control DC field devices such as relays, solenoids, lamps, and contactors |
| Output Channels | 16 points |
| Output Voltage Range | 12–24 VDC |
| Output Configuration | 2 isolated groups of 8 outputs each |
| Output Type | Transistor (sourcing / positive logic) |
| Output Current | 0.5 A per point |
| Group Current Capacity | 2 A per common group |
| Inrush Current | Up to ~4.8 A for 10 ms (typical load dependent) |
| Output Response Time | ~2 ms ON / ~2 ms OFF |
| Leakage Current | ≤ 1 mA OFF-state |
| Backplane Power Consumption | ~110 mA at 5 VDC (typical all outputs ON) |
| Isolation | 1500 VAC field-to-backplane isolation |
| Status Indicators | 16 LED indicators (one per output channel) |
| Protection | Internal short-circuit protection and external fuse recommended per group |
| Compatibility | GE Series 90-70 rack I/O system |
| Mounting Type | Single-slot rack-mounted module |
| Power Supply | 5 VDC via rack backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.6–0.9 kg |
FAQ
What is IC697MDL740 used for?
It is a 16-point DC output module used in GE Fanuc Series 90-70 PLC systems to drive external DC loads such as relays, solenoids, indicator lights, and small actuators.
What type of outputs does it provide?
It provides transistor-based DC sourcing outputs operating in the 12–24 VDC range.
How many output channels does it have?
It has 16 outputs divided into two isolated groups of 8 points each.
What is the output current rating?
Each point can drive up to 0.5 A, with a group limit of about 2 A per common.
Is IC697MDL740 fast switching?
Yes. It has a fast response time of approximately 2 ms, suitable for general industrial control applications.
What kind of protection does it include?
It includes internal short-circuit protection, though external fusing is recommended for field wiring safety.
What devices are typically connected to it?
Typical loads include solenoid valves, relay coils, lamps, buzzers, and small DC actuators.
Is IC697MDL740 still used today?
It is mainly used in legacy GE Fanuc Series 90-70 installations and is commonly replaced during modernization projects.
