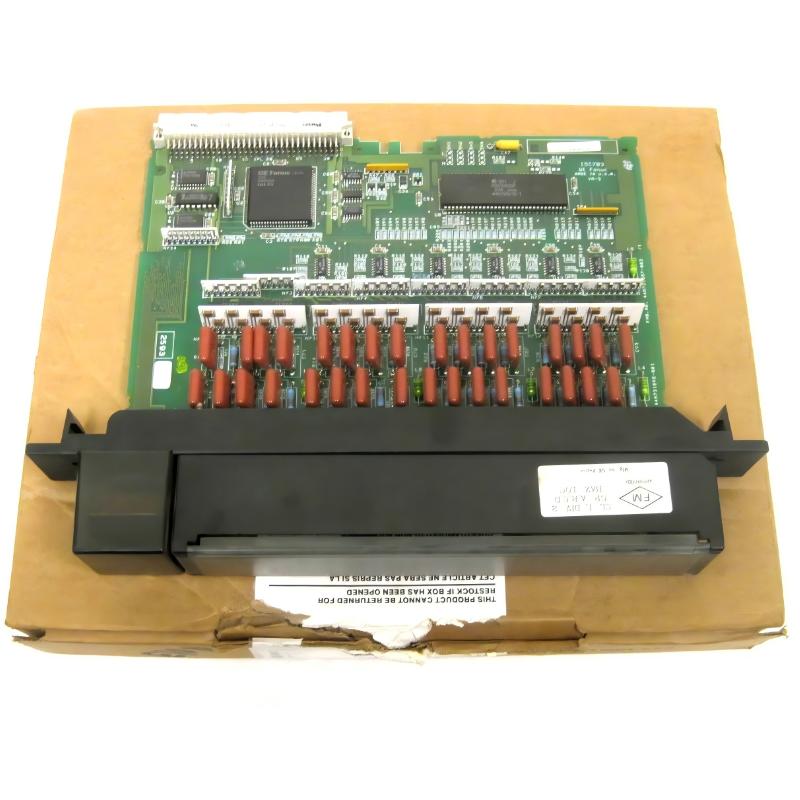

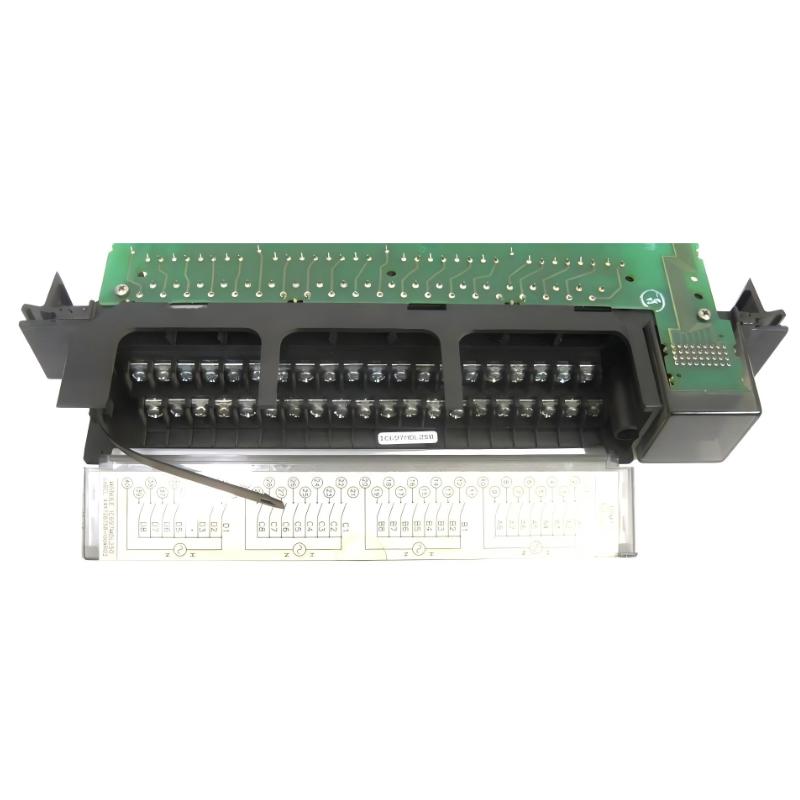

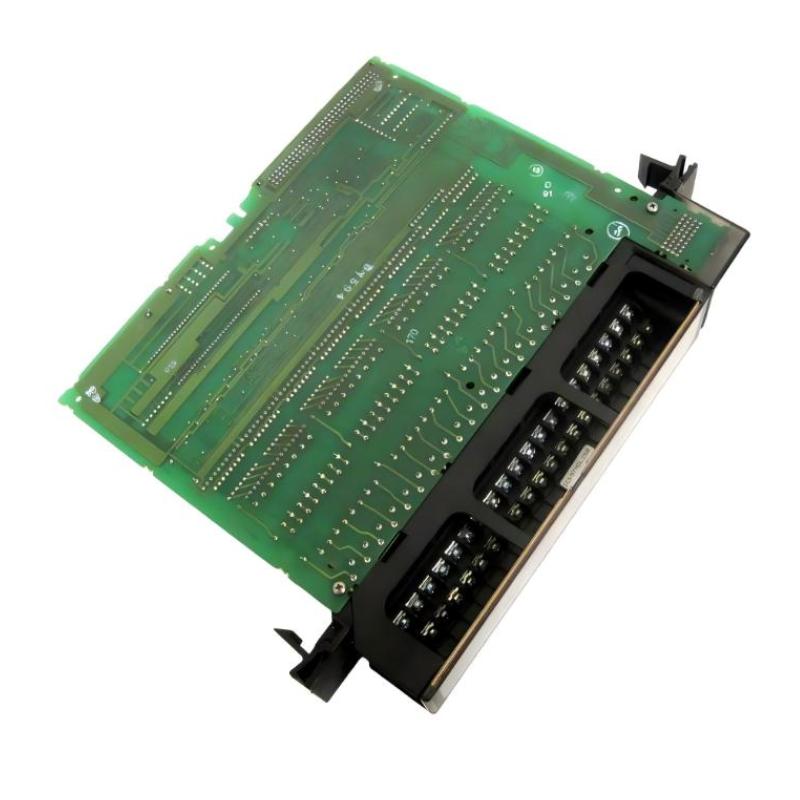

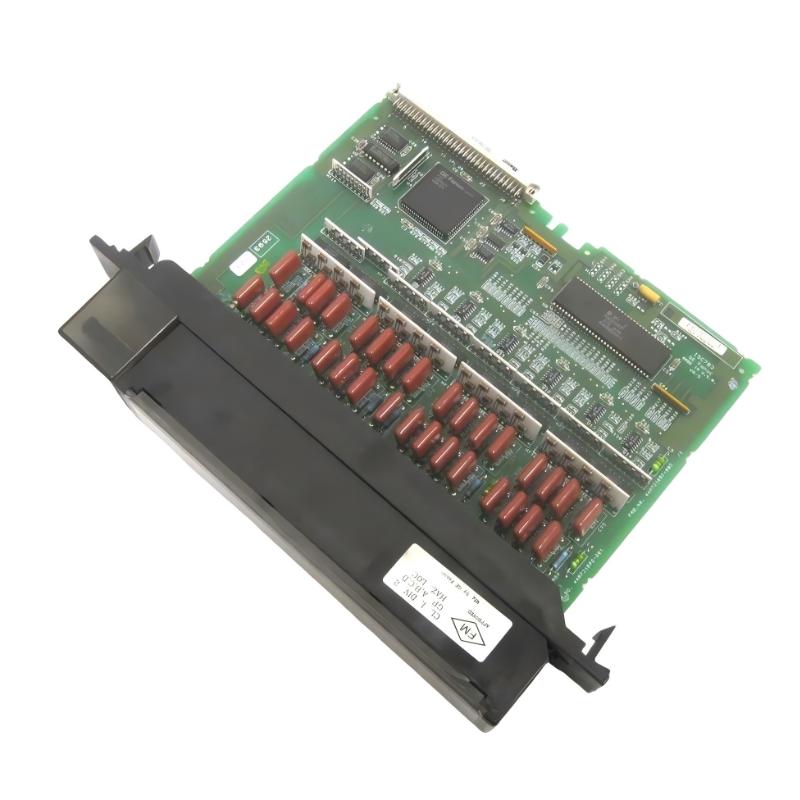

GE Fanuc IC697MLD250 Discrete Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC697MLD250 |
| Manufacturer | GE Fanuc |
| Product Type | Discrete Input Module |
| PLC Series | Series 90-70 |
| Input Channels | 32 points (4 groups of 8 isolated inputs) |
| Input Voltage | 120 VAC nominal |
| Input Voltage Range | 0 – 132 VAC (50/60 Hz) |
| Input Frequency | 50/60 Hz |
| Isolation | 250 VAC continuous, 1500 VAC for 1 minute (group-to-group and field-to-backplane) |
| Input Current | ~7 mA per point (typical) |
| Input Configuration | Single-ended, group isolated |
| Input Filter Time | 20 ms (typical, noise suppression) |
| Response Time | Depends on filter setting (approx. 1–4 AC cycles) |
| Backplane Power Consumption | ~220 mA @ 5 VDC (all inputs ON) |
| LED Indicators | Yes, per input channel status |
| Diagnostic Function | CPU-reported diagnostics |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Dimensions | 2.1 cm × 20.2 cm × 26.1 cm (approx.) |
| Weight | 0.30 kg (approx.) |
| Mounting Type | Rack-mounted (Series 90-70 backplane) |
| Application | Industrial automation, PLC digital input acquisition |
FAQ
What is the IC697MLD250 used for?
It is a PLC discrete input module used to collect ON/OFF signals from field devices such as switches, sensors, and pushbuttons.
How many input points does it support?
It provides 32 input points arranged in four isolated groups of eight channels each.
What type of input signal does it accept?
It accepts 120 VAC industrial AC input signals within a 0–132 VAC range.
Is each input isolated?
Inputs are isolated in groups of eight, not individually, to reduce noise and improve electrical safety.
What PLC system is it compatible with?
It is designed for the GE Fanuc Series 90-70 PLC platform.
What is the purpose of the input filter?
The 20 ms filter helps eliminate electrical noise and prevents false triggering from signal spikes.
How is the module powered?
It draws low-voltage DC power from the PLC backplane (5 VDC supply).
What happens if an input signal fails or fluctuates?
The built-in filtering and isolation help stabilize readings, and the PLC system can detect abnormal signal conditions through diagnostics.
GE Fanuc IC697MLD250 Discrete Input Module is in stock. Please contact us for a quick quote and competitive pricing.
