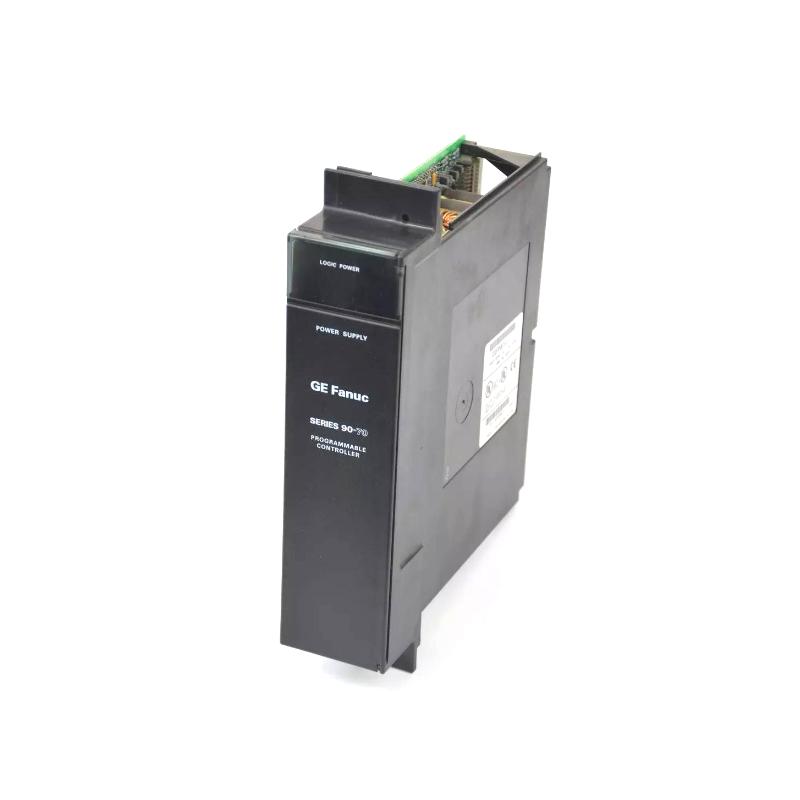

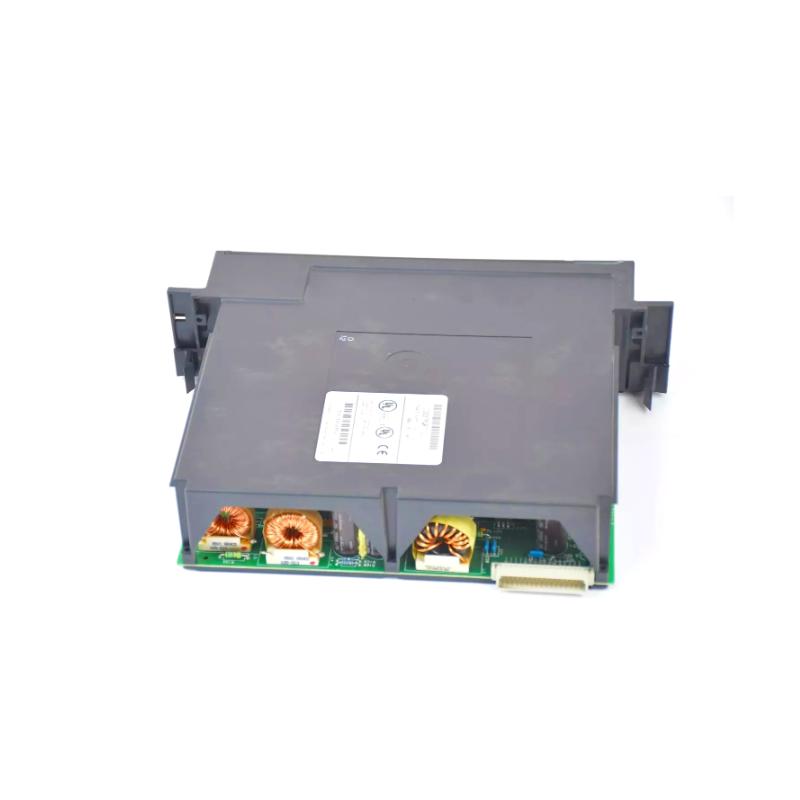

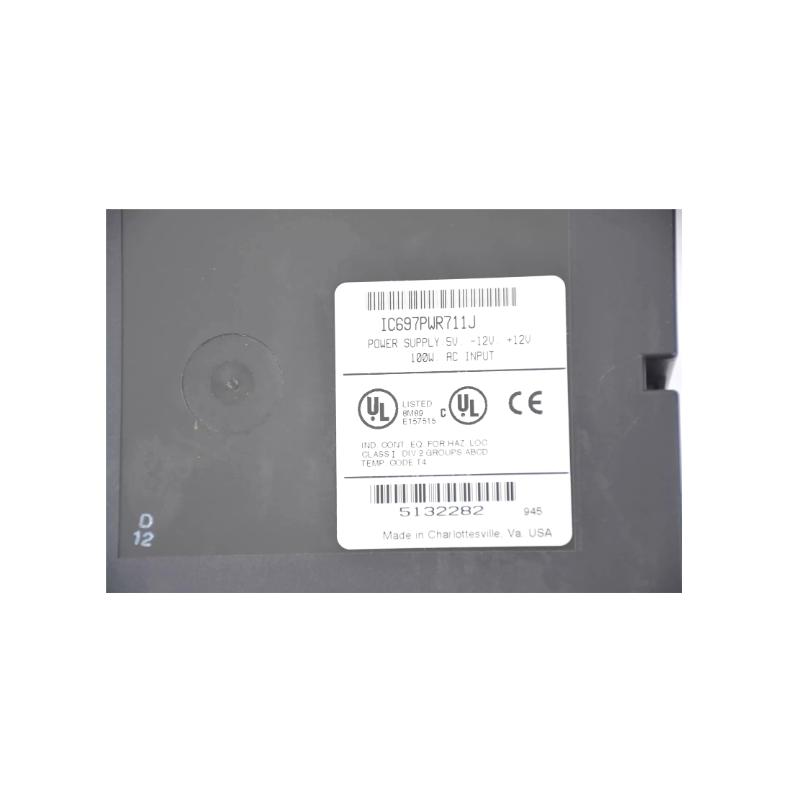

GE Fanuc IC697PWR711J Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC697PWR711J |
| Manufacturer | GE Fanuc Automation |
| Product Family | Series 90-70 PLC |
| Product Type | Power Supply Module |
| Module Type | Rack-Mounted Power Supply |
| Input Voltage (AC) | 90–264 VAC, 47–63 Hz |
| Input Voltage (DC) | 100–150 VDC |
| Nominal Input Voltage | 120/240 VAC or 125 VDC |
| Input Power | 135 W at Full Load |
| Output Power | 100 W Total |
| +5 VDC Output | 20 A Maximum |
| +12 VDC Output | 2 A Maximum |
| -12 VDC Output | 1 A Maximum |
| Power Factor | >0.93 (AC Operation) |
| Protection Features | Overcurrent Protection, Overvoltage Protection, Short-Circuit Protection |
| Hold-Up Time | 21 ms Minimum |
| Mounting Location | Leftmost Slot of Series 90-70 Rack |
| Dual Rack Support | Yes, Can Power a Second Rack via Interconnect Cable |
| Backplane Interface | 48-Pin Backplane Connector |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Environmental Rating | Class I, Division 2, Groups A, B, C, D |
| Dimensions (H × W × D) | 267 × 70 × 210 mm |
| Weight | 1.85 kg |
| Typical Applications | PLC Rack Power Distribution, CPU Power, I/O Module Power, Communication Module Power |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IC697PWR711J?
A1: The IC697PWR711J is a 100 W power supply module designed for GE Fanuc Series 90-70 PLC systems. It provides regulated DC power to CPUs, I/O modules, and communication modules.
Q2: What input voltages does the module support?
A2: The module accepts 90–264 VAC (47–63 Hz) or 100–150 VDC input power, making it suitable for a wide range of industrial power systems.
Q3: What output voltages are available?
A3: The module provides three regulated outputs: +5 VDC at 20 A, +12 VDC at 2 A, and -12 VDC at 1 A, with a total output power of 100 W.
Q4: Where is the IC697PWR711J installed?
A4: It is installed in the leftmost slot of a Series 90-70 rack and connects directly to the backplane through a 48-pin connector.
Q5: Can one power supply support multiple racks?
A5: Yes. The IC697PWR711J can power a second rack through an interconnecting cable, provided the total system load remains within the module’s power rating.
Q6: What protection features are included?
A6: The module includes electronic overcurrent, overvoltage, and short-circuit protection to help ensure reliable operation and system safety.
Q7: What are the typical applications of this power supply?
A7: It is commonly used to supply power for Series 90-70 PLC CPUs, I/O modules, analog modules, and communication modules in industrial automation systems.
Q8: Is the IC697PWR711J still available?
A8: The IC697PWR711J is a legacy Series 90-70 product. New surplus, refurbished, repair, and replacement services are still available through industrial automation suppliers.
GE Fanuc IC697PWR711J Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
