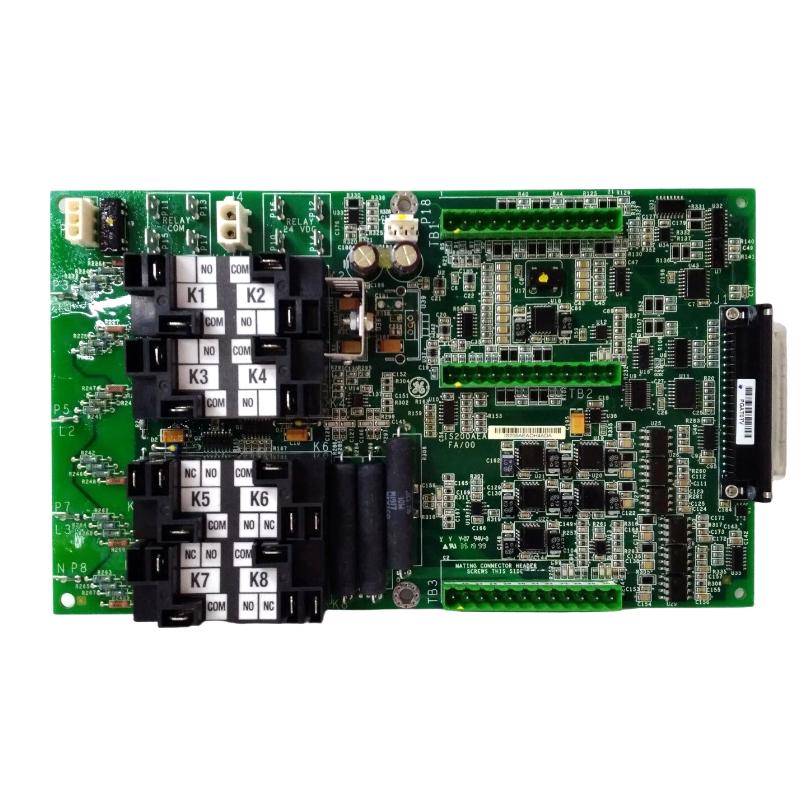

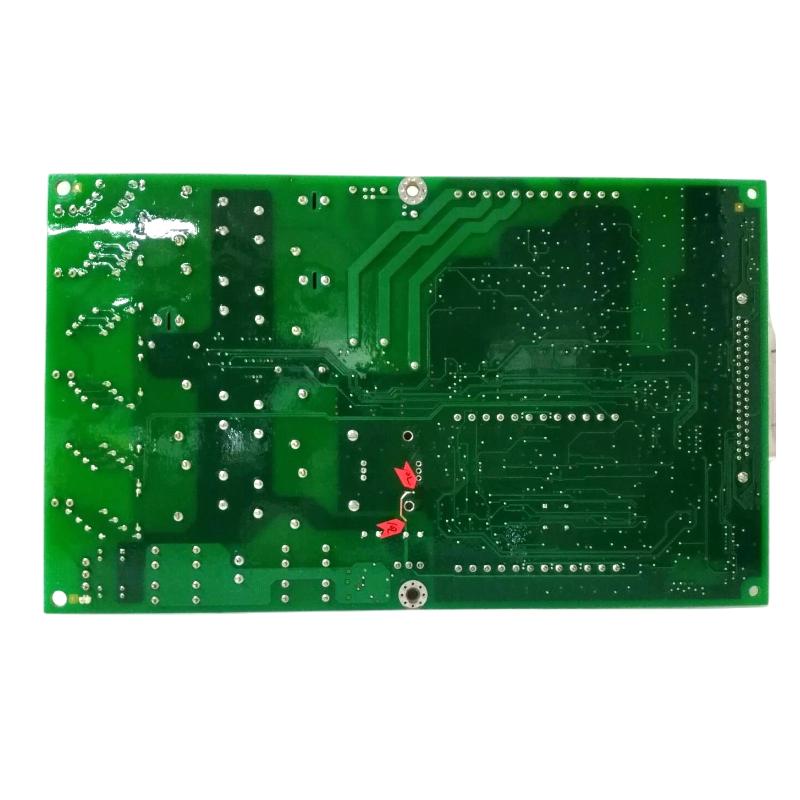

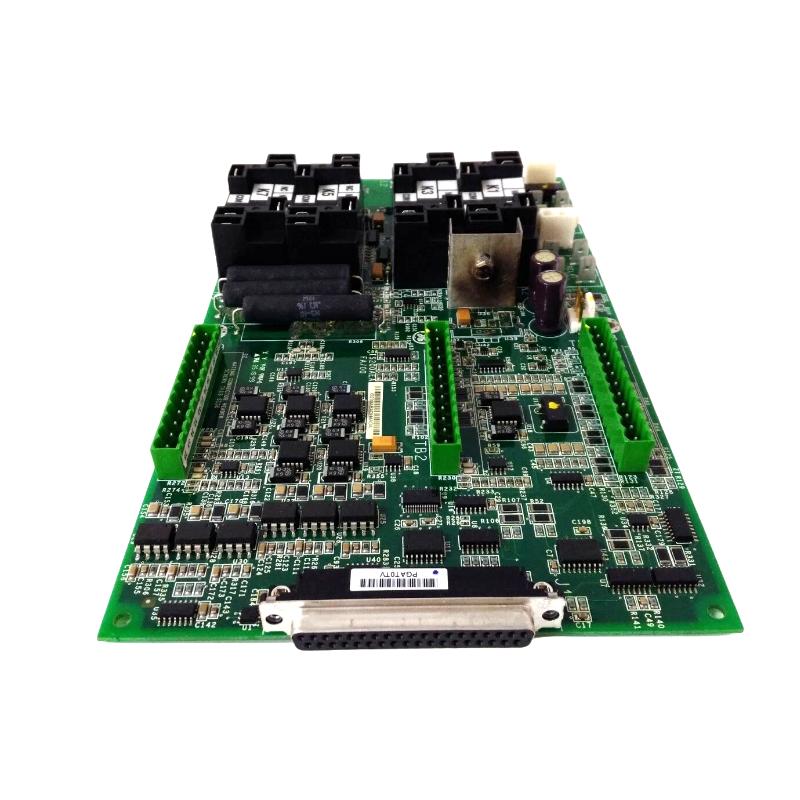

GE Fanuc IS200AEADH4ADA High-Speed Analog I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200AEADH4ADA |
| Manufacturer | GE Industrial / Fanuc / Mark VI |
| Product Family | EX2100 / Mark VI Excitation & Control System |
| Product Type | High-Speed Analog I/O Module |
| Module Type | AEADH4 Analog Module |
| Function | Provides Precise Analog Input and Output for Excitation and Control Systems |
| Input Channels | 16 Differential Analog Inputs |
| Input Range | ±10 VDC, ±5 VDC, 0–10 VDC |
| Input Resolution | 16-Bit ADC |
| Input Accuracy | ±0.1% Full Scale |
| Output Channels | 8 Analog Outputs |
| Output Range | 0–20 mA, 4–20 mA, 0–10 VDC |
| Output Resolution | 16-Bit DAC |
| Output Accuracy | ±0.1% Full Scale |
| Sample Rate | Up to 2 kHz per channel |
| Isolation | Channel-to-Channel and Channel-to-Backplane Isolation |
| Communication | ISBus / Control Backplane |
| LED Indicators | Module Status, Fault, Channel Activity |
| Backplane Slot | Single Slot Installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -30°C to +65°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | 147 × 70 × 120 mm |
| Weight | 0.80 kg |
| Typical Applications | Generator Excitation, Turbine Control, Process Control, High-Speed Analog Data Acquisition |
| Lifecycle Status | Legacy / Obsolete Product |
FAQ
Q1: What is the IS200AEADH4ADA?
A1: The IS200AEADH4ADA is a high-speed analog I/O module for GE EX2100 and Mark VI excitation/control systems. It provides precise analog input and output channels for advanced control applications.
Q2: How many input and output channels does it have?
A2: It has 16 differential analog inputs and 8 analog outputs.
Q3: What are the input and output ranges?
A3: Inputs support ±10 VDC, ±5 VDC, or 0–10 VDC; outputs support 0–20 mA, 4–20 mA, or 0–10 VDC.
Q4: What resolution and accuracy does the module provide?
A4: Both input and output channels have 16-bit resolution with ±0.1% full-scale accuracy.
Q5: What is the sampling rate?
A5: Each channel can be sampled at up to 2 kHz, suitable for high-speed control applications.
Q6: Where is the module installed?
A6: It is installed in a single backplane slot within EX2100 or Mark VI control racks.
Q7: What are typical applications?
A7: The module is used for generator excitation, turbine control, process control, and high-speed analog data acquisition.
Q8: Is the IS200AEADH4ADA still available?
A8: The module is a legacy/obsolete product. Refurbished, surplus, or replacement units may be sourced through industrial automation suppliers.
GE Fanuc IS200AEADH4ADA High-Speed Analog I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
