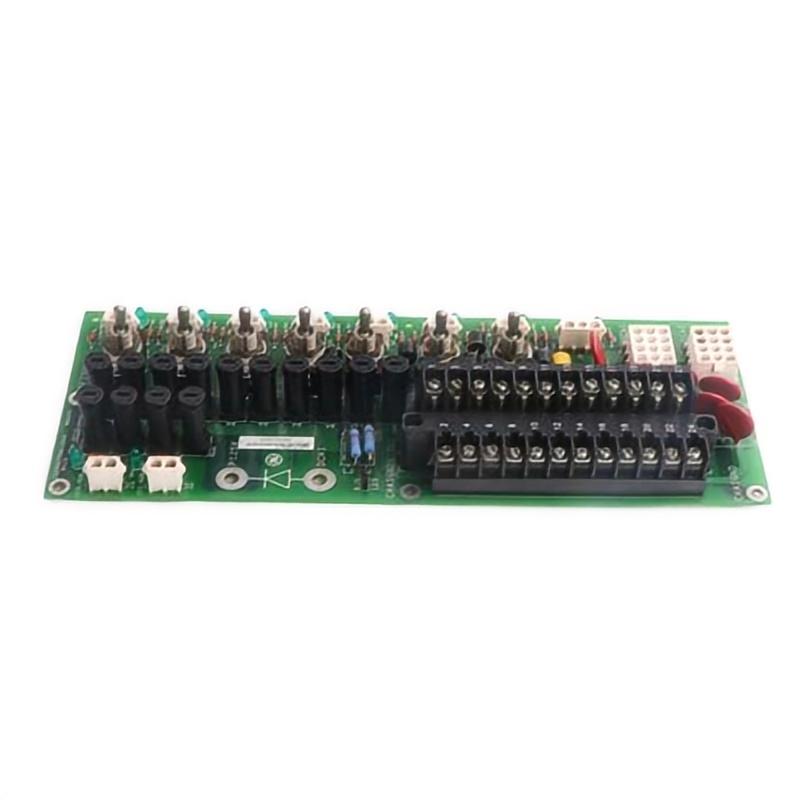

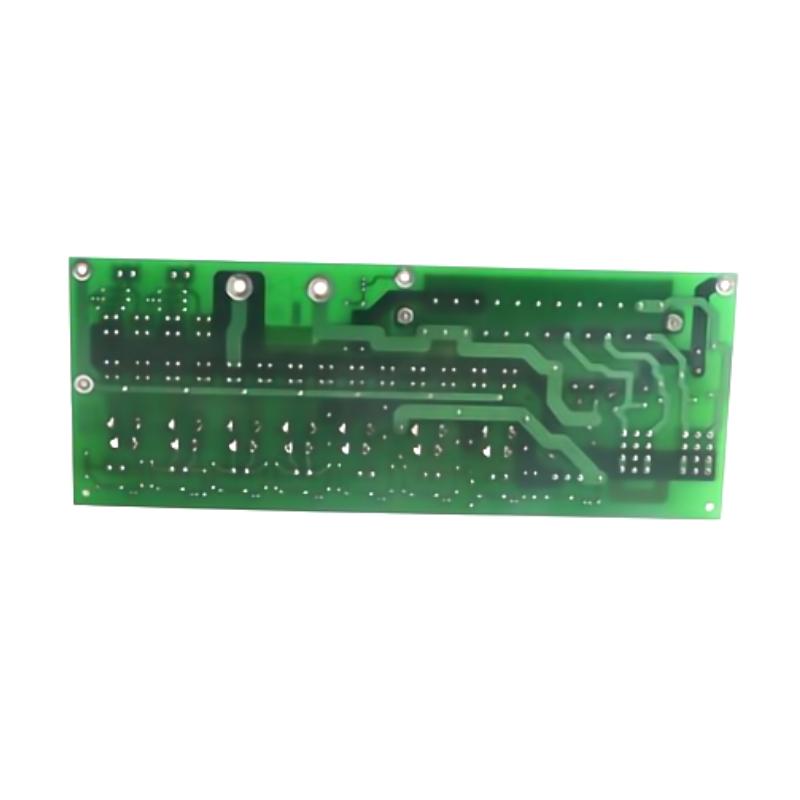

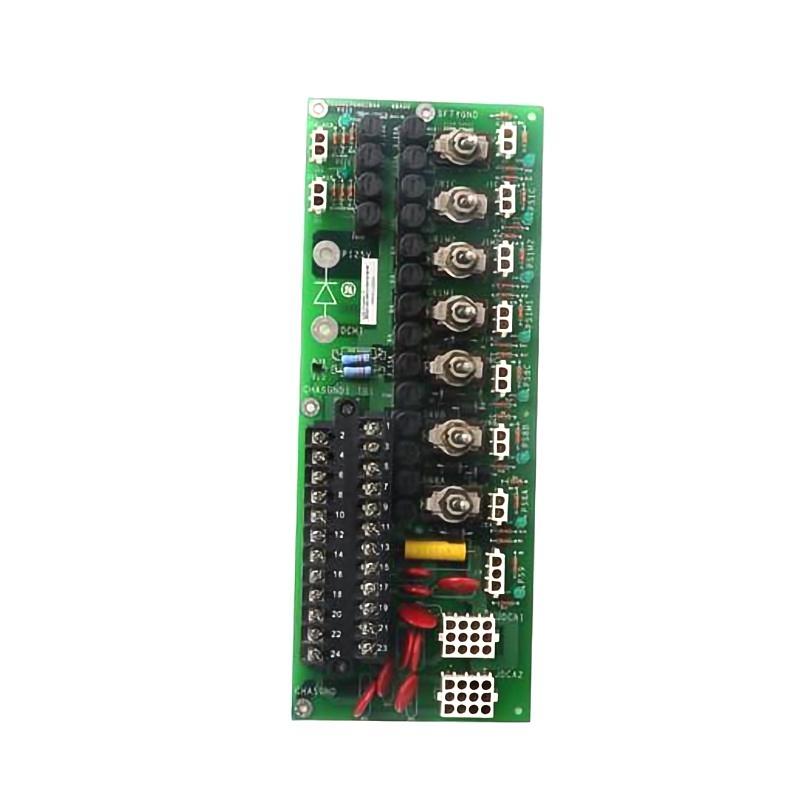

GE Fanuc IS200EPDMG1BAA Exciter Power Distribution Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | IS200EPDMG1BAA |
| Series | GE EX2100 Excitation System / Mark VI Speedtronic |
| Product Type | Exciter Power Distribution Module (EPDM) |
| System Application | Turbine-generator excitation control power distribution |
| Platform | EX2100 / Mark VI control architecture |
| Main Function | Distributes and conditions DC power to excitation system control and protection modules |
| System Role | Central power distribution unit inside excitation cabinet |
| Input Power | 125 V DC station battery input (typical EX2100 architecture) |
| AC Input Support | Optional AC inputs via external rectification (system dependent configuration) |
| Output Rails | Regulated distribution to control, I/O, and excitation modules (e.g., EGPA, EMIO, EXTB) |
| Protection Features | Fused outputs, surge protection, and branch-level isolation |
| Power Conditioning | Filtering and regulation for stable downstream supply |
| Redundancy Support | Dual-input power architecture for high availability systems |
| Switching Function | Allows isolation of individual power branches for maintenance |
| Communication | Internal backplane distribution (no external protocol) |
| Diagnostics | LED indicators for power status and fuse/branch health |
| Isolation | Electrical isolation between output branches |
| Board Type | Industrial power distribution PCB assembly |
| Mounting Type | Rack-mounted module on EPBP backplane system |
| Operating Environment | Industrial power generation (gas/steam turbine excitation systems) |
| Operating Temperature | -30°C to +65°C |
| Cooling Method | Cabinet airflow / natural convection |
| System Compatibility | GE EX2100 and Mark VI excitation systems |
| Dimensions (W × H × D) | Approx. 16 cm × 16 cm × 12 cm |
| Weight | Approx. 0.5–1.0 kg |
FAQ
1. What is IS200EPDMG1BAA used for?
It is used as a power distribution module in GE EX2100 excitation systems to supply regulated DC power to control and protection boards.
2. What is its main function?
It distributes 125 V DC power to modules such as EGPA, EMIO, EXTB, and other excitation system components.
3. Where is it installed?
It is installed on the EPBP backplane inside the excitation control cabinet.
4. Does it support redundancy?
Yes, it supports dual power input configurations to improve system reliability and uptime.
5. What protections are included?
It includes fused outputs, surge protection, and branch isolation to protect downstream modules.
6. Is it part of control logic?
No, it is strictly part of the power distribution subsystem, not control logic.
7. What happens during a fault?
Faulted output branches can be isolated without affecting the rest of the system.
8. Why is this module important?
Because stable and clean power distribution is essential for reliable operation of the entire excitation control system.
GE Fanuc IS200EPDMG1BAA Exciter Power Distribution Module is in stock. Please contact us for a quick quote and competitive pricing.
