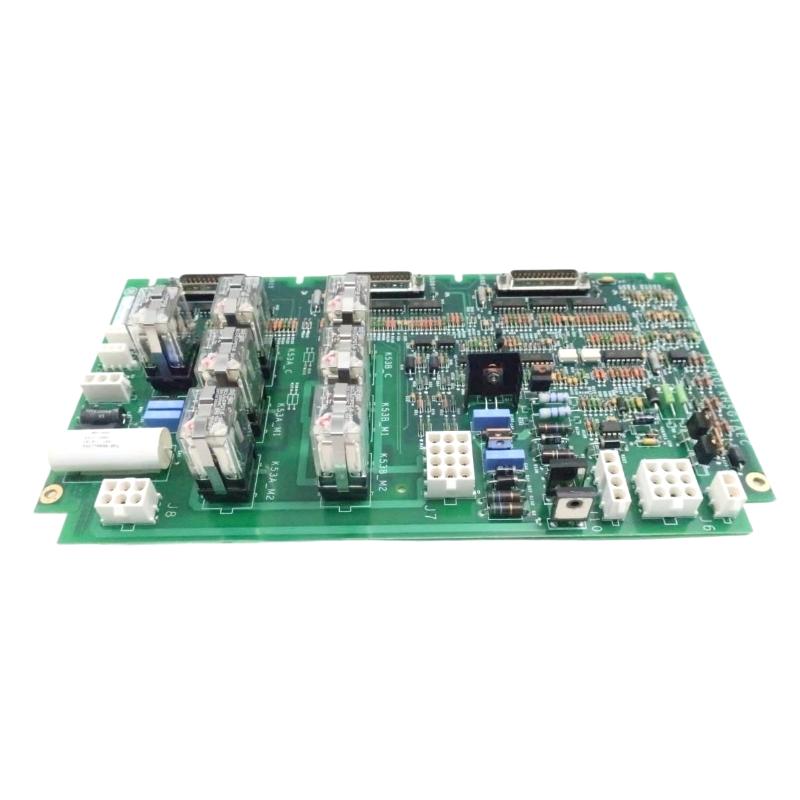

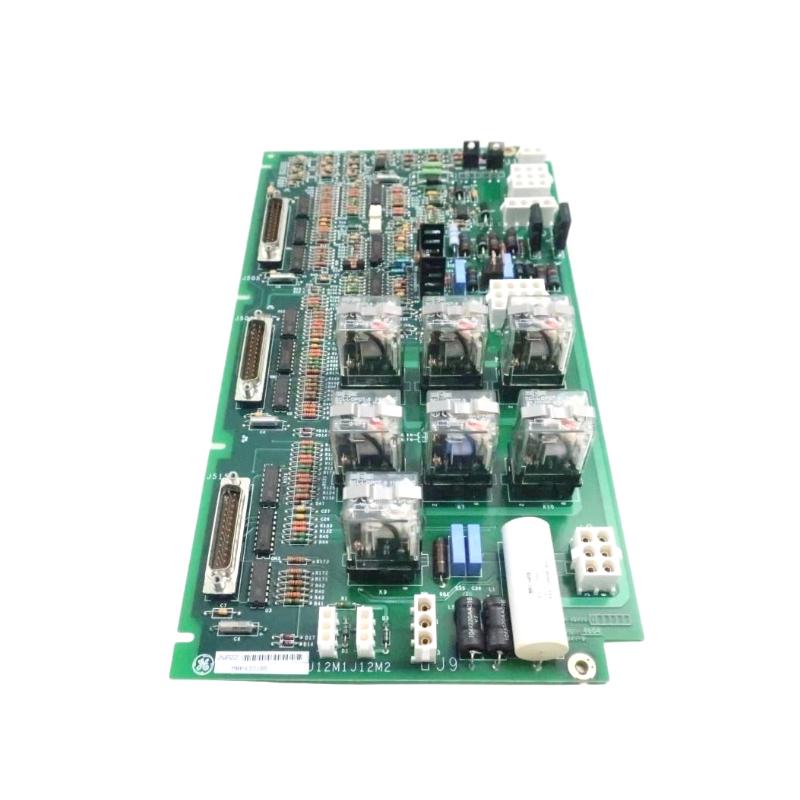

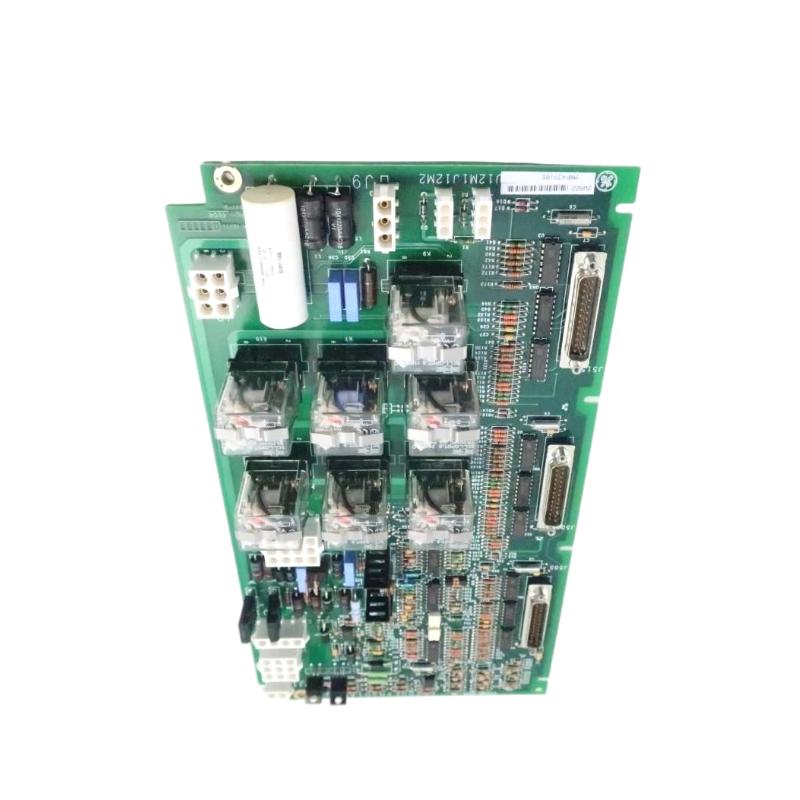

GE Fanuc IS200EXHSG3AEC Exciter High-Speed Relay Driver Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | IS200EXHSG3AEC |
| Series | GE EX2100 Excitation System / Mark VI Speedtronic |
| Product Type | Exciter High-Speed Relay Driver Board (EXHS) |
| System Application | Generator excitation and protection control system |
| Platform | EX2100 / Mark VI / Mark VIe architecture |
| Main Function | Provides high-speed relay driving for excitation control and protection switching |
| System Role | Relay actuation interface between control logic and field contactors |
| Controlled Devices | DC contactors, pilot relays, de-excitation and field flashing circuits |
| Input Signals | Logic-level commands from EMIO / control system |
| Output Function | Drives high-speed relay coils and switching contactors |
| Relay Channels | Multiple high-speed relay outputs (commonly 7–12 channels depending on revision) |
| Key Functions | Field flashing, de-excitation, crowbar control, excitation enable/disable |
| Signal Conditioning | Includes protection and transient suppression for relay driving |
| Communication | Internal EX2100 backplane communication |
| System Integration | Works with EMIO, ESEL, DSPX, EPDM, and terminal boards |
| Architecture Support | Supports simplex and TMR (triple modular redundant) systems |
| Isolation | Optical/electrical isolation between logic and relay drive circuits |
| Power Supply | 24 V DC (relay drive side) + 125 V DC (system dependent coil supply) |
| Board Type | Industrial relay driver PCB assembly |
| Mounting Type | 6U rack-mounted module in excitation cabinet |
| Diagnostics | LED status indicators for relay activity and board health |
| Operating Environment | Power plant turbine / generator excitation systems |
| Operating Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Standards | Industrial-grade surge and transient protection (IEEE protective relay class) |
| Dimensions (W × H × D) | Approx. 8.26 cm × 4.19 cm × 12.1 cm |
| Weight | Approx. 0.3–0.5 kg |
FAQ
1. What is IS200EXHSG3AEC used for?
It is used in GE EX2100 excitation systems as a high-speed relay driver board for controlling excitation-related switching operations.
2. What is its main function?
It drives relays and contactors used for field flashing, de-excitation, and excitation enable/disable control.
3. Which system is it compatible with?
It is designed for GE EX2100 and Mark VI/Mark VIe turbine control systems.
4. What types of devices does it control?
It controls DC contactors, pilot relays, and high-speed switching devices in the excitation system.
5. Does it directly control SCR firing?
No, SCR firing is handled by gate amplifier boards; this module controls relay-based switching functions.
6. What is its role in protection?
It supports protective actions such as de-excitation and crowbar-related switching through high-speed relay logic.
7. What architecture does it support?
It supports both simplex and triple modular redundant (TMR) excitation system configurations.
8. Why is this board important?
Because it handles fast relay switching needed for safe excitation control, system protection, and turbine-generator operational reliability.
