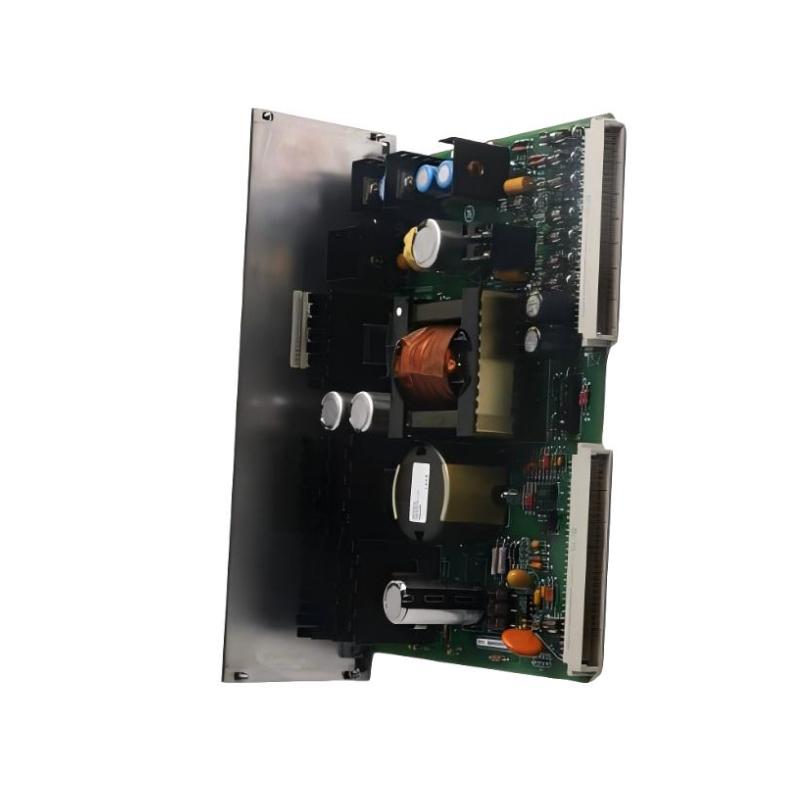

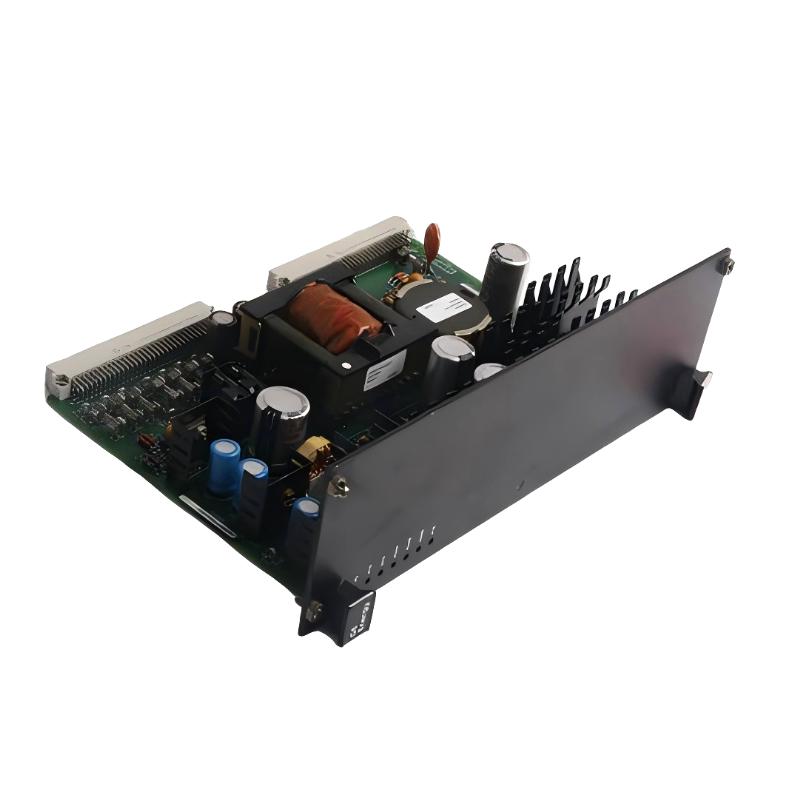

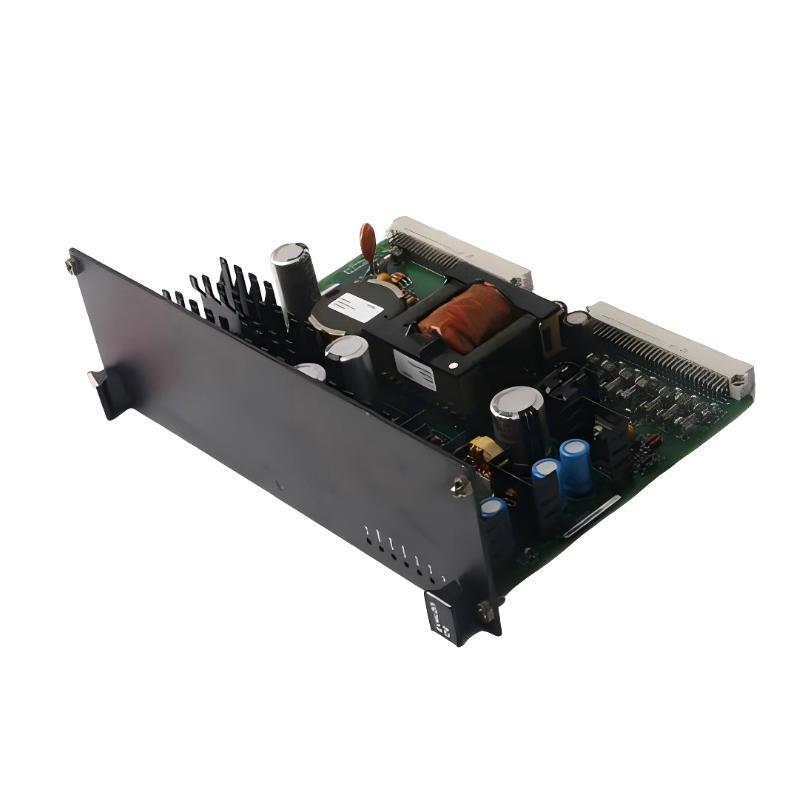

GE Fanuc IS200JPDMG1A DC Power Distribution and Monitoring Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200JPDMG1A |
| Manufacturer | GE Industrial Systems |
| Product Family | Mark VI Turbine Control System / EX2100 Excitation System |
| Product Type | DC Power Distribution and Monitoring Board |
| Module Type | JPDM Board |
| Function | Distributes DC power to control modules and I/O boards, monitors voltage and current levels, and provides protection features |
| Application | Turbine Control Systems, Generator Excitation Systems, Industrial Automation |
| Input Voltage | DC Power Supply Input |
| Output Voltage | Regulated DC Power to Control and I/O Modules |
| Power Distribution | Multiple Fused Channels with Current Monitoring |
| Protection Features | Overcurrent Protection, Short-Circuit Protection, Voltage Monitoring |
| Communication Interface | Backplane Monitoring Interface to Control System |
| Diagnostic Features | Real-Time Voltage and Current Monitoring, Fault Detection, Status Reporting |
| LED Indicators | Power On, Output Status, Fault Indicators |
| Connector Type | High-Density Backplane Connectors, Terminal Blocks |
| Mounting Type | Rack-Mounted Printed Circuit Board |
| Power Supply Source | External DC Supply via Backplane |
| System Compatibility | GE Mark VI and EX2100 Control Systems |
| Redundancy Support | Compatible with Redundant Power Architectures |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -30°C to +65°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | 241 × 160 × 25 mm |
| Weight | 0.55 kg |
| Typical Applications | Control system power distribution, excitation system support, turbine automation, industrial DC power management |
| Revision Level | G1A |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IS200JPDMG1A?
A1: The IS200JPDMG1A is a DC Power Distribution and Monitoring (JPDM) board used in GE Mark VI and EX2100 systems to distribute DC power to control modules and monitor the system’s electrical parameters.
Q2: What is the primary function of the module?
A2: Its primary function is to provide reliable DC power distribution, protect against overcurrent and short circuits, and monitor voltage and current to ensure proper system operation.
Q3: Which systems use the IS200JPDMG1A?
A3: The board is used in GE Mark VI turbine control systems and EX2100 excitation control platforms.
Q4: What types of monitoring does the module provide?
A4: It provides real-time voltage and current monitoring for each output channel and reports faults to the control system.
Q5: What protection features are included?
A5: The module includes overcurrent protection, short-circuit protection, fused outputs, and voltage monitoring for safe operation.
Q6: What diagnostic features are available?
A6: The JPDM board supports fault detection, status reporting, LED indicators for each channel, and real-time system monitoring.
Q7: What are the typical applications?
A7: Typical applications include control system power distribution, generator excitation system support, turbine automation, and industrial DC power management.
Q8: Is the IS200JPDMG1A still available?
A8: The IS200JPDMG1A is a legacy GE component. Refurbished, surplus, and replacement units are generally available through industrial automation suppliers.
GE Fanuc IS200JPDMG1A DC Power Distribution and Monitoring Board is in stock. Please contact us for a quick quote and competitive pricing.
