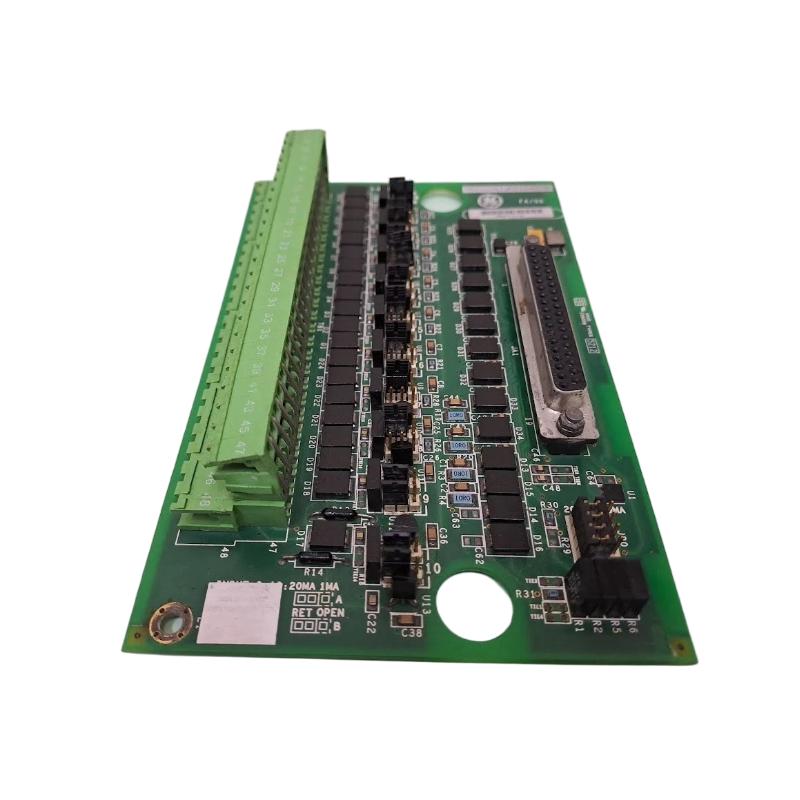

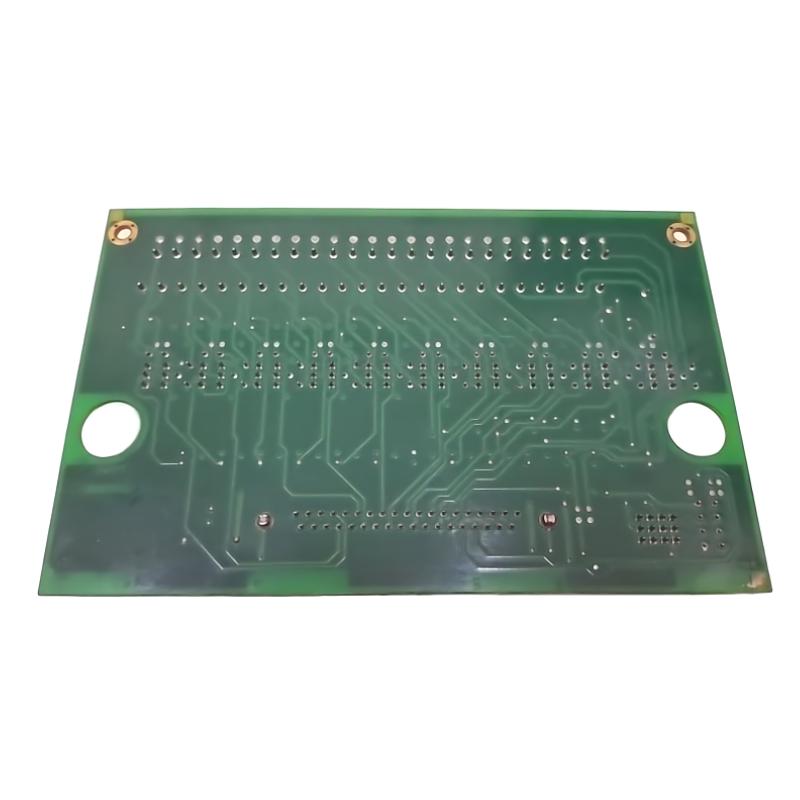

GE Fanuc IS200SSCAH2AGD Serial Communication I/O Terminal Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | IS200SSCAH2AGD |
| Series | GE Mark VI / Mark VIe Speedtronic |
| Product Type | Serial Communication I/O Terminal Board (SSCA) |
| System Application | Turbine-generator control and excitation system communication interface |
| Platform | Mark VI / Mark VIe architecture |
| Main Function | Provides multi-channel serial communication interface between controller and field devices |
| System Role | Communication terminal board for I/O pack (PSCA/SSCA system) |
| Communication Channels | 6 independent serial channels |
| Supported Protocols | RS-232C / RS-422 / RS-485 |
| Signal Terminals | A, B, C, D, RET, SCOM per channel |
| Key Function | Signal routing, termination, and interface for serial communication networks |
| System Integration | Works with PSCA I/O pack and Mark VI/Mark VIe controllers |
| Architecture Support | Supports simplex and redundant turbine control systems |
| Installation Type | DIN-rail or cabinet-mounted terminal board |
| Terminal Capacity | 48-point screw/plug-in terminal block |
| Signal Conditioning | Includes selectable termination resistors via jumpers |
| Identification | Onboard ID chip for hardware verification and compatibility check |
| Power Supply | Supplied via I/O pack (no standalone power input) |
| Isolation | Electrical isolation through I/O pack interface |
| Diagnostics | ID mismatch detection, channel configuration verification |
| Board Type | Industrial communication terminal PCB |
| Mounting Type | Cabinet-mounted / DIN rail assembly |
| Operating Environment | Power plant turbine / generator control systems |
| Operating Temperature | -30°C to +65°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 15.9 cm × 10.2 cm × ~5 cm |
| Weight | Approx. 0.2–0.35 kg |
FAQ
1. What is IS200SSCAH2AGD used for?
It is used as a serial communication terminal board in GE Mark VI / Mark VIe systems to connect field devices via RS-232, RS-422, or RS-485 communication.
2. What is its main function?
It provides six configurable serial communication channels and handles signal termination and routing for reliable data transmission.
3. Which system is it compatible with?
It is designed for GE Mark VI and Mark VIe turbine and excitation control systems.
4. What communication protocols does it support?
It supports RS-232C, RS-422, and RS-485 serial communication standards.
5. What is the role of the I/O pack?
The PSCA I/O pack interfaces this terminal board with the controller via Ethernet and handles signal processing.
6. Does it contain active processing logic?
No, it is a passive terminal board; communication processing is handled by the I/O pack.
7. What is the ID chip for?
It ensures correct hardware identification and prevents mismatched board installation errors.
8. Why is this board important?
Because it enables reliable serial communication between the control system and field equipment, which is critical for turbine control and monitoring.
GE Fanuc IS200SSCAH2AGD Serial Communication I/O Terminal Board is in stock. Please contact us for a quick quote and competitive pricing.
