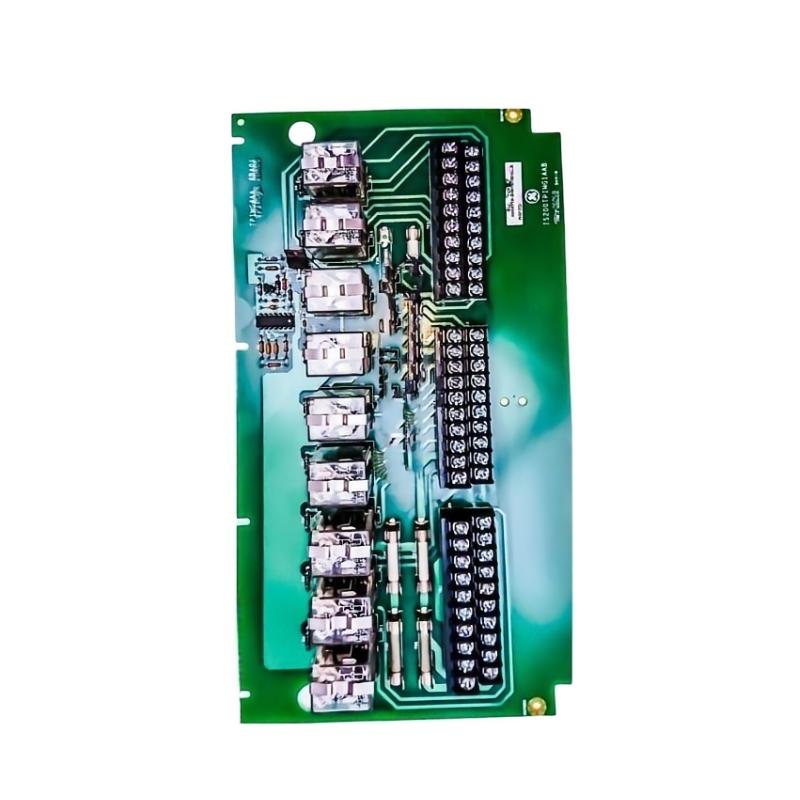

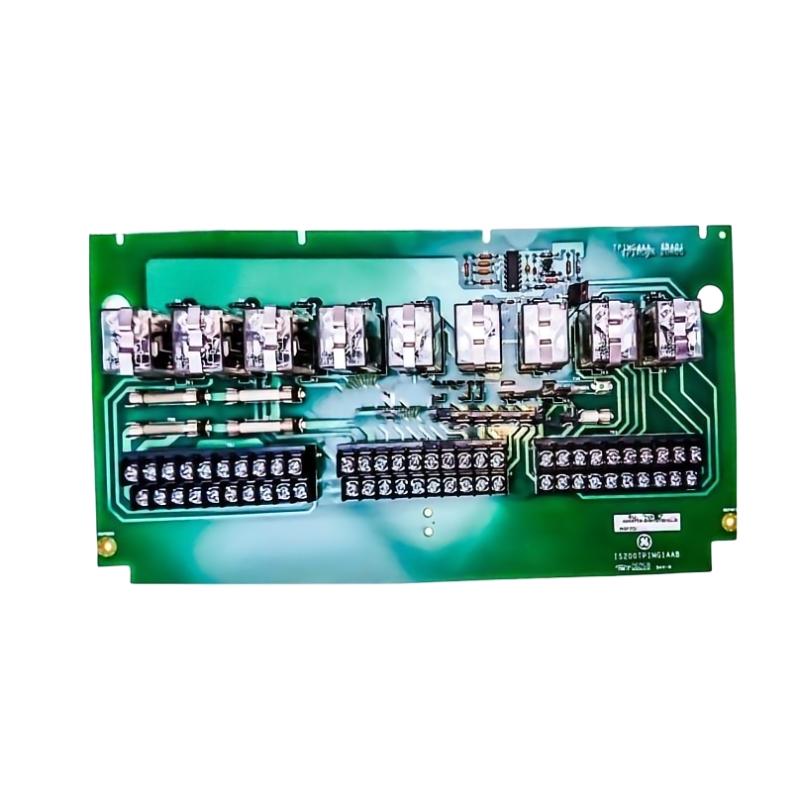

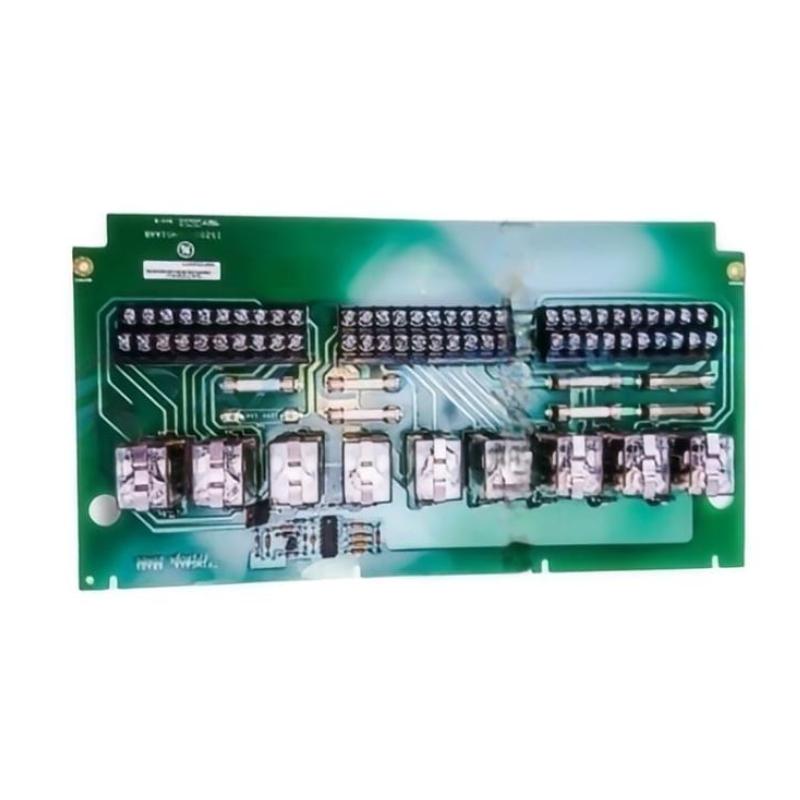

GE Fanuc IS200TPIMG1A Pulse Input Terminal Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200TPIMG1A |
| Manufacturer | GE Industrial Systems |
| Product Family | Mark VI Turbine Control System |
| Product Type | Pulse Input Terminal Board |
| Module Type | TPIM Board |
| Function | Provides field wiring termination and interface for pulse, frequency, and speed input signals to the Mark VI control system |
| Application | Gas Turbine Control, Steam Turbine Control, Generator Monitoring, Industrial Automation |
| Input Signals | Pulse Inputs, Frequency Signals, Magnetic Pickup (MPU) Signals, Proximity Probe Speed Signals |
| Signal Types | Digital Pulse, Frequency, Speed Reference Signals |
| Input Channels | Multiple Pulse/Frequency Input Channels |
| Signal Conditioning | Signal Routing, Noise Filtering, Pulse Shaping Support |
| Measurement Functions | Speed Monitoring, Frequency Measurement, Rotor Position Monitoring |
| Communication Interface | Interface to Associated Pulse Input Processing Modules |
| Isolation Type | Galvanic Isolation Through Connected Electronics |
| Diagnostic Features | Signal Integrity Monitoring, Wiring Verification, Input Status Monitoring |
| Connector Type | Euro-Style Terminal Blocks and High-Density Connectors |
| Mounting Type | DIN Rail or Panel Mounted Terminal Board |
| Power Supply | Supplied Through Associated I/O Modules |
| System Compatibility | GE Mark VI Turbine and Generator Control Systems |
| Redundancy Support | Compatible with Simplex and Redundant Architectures |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -30°C to +65°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | 240 × 160 × 40 mm |
| Weight | 0.70 kg |
| Typical Applications | Turbine Speed Monitoring, Generator Frequency Measurement, Rotor Position Detection, Overspeed Protection Systems |
| Revision Level | G1A |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IS200TPIMG1A?
A1: The IS200TPIMG1A is a Pulse Input Terminal Board used in GE Mark VI systems to interface pulse, frequency, and speed-related signals from field devices to the control system.
Q2: What is the primary function of the board?
A2: Its primary function is to provide field wiring termination and signal routing for pulse and frequency inputs used in speed and position monitoring applications.
Q3: Which systems use the IS200TPIMG1A?
A3: The board is used in GE Mark VI turbine and generator control systems.
Q4: What types of signals are supported?
A4: The board supports pulse inputs, frequency signals, magnetic pickup (MPU) signals, and speed reference signals.
Q5: Does the board process speed calculations?
A5: No. The board provides signal termination and routing. Signal processing and speed calculations are performed by the associated Mark VI I/O modules and controllers.
Q6: What diagnostic features are available?
A6: Features include signal integrity monitoring, wiring verification, and input status monitoring through the connected control electronics.
Q7: What are the typical applications?
A7: Typical applications include turbine speed monitoring, generator frequency measurement, rotor position sensing, and overspeed protection systems.
Q8: Is the IS200TPIMG1A still available?
A8: The IS200TPIMG1A is a legacy GE component. Refurbished, surplus, and replacement units are generally available through industrial automation suppliers.
GE Fanuc IS200TPIMG1A Pulse Input Terminal Board is in stock. Please contact us for a quick quote and competitive pricing.
